HP Pavilion dv7t-7000 CD Drive Replacement

Geschrieben von: Nabin Bhatta
  • Kommentare: 0
HP Pavilion dv7t-7000 CD Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

This guide will show you how to replace the CD drive on a HP Pavilion dv7t-7000 laptop.

  1. kYdpTiR1c1orUnDn

    • Turn the computer off and disconnect if from all power sources.

  2. AvXxwjFFQkZkxiJr

    • Slide the battery release switch to the left.

  3. EEAUpsH6fFrvnTjV

    • Hold the release switch all of the way to the left and your other hand to pull the battery out.

  4. o1ohOsCEGFMsQhZs

    • Unscrew the single Phillips #00 screw.

    • Screw will not come out, it is connected to the panel

  5. VoKGmu2gBdf5HGTp
    VoKGmu2gBdf5HGTp
    C4l3BPrKPTJEjxJQ

    • Remove service hatch by sliding away from the computer and lifting up.

  6. Q3OIW1JLhNnIIwPE
    Q3OIW1JLhNnIIwPE
    3viuwrhMamMIVlZO

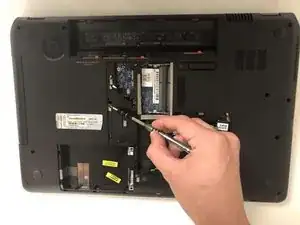

    • Remove the single Phillips #00 screw.

  7. YhAjWKoL5ADkmInU
    YhAjWKoL5ADkmInU
    Escg2MICeRURZS6q

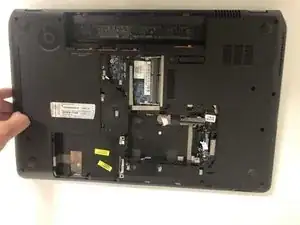

    • Pull CD drive out to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
