HP Pavilion dv7t-7000 Hard Drive Replacement

Geschrieben von: Gavin Loera
  • Kommentare: 0
HP Pavilion dv7t-7000 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

A guide to replace the hard drive on the HP Pavilion dv7t-7000.

  1. kYdpTiR1c1orUnDn

    • Turn the computer off and disconnect if from all power sources.

  2. AvXxwjFFQkZkxiJr

    • Slide the battery release switch to the left.

  3. EEAUpsH6fFrvnTjV

    • Hold the release switch all of the way to the left and your other hand to pull the battery out.

  4. o1ohOsCEGFMsQhZs

    • Unscrew the single Phillips #00 screw.

    • Screw will not come out, it is connected to the panel

  5. VoKGmu2gBdf5HGTp
    VoKGmu2gBdf5HGTp
    C4l3BPrKPTJEjxJQ

    • Remove service hatch by sliding away from the computer and lifting up.

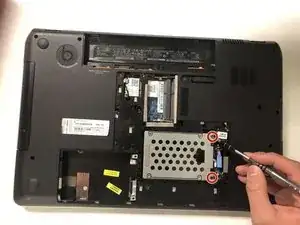

  6. JsXAApQYQv5jxMjH

    • Remove the two Phillips #00 screws holding in the hard drive.

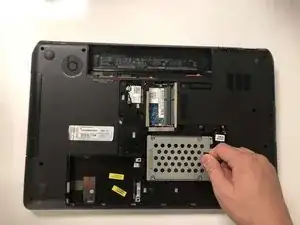

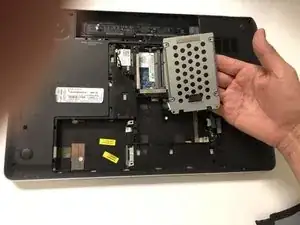

  7. DyAdiVsLpjnDJsfp
    DyAdiVsLpjnDJsfp
    kTPRlsAvrtEdi6ox

    • Grab the black tab on the hard drive and pull left and then upwards to remove.

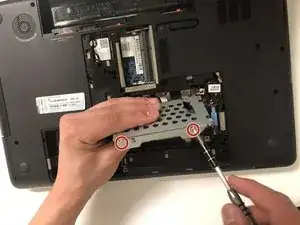

  8. I2njQDf4gFvORuN2

    • Remove the four Phillips #00 screws holding the hard drive to its case.

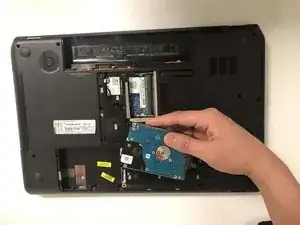

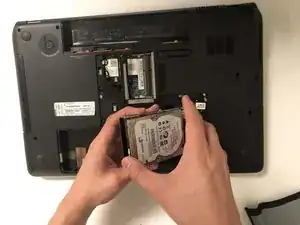

  9. mSIabli6CoZhmbhF
    mSIabli6CoZhmbhF
    mWjRZNggnvOYLn4r

    • Slide the casing off of the hard drive.

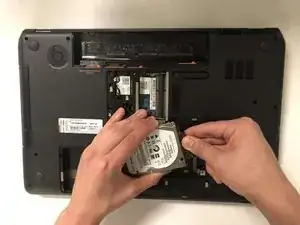

  10. ExtHPiR3rtUTXllw

    • Unplug the hard drive from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
