HP Pavilion dv7t-7000 Palm Rest Replacement

Geschrieben von: Afnan
  • Kommentare: 1
HP Pavilion dv7t-7000 Palm Rest Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

15 - 25 Minuten

Einleitung

A guide on how to replace the palm rest on a HP Pavilion dv7t-7000 laptop.

  1. kYdpTiR1c1orUnDn

    • Turn the computer off and disconnect if from all power sources.

  2. AvXxwjFFQkZkxiJr

    • Slide the battery release switch to the left.

  3. EEAUpsH6fFrvnTjV

    • Hold the release switch all of the way to the left and your other hand to pull the battery out.

  4. o1ohOsCEGFMsQhZs

    • Unscrew the single Phillips #00 screw.

    • Screw will not come out, it is connected to the panel

  5. VoKGmu2gBdf5HGTp
    VoKGmu2gBdf5HGTp
    C4l3BPrKPTJEjxJQ

    • Remove service hatch by sliding away from the computer and lifting up.

  6. ALxSwKBX6GCracft
    ALxSwKBX6GCracft
    jm6udfWuqnmaxgQL

    • Push the retraining springs away from the RAM at the same time to unlock the RAM.

  7. GUttboMafXjiYsVj
    GUttboMafXjiYsVj
    wOo54XD1wecAvP25

    • Pull the RAM out.

    • Follow the same procedure for the additional RAM.

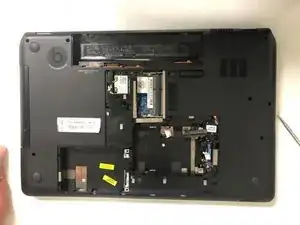

  8. sYI3FLBHFgAjnGxa
    sYI3FLBHFgAjnGxa
    FUPcgY3FLOgjUmvH

    • Use the flat end of a spudger to pop off the antenna connectors.

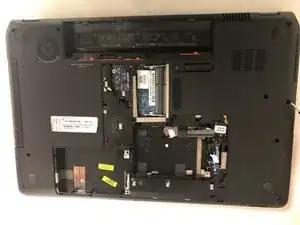

  9. CHDmq6kOwFUHTKnE
    CHDmq6kOwFUHTKnE
    12NWuWWNNXUJmWa2
    avG3dCKacDPaDxuN

    • Remove single Phillips #00 screw.

    • Pull the card out by hand.

  10. JVOsoPwFZq5jfDYK
    JVOsoPwFZq5jfDYK
    CVumHbRINxrJ2GVf

    • Remove the single Phillips #00 screw.

    • Flip the laptop over.

  11. x6PZVFAv3ob2TxYQ
    x6PZVFAv3ob2TxYQ
    MKskSxoR3ndZfJVE
    VYTWCLkW1KyA3bQ1

    • Wedge a spudger in between the keyboard and the upper bezel (nearest the screen).

    • Pry upward to release the keyboard clips.

    • The keyboard is plugged into the motherboard, so be careful not to pull out while lifting keyboard.

    The keyboard on mine had retaining studs on the palm rest side. Removing according to these directions broke the keyboard.

    Some keyboards may not have these.

    Peter K -

  12. qhXZqjeFQPee3NlG

    • Use the flat end of a spudger to flip up the black tab on the ZIF connectors.

    • Pull the ribbon cables out of the ZIF connectors.

    • Remove the keyboard.

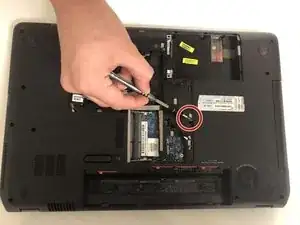

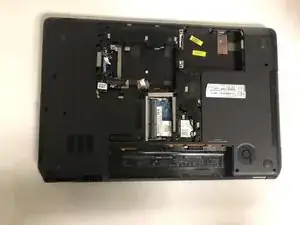

  13. aafTYNNWMi1FPLI5
    aafTYNNWMi1FPLI5
    6wKBPXcR1LcBOtqN
    ccowuO4IUJQ3Jhlb

    • Flip the keyboard back over.

    • Remove the single Phillips #00 screw holding in the CD drive.

    • Pull out the CD drive.

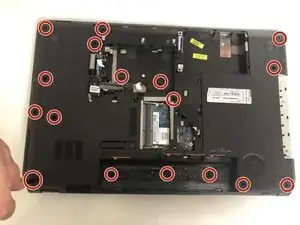

  14. pOIjHRw3bQaGuY6H

    • Remove the seventeen Phillips #00 screws securing the back panel to the laptop.

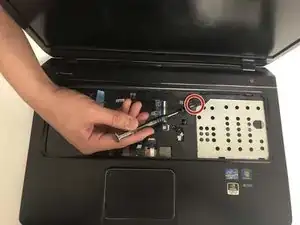

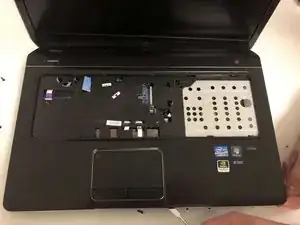

  15. dcrjKdiTWWCvbZt2
    dcrjKdiTWWCvbZt2
    SLqZ2kdQS32rtjnc

    • Flip the laptop over.

    • Remove the single Phillips #00 screw.

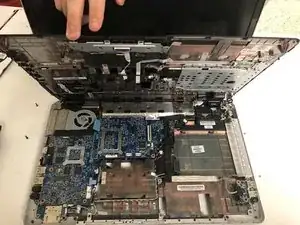

  16. sPOmOrQDKT1HTZCi

    • Remove the panel by lifting it up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
