HP Pavilion dv7t-7000 RAM Replacement

Geschrieben von: Afnan
  • Kommentare: 0
HP Pavilion dv7t-7000 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

2 Minuten

Einleitung

This is a RAM replacement for HP Pavilion dv7t-7000.

  1. kYdpTiR1c1orUnDn

    • Turn the computer off and disconnect if from all power sources.

  2. AvXxwjFFQkZkxiJr

    • Slide the battery release switch to the left.

  3. EEAUpsH6fFrvnTjV

    • Hold the release switch all of the way to the left and your other hand to pull the battery out.

  4. o1ohOsCEGFMsQhZs

    • Unscrew the single Phillips #00 screw.

    • Screw will not come out, it is connected to the panel

  5. VoKGmu2gBdf5HGTp
    VoKGmu2gBdf5HGTp
    C4l3BPrKPTJEjxJQ

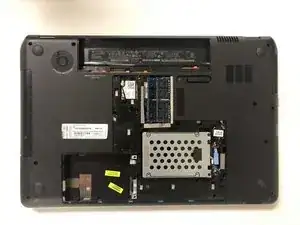

    • Remove service hatch by sliding away from the computer and lifting up.

  6. ALxSwKBX6GCracft
    ALxSwKBX6GCracft
    jm6udfWuqnmaxgQL

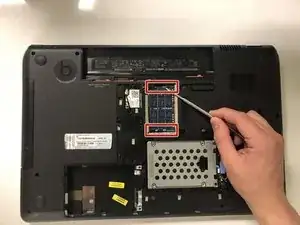

    • Push the retraining springs away from the RAM at the same time to unlock the RAM.

  7. GUttboMafXjiYsVj
    GUttboMafXjiYsVj
    wOo54XD1wecAvP25

    • Pull the RAM out.

    • Follow the same procedure for the additional RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
