Einleitung

After we have had a computer for a while, we notice that it starts to slow down. When a computer slows down, it could be caused by many issues. If the computer is an older model, the sluggish symptoms may be cured by upgrading the system's RAM. Finding and accessing the RAM can be difficult, but this guide ensures ease of access.

  1. ngKPr1I3DZ3aXGKx
    • Turn the laptop over to expose the bottom side.

    • Locate the battery removal switch next to the battery compartment

    • Important: Before doing any repairs on the laptop, make sure it is completely powered down and unplugged.

  2. UhMRZS6eUPYhyISN
    UhMRZS6eUPYhyISN
    Q5JBApQVKX6ZWGSZ
    • Slide the switch all the way to the left to release the battery. The battery should pop up.

    • Lift the battery out.

  3. OpAx3X6ujaaLpNGM
    OpAx3X6ujaaLpNGM
    GOsJCH5V1vVR1FsW
    HQKPMCPot4E2Dbdm

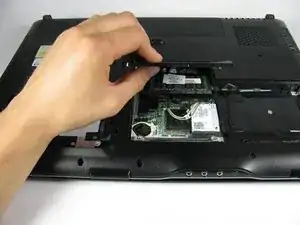

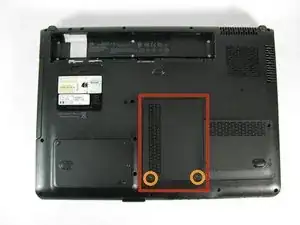

    • Locate the middle plastic cover on the bottom of the laptop.

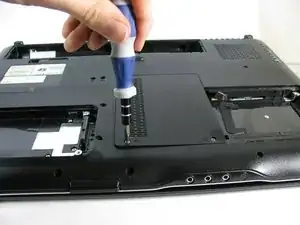

    • Unscrew the two 5mm screws using a Phillips #1 screwdriver. The screws should remain in the plastic cover.

    • Lift and remove the plastic cover.

  4. SVBNhPHgTBEVm2TF
    SVBNhPHgTBEVm2TF
    EsmUULhZNkP1yPZF
    25F3rXZ3eYxWwYGd

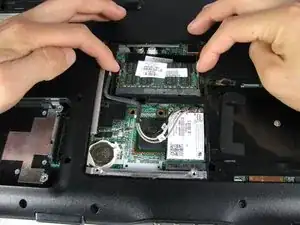

    • Locate the RAM card and the metal tabs on either side of it.

    • Press both tabs away from the RAM card to release it. The card should flip up towards you.

    • Carefully lift the RAM card out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
