HP Pavilion g4-1117dx Fan Replacement

Geschrieben von: Robert Hamilton
  • Kommentare: 1
HP Pavilion g4-1117dx Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

10 Minuten

Einleitung

The fan is one of the more tedious components of your device to remove. It has several prerequisite guides, but when you get to the fan, it is very easy to remove.

  1. 5Gf6GkSkNFHKAZ1P

    • Slide pill shaped tab to the other side of the channel.

    • Remove battery while keeping the tab to the side.

  3. iGQnQkjuGck6gqVd

    • Unscrew the two screws JIS #0 located on opposites sides of the panel.

    • Screws are attached to the panel and will not fully come out.

  4. CajCQVKQACgfTLpV

    • Carefully pry off the L-shaped panel.

  5. kr6OwKnFjN6J5drG

    • Pull out and unplug the tab on the right hand side.

    Purchase new hard diskđź’˝

    Demo Account -

  6. yuGfZpdmJRvLdvFg

    • Unscrew all nine 6.0mm JIS #0 screws located on the border of the back panel.

  7. fXTg4SVQHnr62IVe

    • Remove 3 screws located where the battery previously was.

  8. wDHf4lEFDYTO4TNZ
    wDHf4lEFDYTO4TNZ
    GUkcTKYe6K1EB3fj

    • Remove 6 screws located under the spot where the smaller L-shaped panel was located.

  9. JwToJOMjWTP3HL1F

    • Slowly pry off the keyboard from the back panel.

    • Between the back panel and the keyboard there are two ribbon wires.

    • Remove slowly to not break the back panel. If it does not come off easily, check to see if all screws are removed.

  10. klhtUorMNQkF3jrJ

    • Unplug wires connecting back panel to keyboard.

  11. UJDuOZHqYHdwLE1m
    UJDuOZHqYHdwLE1m
    notiSvHA2lflvYTC

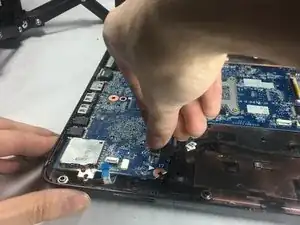

    • In lower left hand corner, pull on black tab to unplug the disc drive.

  12. NdKuvOsxRcMIrOsO
    NdKuvOsxRcMIrOsO
    iiSmwWrLyQxvtGAP

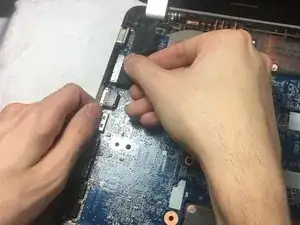

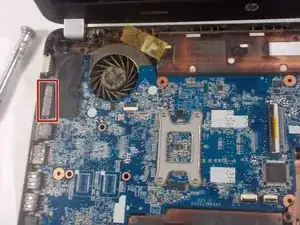

    • In upper left hand corner, unplug the large black electrical tape covered laptop plug.

  13. FKncLX2RZSmdPjet
    FKncLX2RZSmdPjet
    iw5ZRhK2NxluvLQx

    • Unscrew the four screws JIS #0 screws on the back side of the motherboard.

    • Screws will loosen but do not come completely out.

    • The screws are the only thing keeping the fan attached to the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
