HP Pavilion g4-1117dx Larger Back Panel Replacement

Geschrieben von: Robert Hamilton
  • Kommentare: 0
HP Pavilion g4-1117dx Larger Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

3 - 5 Minuten

Einleitung

The large back panel contains a lot of screws that help keep it in tact. It covers and protects the majority of your device's insides. It can be somewhat tricky to remove.

  1. 5Gf6GkSkNFHKAZ1P

    • Slide pill shaped tab to the other side of the channel.

    • Remove battery while keeping the tab to the side.

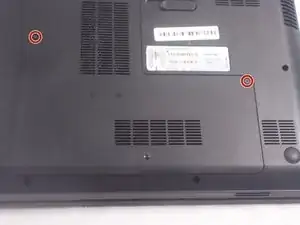

  3. iGQnQkjuGck6gqVd

    • Unscrew the two screws JIS #0 located on opposites sides of the panel.

    • Screws are attached to the panel and will not fully come out.

  4. CajCQVKQACgfTLpV

    • Carefully pry off the L-shaped panel.

  5. yuGfZpdmJRvLdvFg

    • Unscrew all nine 6.0mm JIS #0 screws located on the border of the back panel.

  6. fXTg4SVQHnr62IVe

    • Remove 3 screws located where the battery previously was.

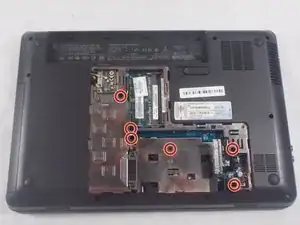

  7. wDHf4lEFDYTO4TNZ
    wDHf4lEFDYTO4TNZ

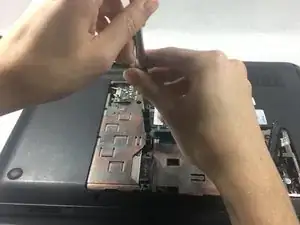

    GUkcTKYe6K1EB3fj

    • Remove 6 screws located under the spot where the smaller L-shaped panel was located.

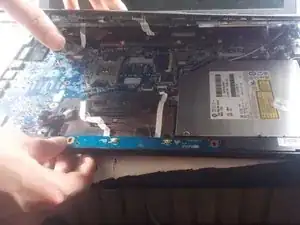

  8. JwToJOMjWTP3HL1F

    • Slowly pry off the keyboard from the back panel.

    • Between the back panel and the keyboard there are two ribbon wires.

    • Remove slowly to not break the back panel. If it does not come off easily, check to see if all screws are removed.

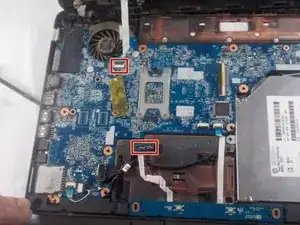

  9. klhtUorMNQkF3jrJ

    • Unplug wires connecting back panel to keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
