HP Pavilion g4-1117dx Speaker Replacement

Geschrieben von: Robert Hamilton
  • Kommentare: 1
HP Pavilion g4-1117dx Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

1 - 2 Minuten

Einleitung

The speakers are relatively easy to remove. There are no screws. All you need to do is disconnect a wire and pull.

  1. 5Gf6GkSkNFHKAZ1P

    • Slide pill shaped tab to the other side of the channel.

    • Remove battery while keeping the tab to the side.

  3. iGQnQkjuGck6gqVd

    • Unscrew the two screws JIS #0 located on opposites sides of the panel.

    • Screws are attached to the panel and will not fully come out.

  4. CajCQVKQACgfTLpV

    • Carefully pry off the L-shaped panel.

  5. kr6OwKnFjN6J5drG

    • Pull out and unplug the tab on the right hand side.

    Purchase new hard diskđź’˝

    Demo Account -

  6. yuGfZpdmJRvLdvFg

    • Unscrew all nine 6.0mm JIS #0 screws located on the border of the back panel.

  7. fXTg4SVQHnr62IVe

    • Remove 3 screws located where the battery previously was.

  8. wDHf4lEFDYTO4TNZ
    wDHf4lEFDYTO4TNZ
    GUkcTKYe6K1EB3fj

    • Remove 6 screws located under the spot where the smaller L-shaped panel was located.

  9. JwToJOMjWTP3HL1F

    • Slowly pry off the keyboard from the back panel.

    • Between the back panel and the keyboard there are two ribbon wires.

    • Remove slowly to not break the back panel. If it does not come off easily, check to see if all screws are removed.

  10. klhtUorMNQkF3jrJ

    • Unplug wires connecting back panel to keyboard.

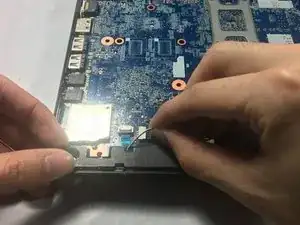

  11. IyNINn5UPihgLVlX
    IyNINn5UPihgLVlX
    CqWFSdb3ZteLF5w2

    • Unplug the red and white wires.

  12. GUhmta6TYROKMMRw

    • Remove the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
