HP Pavilion g6-1b79dx Keyboard Replacement

Geschrieben von: patrickhall
  • Kommentare: 0
HP Pavilion g6-1b79dx Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

7 - 10 Minuten

Einleitung

Components below the laptop need to be removed before you can detach the keyboard. This is a guide to remove your laptop's keyboard.

  1. RgoVK3jGc4KjLV2l

    • Flip the computer so the bottom is facing up with the battery away from you.

    • Turn off the computer and disconnect the charger.

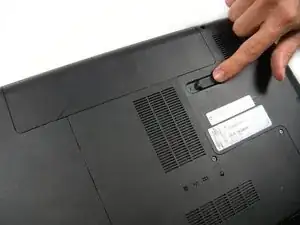

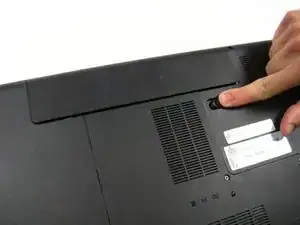

  2. PW1oyuF4XddafYwC
    PW1oyuF4XddafYwC
    oiIC3BNKBWQgN2CK

    • Slide the battery switch to the left until the battery unlatches from the base of the laptop.

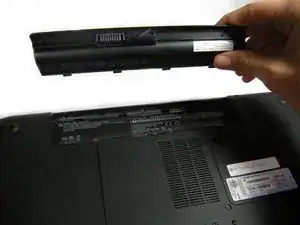

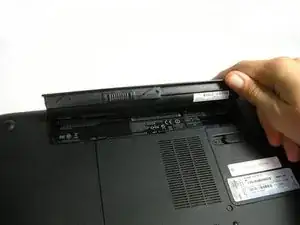

  3. 1KO4MyJIceUQEYmb
    1KO4MyJIceUQEYmb
    DgDFukGwYpnaBZEW

    • Lift the battery from its compartment away from the laptop.

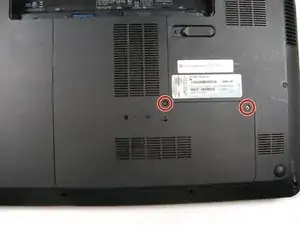

  4. TDia4KUWaxW52mGe

    • Loosen the two 5.7 mm screws on the bottom panel using a PH00 screwdriver.

    • The screws do not come out of the panel due to small washers. Do not try to remove the screws completely.

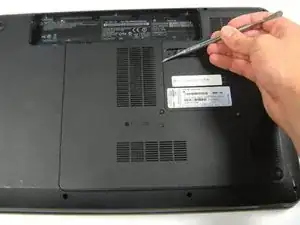

  5. CO5WH3bo3MfT2EBL

    • Use the metal spudger all around the panel to pop it up from the base.

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The regular black nylon spudger or a plastic opening tool should be used whenever possible.

    • Using your finger is acceptable but not entirely recommended. Be gentle if you choose to use your hands.

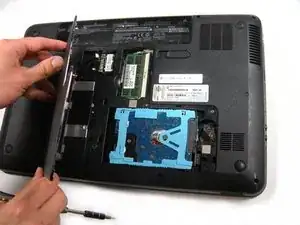

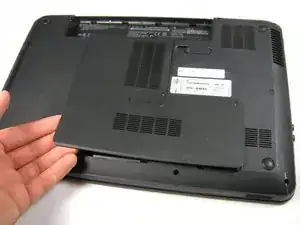

  6. DkZFZqYduEItOJgT
    DkZFZqYduEItOJgT
    rpssMvW1KxBxxLRE
    DaIyNJQwWsOUGHO4

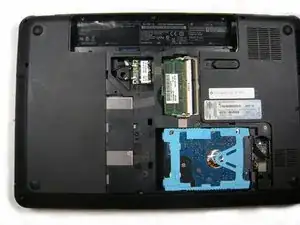

    • With your hands, lift the panel completely off the base of the laptop.

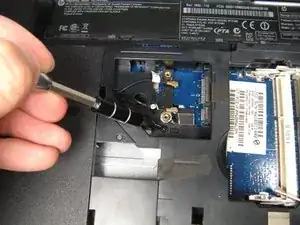

  7. qwNDsqGoYK2qAR6j

    • Using a PH 00 screwdriver, remove the screw located next to the wireless card.

    • You can remove the wireless card for this process but it is not necessary.

    • This screw has a small keyboard icon next to it.

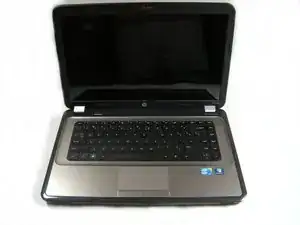

  8. w1JFDnUIR1db2CyY

    • Flip the laptop over and open it.

    • The components beneath your computer may be loose and fall out when you flip the laptop. Be careful when turning it over.

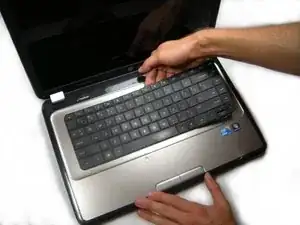

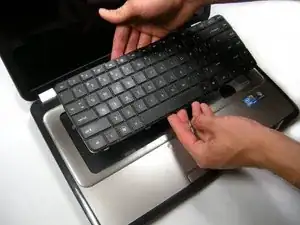

  9. wuPYOHWpySfQEbrW
    wuPYOHWpySfQEbrW
    ngDxjHVV4WTUghpk
    wsQhhXAgHPTjSHKB

    • Insert a plastic spudger or similar pry tool, beneath the keyboard, near the "insert" key, and pop the keyboard up from the laptop.

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The regular black nylon spudger or a plastic opening tool should be used whenever possible.

    • Starting at the opening you just created, run your fingers around the outside of the keyboard separating it from the rest of the computer.

    • Only lift the keyboard up a few inches because it is attached to the laptop by a ribbon cable.

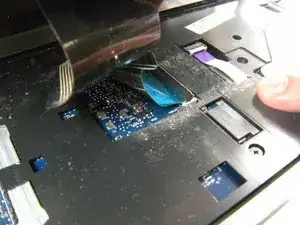

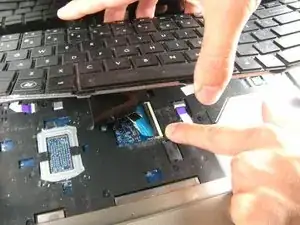

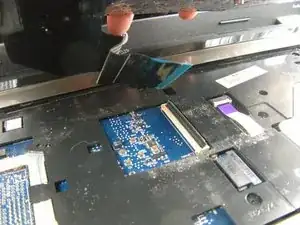

  10. CyN62RYECTJY3UO5
    CyN62RYECTJY3UO5
    drukCbfTH33M46Ti
    OE3pXgpIjM4rtv3C

    • Slightly angle the keyboard back so the ribbon connector underneath it is visible.

    • Remove the ribbon cable by using your fingers to pull up and away from the connector.

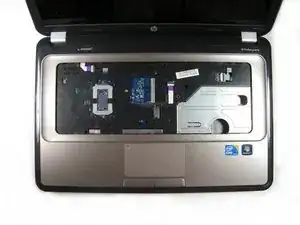

  11. 3r66oXXdK5hXWCRV

    • With the ribbon cable detached, you can now completely remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
