To remove the laptop's speakers, many components within the laptop need to be removed. This is a guide to do so.

  1. RgoVK3jGc4KjLV2l
    • Flip the computer so the bottom is facing up with the battery away from you.

    • Turn off the computer and disconnect the charger.

  2. PW1oyuF4XddafYwC
    PW1oyuF4XddafYwC
    oiIC3BNKBWQgN2CK
    • Slide the battery switch to the left until the battery unlatches from the base of the laptop.

  3. 1KO4MyJIceUQEYmb
    1KO4MyJIceUQEYmb
    DgDFukGwYpnaBZEW
    • Lift the battery from its compartment away from the laptop.

  4. TDia4KUWaxW52mGe
    • Loosen the two 5.7 mm screws on the bottom panel using a PH00 screwdriver.

    • The screws do not come out of the panel due to small washers. Do not try to remove the screws completely.

  5. CO5WH3bo3MfT2EBL
    • Use the metal spudger all around the panel to pop it up from the base.

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The regular black nylon spudger or a plastic opening tool should be used whenever possible.

    • Using your finger is acceptable but not entirely recommended. Be gentle if you choose to use your hands.

  6. DkZFZqYduEItOJgT
    DkZFZqYduEItOJgT
    rpssMvW1KxBxxLRE
    DaIyNJQwWsOUGHO4
    • With your hands, lift the panel completely off the base of the laptop.

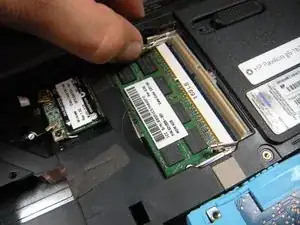

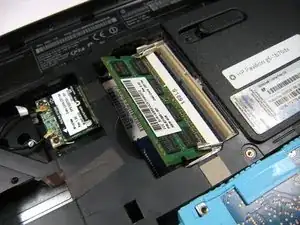

  7. SGEATjXh5UGgrTgb
    SGEATjXh5UGgrTgb
    XFgQIqZTX4mCUZMB
    hmKLHDBJF3fKFWml

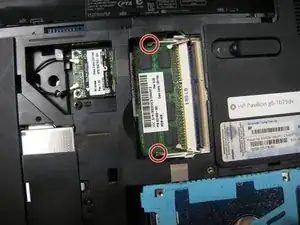

    • Slide the two latches away from the RAM to unhook it.

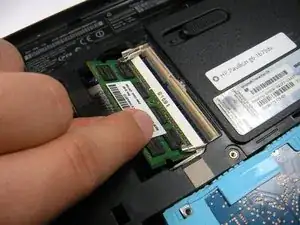

  8. mrJWZWg1oNeUBOYl
    mrJWZWg1oNeUBOYl
    CF5nBUPIeMROGGIK
    MgyTN6bGLVJuGGYC

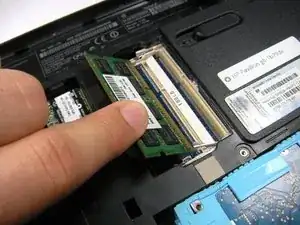

    • Gently slide the RAM out from the laptop.

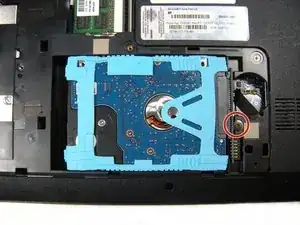

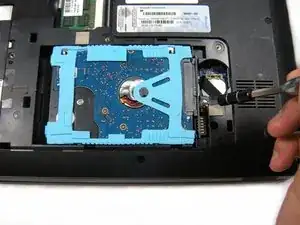

  9. JxtNyCvOHSsXmqmm
    JxtNyCvOHSsXmqmm
    eMGiZ6rqiyjGuswf
    • Use the PH 00 screwdriver to unscrew the 2.5 mm screw to the right of the hard drive.

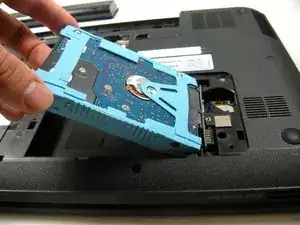

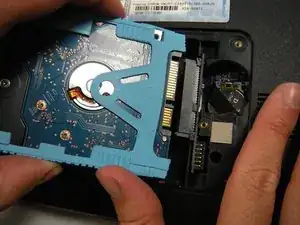

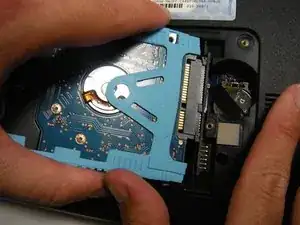

  10. AI3dRgwpdUUIjQup
    AI3dRgwpdUUIjQup
    AFZKJkCRObZEQfZo
    aEGmFDgVDmfuPHEN
    • Pull the triangular blue tab to diconnect and remove the hard drive. You can see the word 'Pull' on the cover.

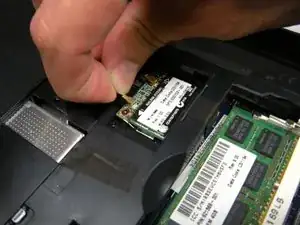

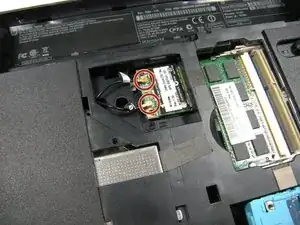

  11. 21vofLRDfE1QRsZx
    21vofLRDfE1QRsZx
    kb3YGt4XfObRxaNU
    GlJTgpF4P3qq5ryg

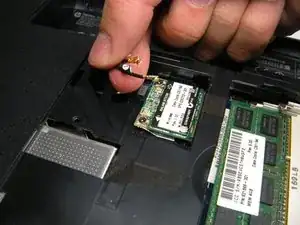

    • Unlatch the two antenna cable connectors from the wireless card.

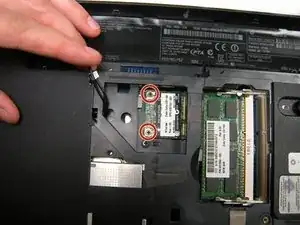

  12. RPamimgrOyJkvFfE
    • Remove the two 2.5 mm screws in the wireless card with a PH00 screwdriver.

    • You may have to gently bend the cables away from the wireless card to remove the screws

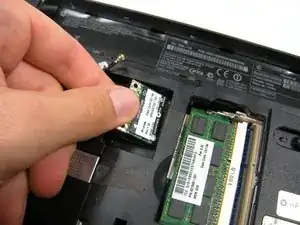

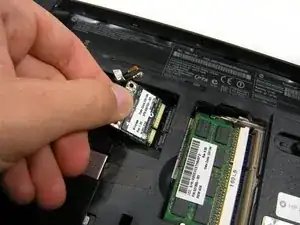

  13. OhVGmSoRvmRPNNST
    OhVGmSoRvmRPNNST
    Ko5dEfNFFCZfBbha
    nNkMyXudvDoujQEg
    • Gently disconnect the wireless card from the laptop.

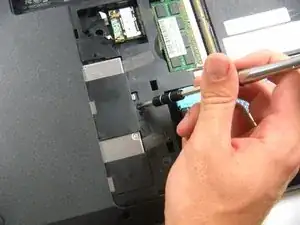

  14. uHXdUZUnAKS4HYDH
    uHXdUZUnAKS4HYDH
    g2SSNuoN4aAMaxTV

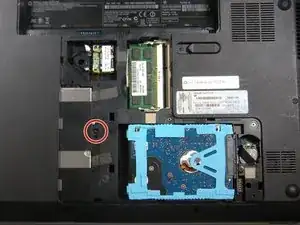

    • Using the PH 00 screwdriver, remove the screw left of the CD drive.

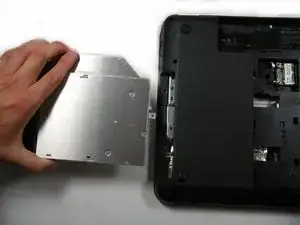

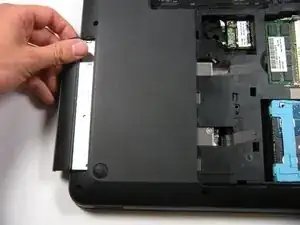

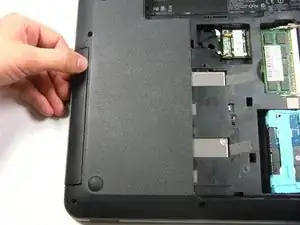

  15. lSFQx4edd4DfEvVn
    lSFQx4edd4DfEvVn
    4frDAd4xZUZqnhOJ
    5LUhiABglTaUH6PE
    • Slide the CD drive out from the exterior of the laptop.

  16. qwNDsqGoYK2qAR6j
    • Using a PH 00 screwdriver, remove the screw located next to the wireless card.

    • You can remove the wireless card for this process but it is not necessary.

    • This screw has a small keyboard icon next to it.

  17. w1JFDnUIR1db2CyY
    • Flip the laptop over and open it.

    • The components beneath your computer may be loose and fall out when you flip the laptop. Be careful when turning it over.

  18. wuPYOHWpySfQEbrW
    wuPYOHWpySfQEbrW
    ngDxjHVV4WTUghpk
    wsQhhXAgHPTjSHKB
    • Insert a plastic spudger or similar pry tool, beneath the keyboard, near the "insert" key, and pop the keyboard up from the laptop.

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The regular black nylon spudger or a plastic opening tool should be used whenever possible.

    • Starting at the opening you just created, run your fingers around the outside of the keyboard separating it from the rest of the computer.

    • Only lift the keyboard up a few inches because it is attached to the laptop by a ribbon cable.

  19. CyN62RYECTJY3UO5
    CyN62RYECTJY3UO5
    drukCbfTH33M46Ti
    OE3pXgpIjM4rtv3C
    • Slightly angle the keyboard back so the ribbon connector underneath it is visible.

    • Remove the ribbon cable by using your fingers to pull up and away from the connector.

  20. 3r66oXXdK5hXWCRV
    • With the ribbon cable detached, you can now completely remove the keyboard.

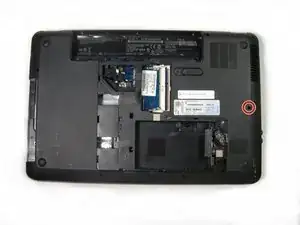

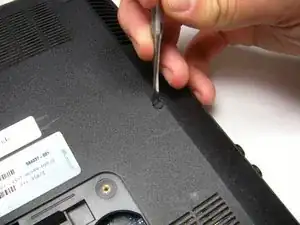

  21. FaNwO3E3wKVXTYs3
    FaNwO3E3wKVXTYs3
    dA1iEIGuQHDtoo2Z
    TiQDKZjSA1ftUoWZ

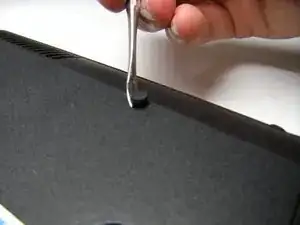

    • With the laptop bottom facing up, locate the rubber plug on the right side of the computer.

    • Use a metal splunger to remove the plug.

  22. lCRK2WkNOsZhCDAB
    • Remove the ten 6.7 mm screws using a PH00 screwdriver.

    • Remove the five 3.4 mm screws using a PH00 screwdriver.

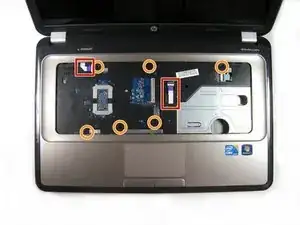

  23. TPQrgoaJgAGCTT5J
    • Flip the computer over and open it.

    • Detach the two purple ribbons from the ribbon connectors.

    • Unscrew the six 4.6 mm screws using the PH00 screwdriver.

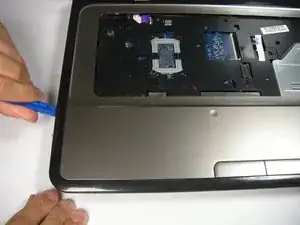

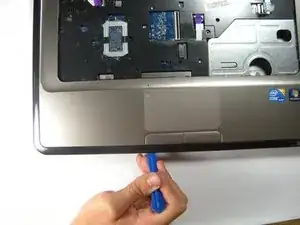

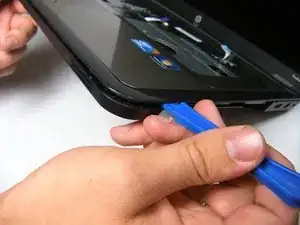

  24. TKUqMZTefLSXbwCP
    TKUqMZTefLSXbwCP
    YAfgYHaOVU6eMMFr
    ytQKYfmZRXuGAdiV
    • Use the plastic opening tool to pry out the front panel around the entire computer.

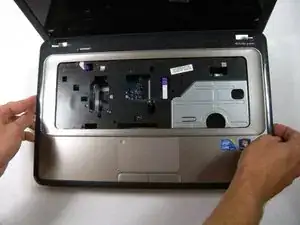

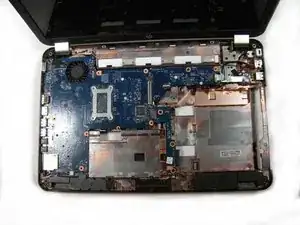

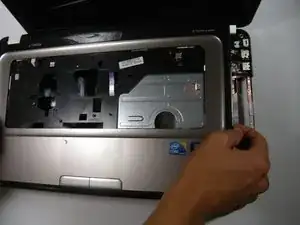

  25. jRXEQb1MJWWif3J6
    jRXEQb1MJWWif3J6
    TmAqawZwYFoGrIAp
    OCaAvb2BBqmhGtVJ
    • Gently lift the front panel away from the computer.

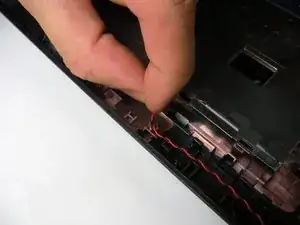

  26. 4UZTKHiGXW6DdSrP
    4UZTKHiGXW6DdSrP
    cNgo3WqYL1QKOYyK
    kClJySLZL1H34XqV

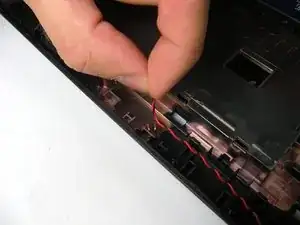

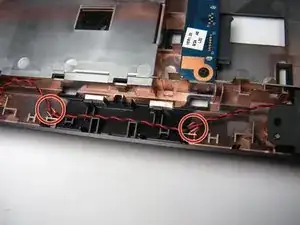

    • Locate the red and black speaker cables connecting the speakers and detach them from the two holders.

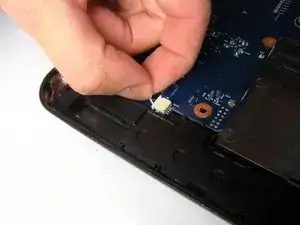

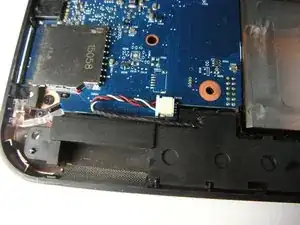

  27. ENXmlpIqIhvmTQoS
    ENXmlpIqIhvmTQoS
    YNY26ykQ5qZLndRd
    LVYVZIRdsHmKPFcG

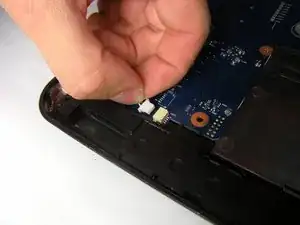

    • Pull the speaker cables out of their connectors.

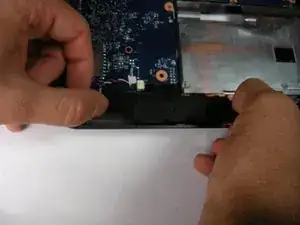

  28. dIelJnvvX5EvXKeS
    dIelJnvvX5EvXKeS
    6KdSMT22SOS2Tso6

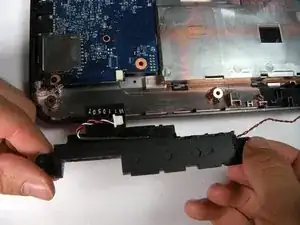

    • Slide the left speaker out from under the blue motherboard.

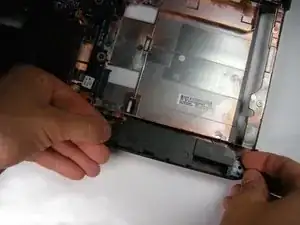

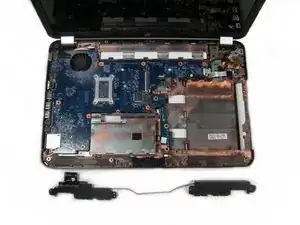

  29. wGHyNC1Do2Ynl6Cc
    wGHyNC1Do2Ynl6Cc
    lULQinN4pZXAvudT
    OhuIAbCKrEl1LLHm
    • Lift the right speaker directly up and remove it from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
