Einleitung
The optical drive allows the laptop to connect with CDs and disc to transfer information. It also allows laptop to play video or songs from the CD
Werkzeuge
-
-

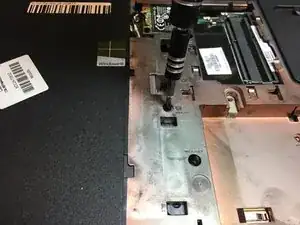

Use a Phillips #0 screw driver to loosen the screw. The screw will not detach from the cover.
-
-
-

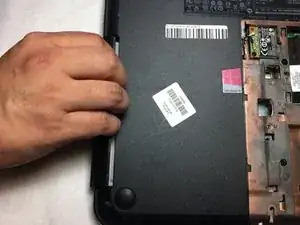

Place your hand on the cover and slide the cover down.
-

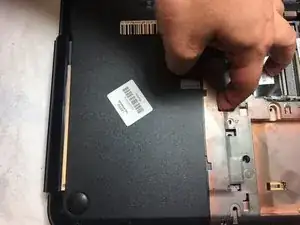

Use your hand to lift the cover from the bottom right and slide the cover to the right to remove the cover.
-
-
-

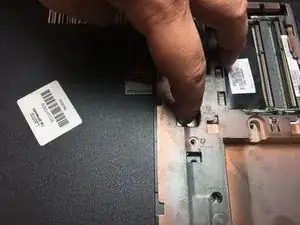

Place one finger on the right side of the hard drive.
-
Push the hard drive to the left and lift the hard drive up to remove it from the device.
-
-
-
Disconnect the connecting part by pulling the part to the right.
-
Remove the hard drive from the device.
-
-
-

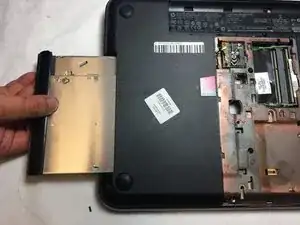

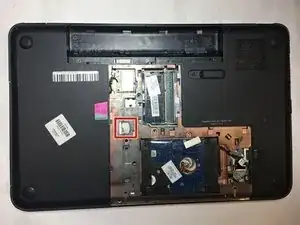

Put one finger into the release hole and push to the left until part of the optical drive comes out from the left of the laptop.
-

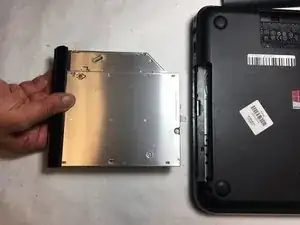

To reassemble your device, follow these instructions in reverse order.
