Einleitung

The ram stick helps the laptop process and stores data. It is the laptops working memory, therefore, a faulty ram stick will slow down laptop functions.

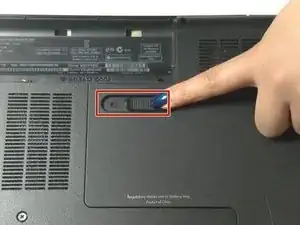

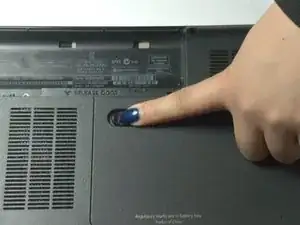

  1. Pa5PoAIKb1itexoT
    Pa5PoAIKb1itexoT
    arDKoOJ2rRVxwWaS
    • Push the battery latch to the left to release the battery.

    • Remove the battery from the device.

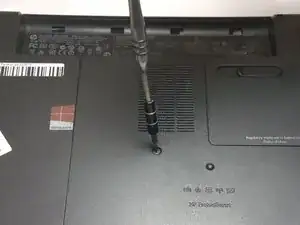

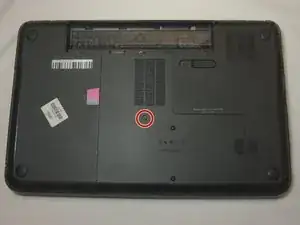

  2. acVyXrMMdAAQG4AX
    acVyXrMMdAAQG4AX
    sSSg2xFhIfX3wSAS
    • Use a Phillips #0 screw driver to loosen the screw. The screw will not detach from the cover.

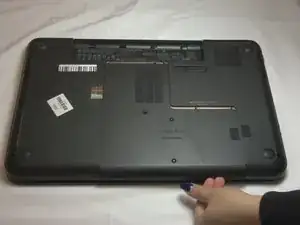

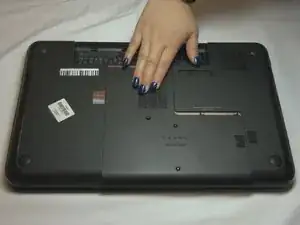

  3. TMNyeTTxh1FZMWBk
    TMNyeTTxh1FZMWBk
    SZXfP2K3SGUhbwqV

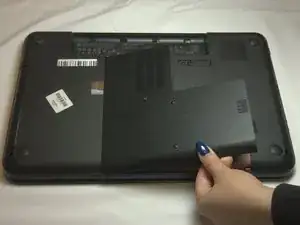

    62VEvngKKqI2aKNu
    • Place your hand on the cover and slide the cover down.

    • Use your hand to lift the cover from the bottom right and slide the cover to the right to remove the cover.

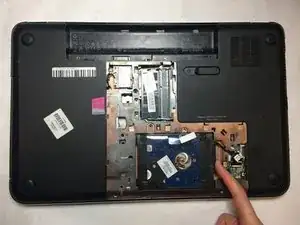

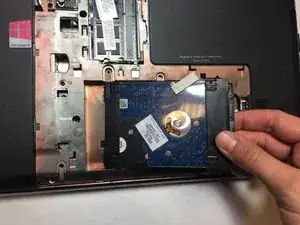

  4. Eg1A4RWmgejwgTpF
    Eg1A4RWmgejwgTpF
    bAae6ULCweQxgV4U
    • Place one finger on the right side of the hard drive.

    • Push the hard drive to the left and lift the hard drive up to remove it from the device.

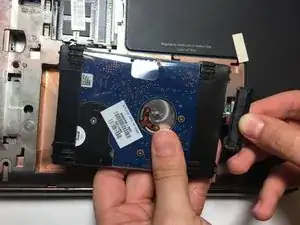

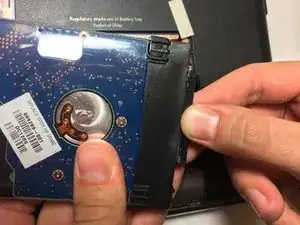

  5. rcELR3Ba2jcEaktR
    rcELR3Ba2jcEaktR
    BZY4PNIm4iHdVFy5
    • Disconnect the connecting part by pulling the part to the right.

    • Remove the hard drive from the device.

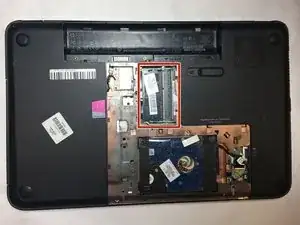

  6. VeqyyFKjsbq4HU3A
    VeqyyFKjsbq4HU3A

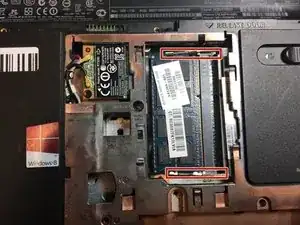

    NE6TajQqN6su5pEV
    • The silver hinges holds the RAM in place.

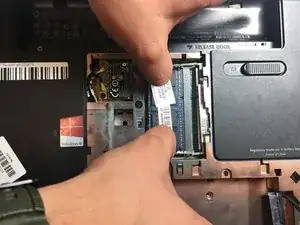

  7. YS26xAIkXjL4SPdW
    YS26xAIkXjL4SPdW

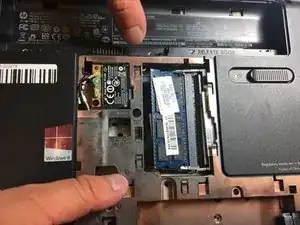

    2gADe3XIIWAAIZDM
    • Use two fingers to push both silver hinges outward to release the RAM.

    • The released RAM will pop up.

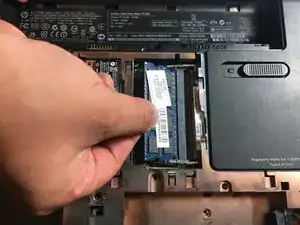

  8. 1LCvcIvCMMRTIIlC
    • Pull the RAM stick to the left and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
