HP Pavilion g7-1150us Optical Drive Replacement

Geschrieben von: Cierra Sheerin
  • Kommentare: 2
HP Pavilion g7-1150us Optical Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

8 Minuten

Einleitung

If you are unable to play a CD/DVD on your laptop, there is most likely damage to the optical drive. Use this guide to help replace the drive in order to restore the laptop back to normal working conditions.

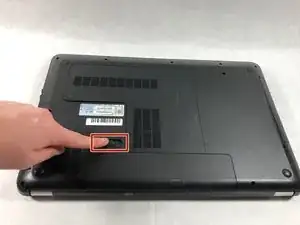

  1. NM4ApCRVJYTgZu1y
    NM4ApCRVJYTgZu1y
    Gan2IyByheLbOGtR

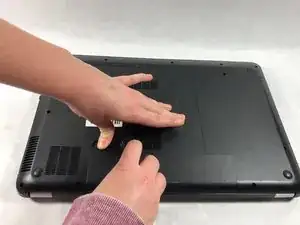

    • Slide the battery removal switch towards the center of the laptop until the battery pops out.

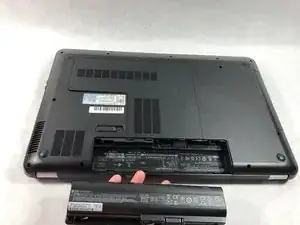

  2. KNP6GQkduG6LyarI

    • Remove the battery from the computer.

  3. PmKbYOPqIcXAQNFG

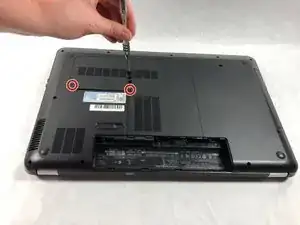

    • Unscrew the two 4mm Phillips #0 screws found in the surface panel.

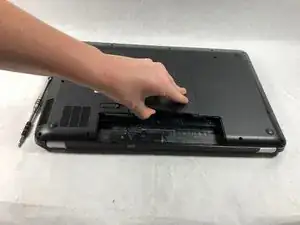

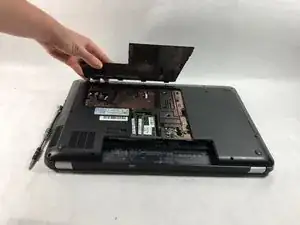

  4. SRwNiOMIHv1ubHBy
    SRwNiOMIHv1ubHBy
    XUMSc3SZQrhuNmAr

    • Using the spudger, pry the surface panel off starting from the side where the battery was located.

    • Pry the remainder of the panel off by sliding the spudger underneath the panel and gently lifting.

    • Aim for the corners of the panel while using the spudger to methodically remove it without damaging it.

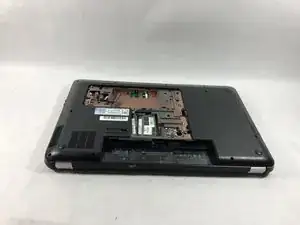

  5. FpNrSDZ2tCPKj6oN

    • Lift the pried surface panel off of the computer.

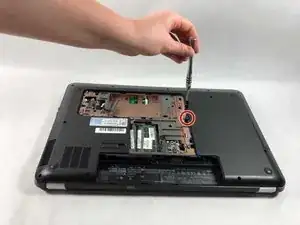

  6. 23AyY5cMRj6A2VWV

    • Use the screwdriver to remove the 4mm Phillips #0 screw holding the optical drive in.

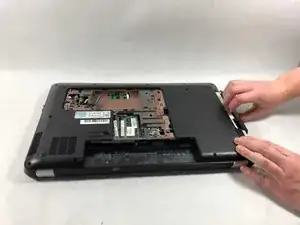

  7. syonIXnwmYsCJKPQ

    • Use your fingers to grab the optical drive.

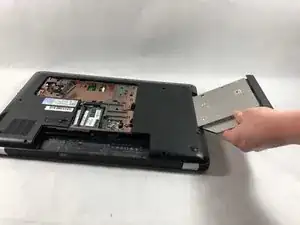

  8. Q4v1MA5ymnB2IZyJ

    • Pull out drive completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Cierra Sheerin

Mitglied seit: 25/03/19

97 Reputation

2 Kommentare

What do you do when the DVD drive will NOT slide out? That’s my problem. There’s no disk inside; the unit is simply stuck shut. Now what do you do?

paulwrites -

For me, the DVD drive connection had, what I think was soda, inside of the port and it acted like a sort of glue so brute force may be the option.

After a deep cleaning of the connections, it worked like new.

Dylan Dopp -
