HP Pavilion g7-1365dx RAM Replacement

Geschrieben von: Rafal Szmyd

Kommentare: 0

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

5 Minuten

Einleitung

This guide will give step by step instructions on how to remove and replace a Memory Module in an HP Pavilion g7-1365dx. Use this guide if you're having issues with not enough RAM or a faulty RAM stick which could cause the laptop to be slow, frozen, or have no screen display.

Werkzeuge

Schritt 1

To prevent injury, make sure the laptop is powered off before removing the battery.
Flip the laptop so that it is upside down and opens away from you. This exposes the battery, it will be centered at the bottom of the laptop .
Push the switch above the battery towards the center of the laptop .

Schritt 2

While pushing the switch, lift the battery by the side closest to the switch up and away from the laptop.

Schritt 3

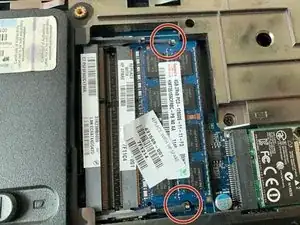

Using a Phillips size 0 screwdriver, unscrew the 2 Phillips screws.
Use the opening tool around the edges of the service door to loosen it and remove it.

Schritt 4

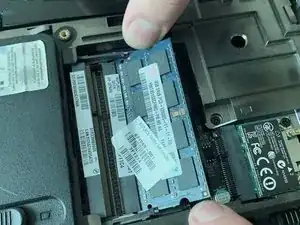

Use your fingers to simultaneously pull apart both tabs holding the module.

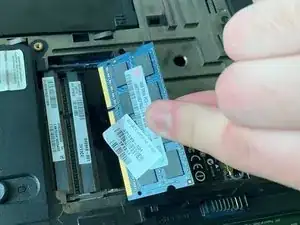

The memory module will pop up once the tabs are pulled so that it can be removed.
