Einleitung
This guide will give step by step instructions on how to remove and replace an RTC Battery in an HP Pavilion g7-1365dx. Use this guide if you're having issues with an optical drive that is faulty.
Werkzeuge
-
-
Flip the laptop so that it is upside down and opens away from you. This exposes the battery, it will be centered at the bottom of the laptop .
-
Push the switch above the battery towards the center of the laptop .
-
-
-
While pushing the switch, lift the battery by the side closest to the switch up and away from the laptop.
-
-
-
Using a Phillips size 0 screwdriver, unscrew the 2 Phillips screws.
-
Use the opening tool around the edges of the service door to loosen it and remove it.
-
-
-

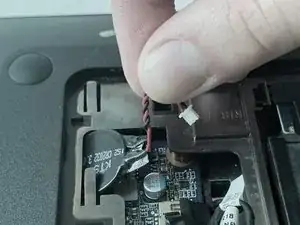

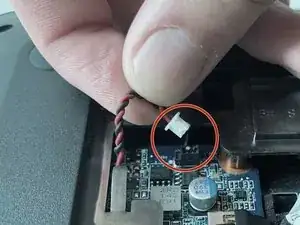

Disconnect the RTC battery power cable from the system board.
-
Remove the RTC battery from the system board. (The RTC battery is attached to the system board with double-sided tape.)
-
Slide the RTC battery out from under the surface of the base enclosure.
-
To reassemble your device, follow these instructions in reverse order.
