HP Pavilion g7-1365dx WLAN Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

7 Minuten

Einleitung

This guide will give step by step instructions on how to remove and replace a WLAN Module in an HP Pavilion g7-1365dx. Use this guide if you are having trouble with the WLAN Module.

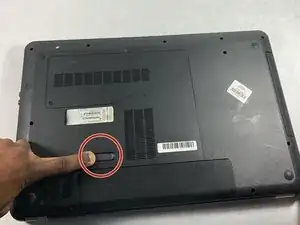

  1. It6txG2kTKUOqePB

    • To prevent injury, make sure the laptop is powered off before removing the battery.

    • Flip the laptop so that it is upside down and opens away from you. This exposes the battery, it will be centered at the bottom of the laptop .

    • Push the switch above the battery towards the center of the laptop .

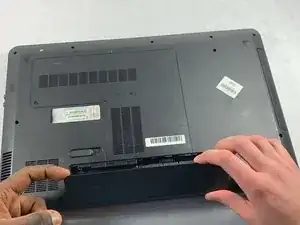

  2. 2uOewy15OPQCZuDD

    • While pushing the switch, lift the battery by the side closest to the switch up and away from the laptop.

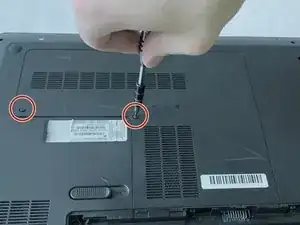

  3. 5gh3WEOS3UQEvZUl
    5gh3WEOS3UQEvZUl

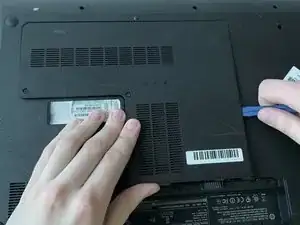

    motKfFwTIPHAWKVl

    • Using a Phillips size 0 screwdriver, unscrew the 2 Phillips screws.

    • Use the opening tool around the edges of the service door to loosen it and remove it.

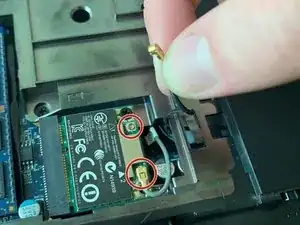

  4. xjctC1WNsSUJqWQc

    • Gently pull the black and gray coaxial connectors vertically up off of the module.

    • Make sure to remember which wire was connected to which terminal.

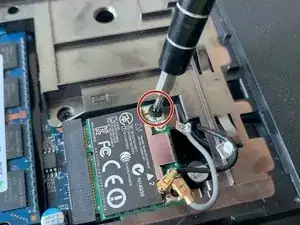

  5. U3TIT3wl5Wg6OTj4

    • Use a Phillips #00 screwdriver to take out the 4.7mm screw holding the module.

    • The module is on a spring and will pop out once the screw is taken out.

  6. rydyrKE6WaFrZB5s

    • Use your fingers to pull out the WLAN module as shown.

Abschluss

To reassemble your device, follow these instructions in reverse order.
