HP Pavilion g7-2023cl Upper Case Assembly Replacement

Geschrieben von: Thomas Maloney

Kommentare: 0

HP Pavilion g7-2023cl Upper Case Assembly Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

55 Minuten

Einleitung

The touchpad/track pad and power button are embedded into the upper case assembly for this device. There are a few reasons to replace the upper case assembly. The upper case may be broken, out of place, the touchpad/track pad no longer work, or the power button is broken. Whatever the reason, this guide will show you how to replace the upper case assembly.

Werkzeuge

Ersatzteile

HP Pavilion g7-2023cl Top Cover

Schritt 1

Shut off your device and disconnect the power cord. Disconnect any external devices connected to the device.

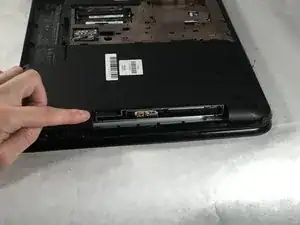

Place your finger on the battery lock slider, press toward the center of the laptop to unlock the battery.
The lock will make a click sound letting you know that the battery is unlocked.

Schritt 2

Use your thumb to pry up the edge of the battery and lift it out of the device.
When replacing the battery, align the notch on the battery with the battery lock on the device. Gently press down on the battery until you hear the lock click, which signals that the battery is secure.

Schritt 3

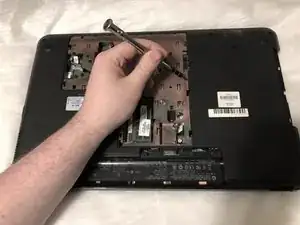

Using a Phillips #0 screwdriver, loosen the service door screw.
This is a captive screw that will remain attached to the service door.

Schritt 4

Lift the service door up and away from the device.

Schritt 5

Locate the hard drive cable connector pull tab.
Pinch the pull tab pulling upwards from the motherboard to disconnect the hard drive cable.
To reconnect the cable, align it so that the cable from the connector is facing the battery and the cable lays in the groove of the base enclosure.

Schritt 6

Use a spudger or other ESD-safe prying tool to lift one side of the hard drive up and out of the base enclosure.
You may be able to lift up the hard drive with just your fingers.

Schritt 7

Grab the end of the hard drive.
Pull the hard drive out of the base enclosure at an angle.
To replace the hard drive, insert it at the same angle you removed it from and slide it back into the base enclosure until it lays flat.

Schritt 8

Using a Phillips #0 screwdriver, remove the optical drive anchor screw.

Schritt 9

Insert the flat end of a spudger into the optical drive release access hole.

Schritt 10

Orient the device so that you can remove the optical drive.
If you are missing the bezel (face of the optical drive) or have the bezel these same steps work to remove the optical drive.

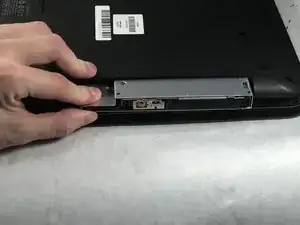

Using a spudger, slide out the optical drive enough so that you can grab it with your hand.

Schritt 11

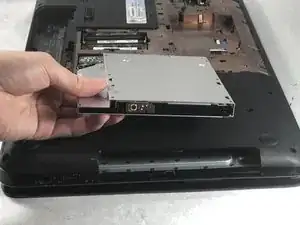

Remove the optical drive by pulling it out of the device.
When replacing the optical drive, slide it completely back into the slot so that it fits flush.

Schritt 12

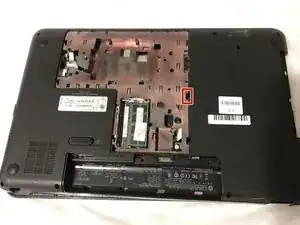

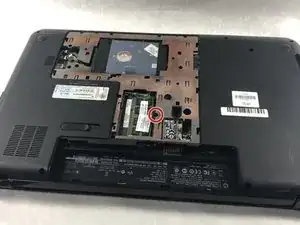

Locate the screw that secures the keyboard.
It is near the RAM module and the screw hole is identified by a keyboard symbol with the text underneath it that reads M2.5×6.5.

Schritt 13

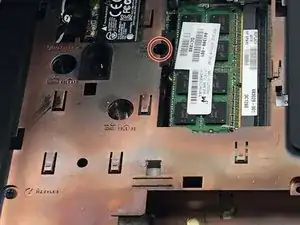

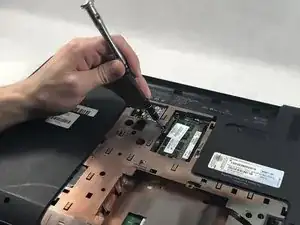

Using a Phillips #0 screwdriver, remove the Phillips M2.5×6.5 screw that secures the keyboard.

Schritt 14

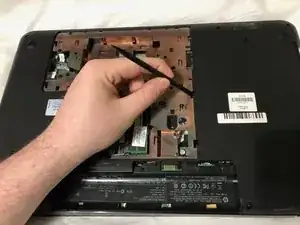

Insert the pointy end of a spudger into the two keyboard release holes and press down to disengage the keyboard from the device.

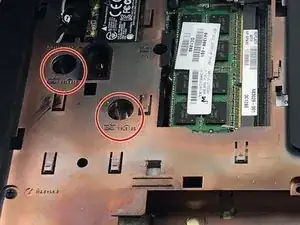

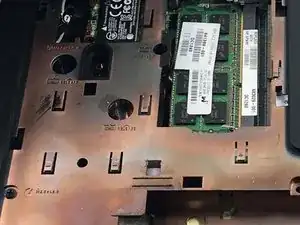

The release holes are on the base enclosure identified by a keyboard symbol with the word "release" written next to it.

Schritt 15

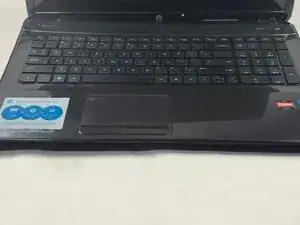

Turn the device over and open the laptop.

Schritt 16

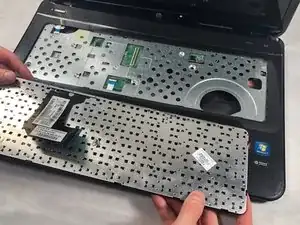

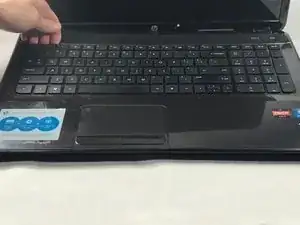

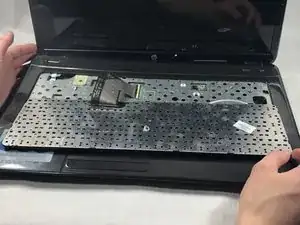

Use your fingers and grab the corner(s) of the keyboard and lift up towards the display panel.
Fold the keyboard over key side down onto the top cover so that it lays flat on the track pad.
