HP Pavilion g7-2275dx RAM Replacement

Geschrieben von: John Sutton
  • Kommentare: 2
HP Pavilion g7-2275dx RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 2 Minuten

Einleitung

One of the easiest ways to speed up your computer is to add more RAM. This guide will walk you through how to replace the RAM in your laptop.

Be sure that you buy the right type of RAM. The g7-2275 dx supports two stick of RAM, up to 8 GB. It takes 204-pin SODIMM DDR3 PC3-10600 1333MHz RAM.

For more information about RAM, check out iFixit's RAM page

  1. LpUmbaBmFsHvSeyZ

    • Working on your device while it is turned on may result in electric shock. Make sure to shut down and unplug your device before you begin.

    • Flip your device over so the bottom panel is facing up.

    There is no realistic risk of electric shock on a laptop. However, is it still advisable to disconnect power plug and battery before opening as there is a real risk of accidental damage by short-circuit.

    antoniotavares -

  2. KMQLlhuhaNeJTtQV

    • The battery is held in by a latch in the front and tabs in the back.

    • Slide the lock switch left, towards the center of the computer.

    • Lift up the battery, rotating it up and away from you, then pull it out.

    • To put the battery back in, line it up with the battery bay and the holes for the tabs. Then let the battery rotate towards you and press down until the latch engages and you hear a click.

  3. hFfPDtwIAJlKO2X6

    • Unscrew one Phillips #1 screw from the back panel.

    • The screw is on a spring and attached to the panel. It will pop up, but will not separate from the back panel.

  4. d3nOOKoWVQsUh5G5
    d3nOOKoWVQsUh5G5
    YUZwsOaagB6XSbFU

    • Slide the back panel down and pull it up.

  5. 2KVhYWKwGG2ZsQfX
    2KVhYWKwGG2ZsQfX
    QnAkBtJPmIJ2Yqjr

    • Use your fingers, plastic opening tools, or pliers to pull the silver brackets away from the RAM.

    • The RAM should pop up to a 35 degree angle.

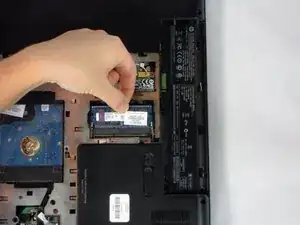

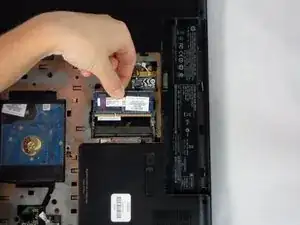

  6. LC2qoLRUUAEQupDp
    LC2qoLRUUAEQupDp
    YYUQZELTcoGvIPdI

    • Gently pull the RAM straight out in the direction it currently is orientated.

    • When inserting new RAM, place the RAM in the black housing at a 35 degree angle (it will fit loosely), then push down until it clicks into the silver brackets.

    • This computer supports two sticks of RAM. To add a second stick, repeat the above step with the upper black housing. (Ensure that you have the correct size and type of RAM before trying to add it).

    This laptop only supports up to 8 gig of ram (2x 4)

    Kip Bunn -

Abschluss

To reassemble your device, follow these instructions in reverse order.
