HP Pavilion tx2500 Fan Replacement

Geschrieben von: Ricardo
  • Kommentare: 6
HP Pavilion tx2500 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

15 Minuten

Einleitung

This guide provides instructions on the disassembly of the HP Pavilion tx2500 for fan replacement.

  1. eKKtRvYIgOHXVcUD

    • Completely turn off and unplug device. Lay the device bottom side up on a soft surface.

    Rephrase: "shut off"

    Brian Blackburne -

  2. lPwSVFN5YbkrmQm1
    lPwSVFN5YbkrmQm1
    hUQKNSpJtSwnjJwH

    • Squeeze the latches on the battery until you hear a click. Slide out the battery.

  3. JPTVXAScO5ZNf2SY

    • Using the Phillips #0 screwdriver, remove the 4.5 mm screw from the WLAN model screen.

    • Once unscrewed, lift the right side of the WLAN module compartment cover and swing it to the left.

    Focus on using precise, user-oriented language. Phrases like "shut off" and "undo" are idiom that have meaning in specific communities. Also, they are weaker versions of stronger, more-informative phrases.

    Brian Blackburne -

    you also need to disconnect antenna cables from wifi module , unscrew 2 screws holding module and remove module from bay

    Alex Prestigio -

  4. rImMgJRujRvkqOiY

    • Using the plastic opening tool, disconnect the WLAN antenna cables from the WLAN module.

  5. cInrCE4hu1qALUAA

    • Using the Phillips #0 screwdriver, unscrew the 4.5 mm screw from the middle section in the battery compartment.

  6. 1XaoBLuvUAne1so1

    • Use the plastic opening tool to disconnect the wires in the upper corners.

    here you need to:

    1) remove CD Drive by sliding special remove slider

    2) remove all screws from bottom, includig 3 very small under CD Drive

    Alex Prestigio -

  7. QSSWKtIeVkfJo2dG

    • Flip the laptop front side up and then use your fingers to lift up the keyboard.

    1) start from side near screen, because other sides have latches

    2) keyboard (and touchpad) cable is held by black notch, pull it upwards until it rotates to 90 degrees to vertical position

    Alex Prestigio -

  8. QYXQAvMHRKE6mQOZ

    • Lift up the black latch that connects the film strip to the base of the computer.

    • Use the plastic opening tool to disconnect the film strip from the base of the computer.

  9. NfAZEYin3ZShvExn
    NfAZEYin3ZShvExn
    FNv1M5HZfrGlV2fG

    • Rotate the screen 90 degrees and remove the base under the screen.

  10. UrPgdVq4irLhLumO

    • Rotate the screen back towards you.

    • Lift up the convertible hinge to unclip it from the base of the computer.

  11. 5X6Yc5vZhVjUITPh
    5X6Yc5vZhVjUITPh
    oUeJXXBOSSZ3bJcS

    • Using the Phillips #0 screwdriver, remove both of the 5.0 mm screws on the base of the rotator.

  12. EKSPQSPWhIcWNiH2

    • Gently lift up and remove the screen.

    For images, use light sources that you can control. White balance changes with each picture, and yellow walls or edges of your white background are sometimes visible; these elements distract from the important information in the shot. Also, be mindful of reflections and what they reveal about your studio. The images appear to be taken in the stacks of the library.

    Brian Blackburne -

  13. HUTUxrOnJVbMybMB
    HUTUxrOnJVbMybMB
    CaUveqDYBTx2griB
    KDQDDe5QGFDbsfQR

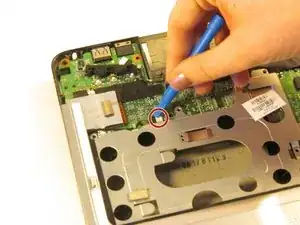

    • Disconnect the wire from the system board using the plastic opening tool.

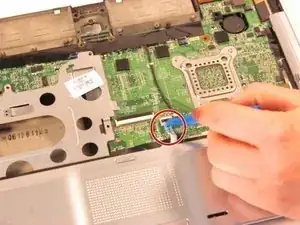

    • Disconnect the wire from the optical drive using the plastic opening tool.

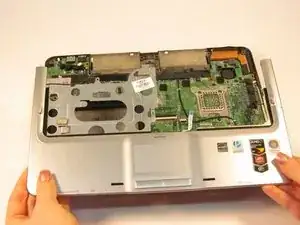

    • Gently lift the top cover from the tablet.

  14. Y6fyA4wlpqL2JwLG
    Y6fyA4wlpqL2JwLG
    4xST1WT4fFVSJE6U

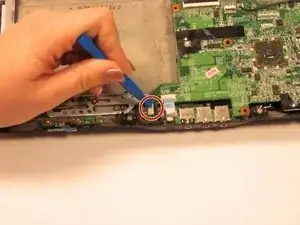

    • Using the plastic opening tool, disconnect the plastic blue film from the tablet.

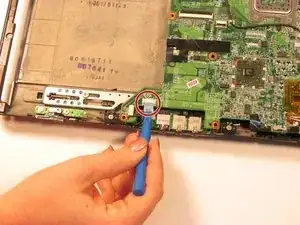

    • Disconnect the wire using the plastic opening tool.

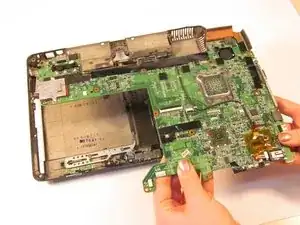

  15. 6pCsFCLxvFNssJQO
    6pCsFCLxvFNssJQO
    ucxqTDeKkbxHttTQ

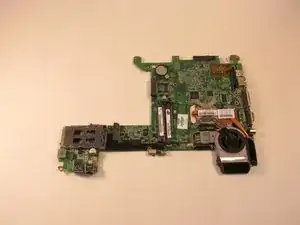

    • Lift the system board from the tablet.

    • Turn the system board over and lay it flat on a soft surface.

  16. OZMUIiyPcFQ1OeOJ
    OZMUIiyPcFQ1OeOJ
    HamOiQPNGvBXlwlQ

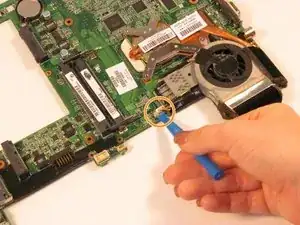

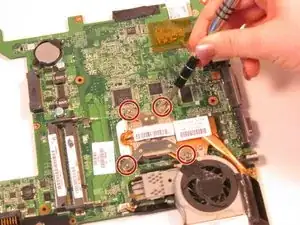

    • Using a Phillips #00, remove the 4.5 mm screws that connect the fan to the board.

    • Using a plastic opening tool, disconnect the wire that attached the fan to the board.

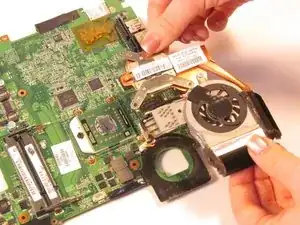

  17. HQJXTKOVyAv5IptM

    • Gently lift the fan away from the board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
