Einleitung

This guide covers the removal and replacement of the HP Pavilion x2 10-n113dx front facing camera. From opening the device to the removal of the camera circuit board. Throughout this guide we will use a PH0 driver bit, blue plastic opening tools, and a pair of tweezers.

  1. sZ1SPvtb5bhTX6pX
    sZ1SPvtb5bhTX6pX
    36T2rxxVaGMjgSMg
    QVrXgmWdnwmJkumA

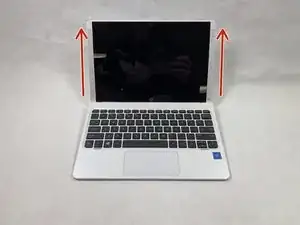

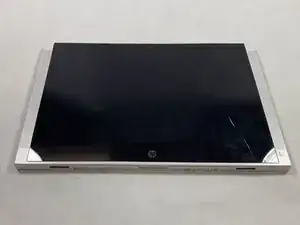

    • Separate the screen from the keyboard.

    • The keyboard and screen are held together via magnets.

    • Open the device and pull the screen parallel to its face.

  2. OtJwv2Nnox3tDWBo
    OtJwv2Nnox3tDWBo
    MRrwISiYR4lHMaVV
    lyqjWOkss3IwxScy

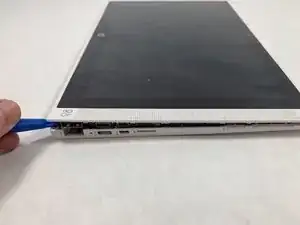

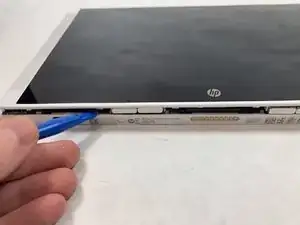

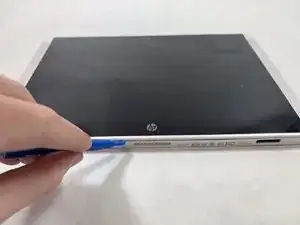

    • Separate the screen from body of the computer with a blue spudger.

    • Using a plastic spudger, gently begin separating the face from the body.

    • Separate each side gently.

  3. sp2jOlyVjHJ4XvFv
    sp2jOlyVjHJ4XvFv
    3eIvk6FyUC3XyZKO

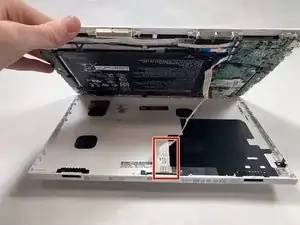

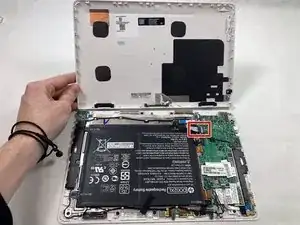

    • Once each edge has been separated, gently lift the face (screen) from the back.

    • Be sure to not do so quickly or you risk tearing the keyboard ribbon cable.

    • Rotate the device 180 degrees for the following steps.

  4. 6GruVeo5WCydH4ex
    6GruVeo5WCydH4ex
    HHmEvjTOukFnRpVe

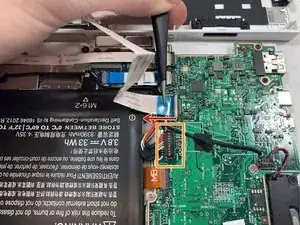

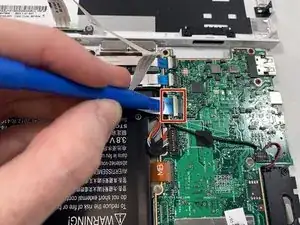

    • Follow the attached ribbon cable to the circuit board of the device.

    • On the side of the ribbon cable, use a small plastic spudger to pop open this plastic lock and gently pull in the direction of the cable to remove.

    • Gently lift up on the battery connector just below the earlier removed ribbon cable to remove.

  5. n3y4lpUrZGAwKoSW
    n3y4lpUrZGAwKoSW
    OcpbXEmR5OYcbEwq

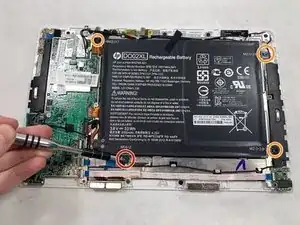

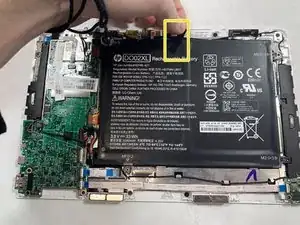

    • Unscrew and remove each of the four indicated screws using the Phillips #0 screwdriver.

    • Begin with the bottom left 4.5mm diameter screw.

    • Continue to the remaining three 2.0 mm diameter screws.

    • Once all four screws have been removed lift the battery from the device using the indicated pull tab along the top edge.

  6. dhmUBWyYOTIEIWSZ
    dhmUBWyYOTIEIWSZ
    YqT3WRCXx5tQTlmw
    rNSalhlSPPKIG2BH

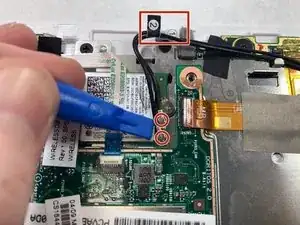

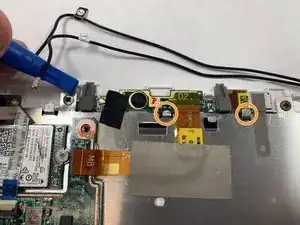

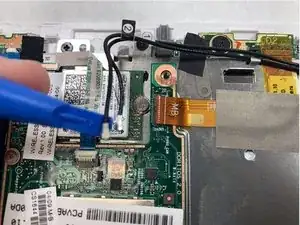

    • Using a small blue plastic spudger pop off the two speaker wires from the circuit board.

    • Once removed from the board carefully move the wires from the raised clips on the metal plating.

  7. 4YXYnD66TmoumQ5r

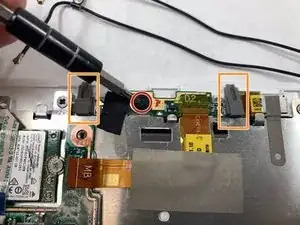

    • Using the Phillips #0 screwdriver, remove the 4.5mm screw from the camera circuit board.

    • Using a plastic spudger flip up the two rubber covers to the right and left of the 4.5mm screw.

  8. xGcvi5snShPdHHQJ
    xGcvi5snShPdHHQJ
    Q2XCHQ2cIHYALMJE

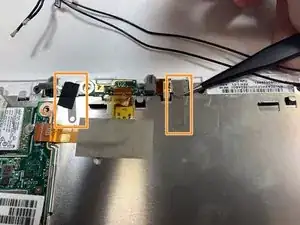

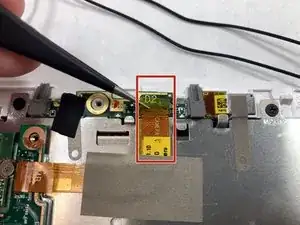

    • Carefully remove the ribbon cable from the camera circuit board with tweezers.

    • Carefully remove the wire mesh tape from the metal plating using tweezers.

  9. 2GRuAo3MuBMbPNDf
    2GRuAo3MuBMbPNDf
    N2noJI1h2mBmhNgS

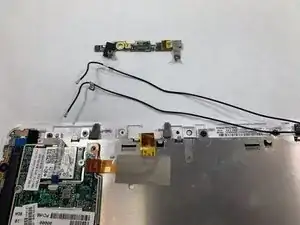

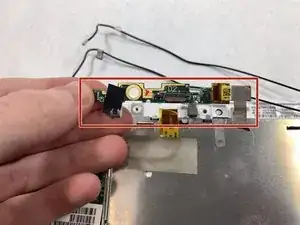

    • Using a plastic spudger remove the camera circuit board from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
