HP Pavilion x2 10-n113dx Speaker Replacement

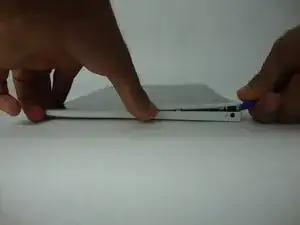

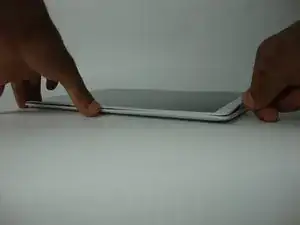

Using the blue plastic opening tool or a flat bladed tool, carefully slide the blade in between the display panel and gently slide to prop open the assembly.

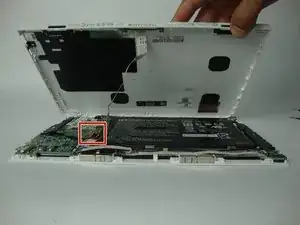

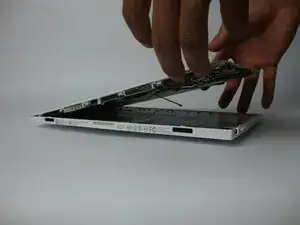

Gently lift and remove the display panel from the assembly.

Remove the translucent yellow tape that covers the battery connector on the mainboard.

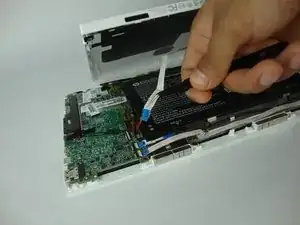

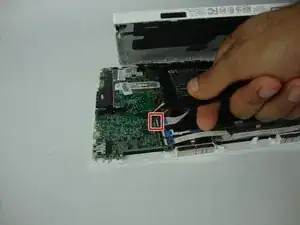

Flip up the small white colored locking flap using the tip of a spudger or your fingernail. Then the ribbon cable can be removed easily without much effort.

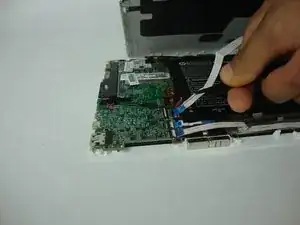

Carefully disconnect the white ribbon cable from the mainboard.

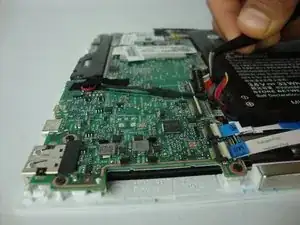

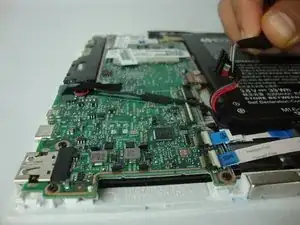

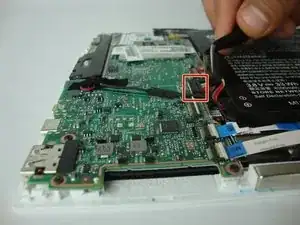

Carefully disconnect the battery cable from its connector on the mainboard.

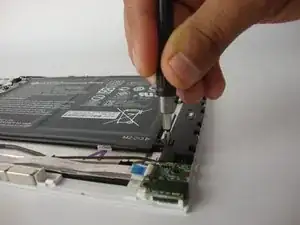

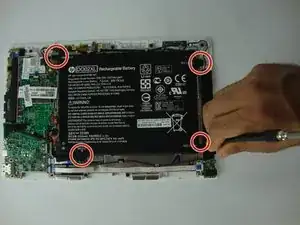

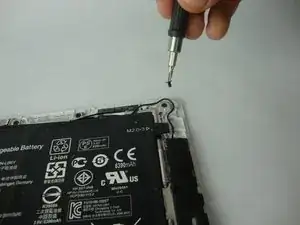

Using the Phillips #0 screwdriver, carefully remove the 4 corner screws that hold the battery to the display panel.

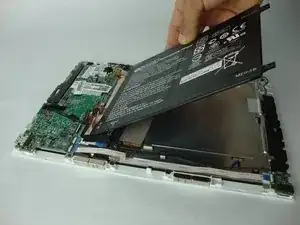

Remove the battery from the device.

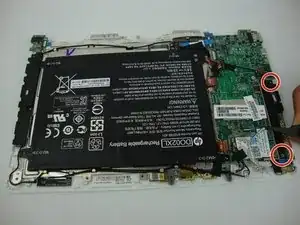

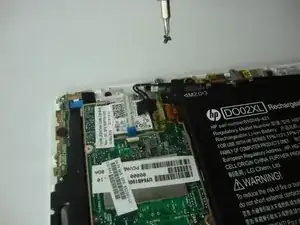

To unscrew the first speaker, use the Phillips #0 screwdriver to unscrew the 2 screws- head 3.99mm, length 3.32 mm.

For the second speaker, repeat the previous step by unscrewing the two screws.

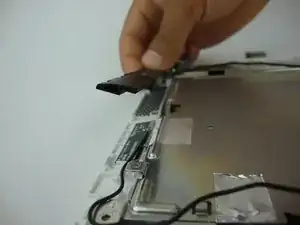

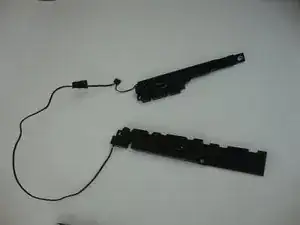

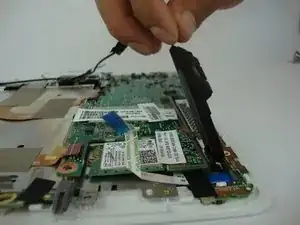

Gently remove the 1st and 2nd speaker from the assembly.
