Einleitung

If your HP Pavilion x360 14-ba253cl has limited power refer to our troubleshooting page.

  1. FSe4LaZFDApihecD
    • Use the Jimmy to remove the footpads located at the bottom of the laptop.

  2. ROZdNHDsrdOWGvxy
    • Remove three 4.0mm Phillips #0 screws from the top of the cover.

    • Remove two 6.0mm Phillips #0 screws underneath each of the back footpads.

    • Remove one 4.mm Phillips #0 screw beneath the divot.

  3. IUTmGrvJBrJpuZOJ
    • Turn the computer onto its base, with the computer open and the keys facing upward.

  4. FfNVTVTclYiXa5uK
    • Use an opening pick to separate the keyboard from the base of the laptop.

  5. dWPrg2l2QtFMKF6p
    • Raise the keyboard slightly to gain access to the touch pad and keyboard cables.

    • Using a spudger, lift up the plastic locks that connect the ribbon cable to the system board.

    • Use the blue plastic tab on the ribbon cable to pull it out from the system board.

    • Remove the keyboard from the laptop.

  6. MFUGVq6MhlPFTeqI

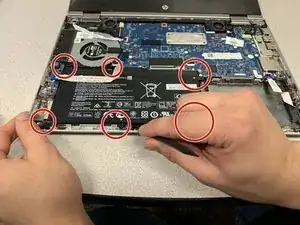

    • Remove six 3mm Phillips #00 screws around the perimeter of the battery.

  7. PbkJCtZxykITPTij

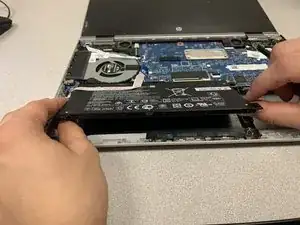

    • Carefully lift the battery starting from the lower right corner and disconnect it from the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
