Einleitung
If your HP Pavilion x360 14m-ba011dx laptop has lost the ability to connect to Wi-Fi or it experiences difficulty connecting to Wi-Fi, use this guide to replace the Wi-Fi card.
Werkzeuge
Ersatzteile
-
-
Remove the top left and right rubber pads closest to the hinge of screen using a plastic spudger to expose the screws underneath.
-
Remove the following 6 screws from the bottom of the device using a Phillips #00 Screwdriver:
-
Two 7.5 mm screws.
-
Three 5 mm screws.
-
One 6.5 mm screw.
-
-
-
Push into the two screw holes that were under the rubber pads with the screwdriver to pop the keyboard out just a little.
-
-
-
Separate the keyboard from the rest of the device using a metal or plastic spudger around the edges.
-
Pull up gently just until you can see the cables attaching the keyboard to the motherboard.
-
Flip the small white flaps holding the cables to the motherboard open to unplug the cords.
-
-
-
Remove the purple cable attaching the battery to the motherboard by flipping the black flap and pulling the cable out.
-
Remove seven 4 mm Philips screws using a Phillips #00 Screwdriver.
-
-
-

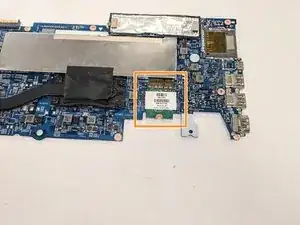

Flip motherboard over to expose the Wi-Fi card.
-

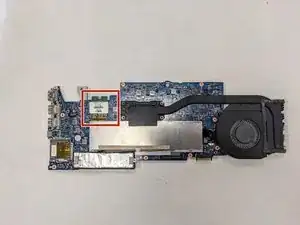

Rotate the motherboard so the Wi-Fi card is closest to you.
-
Gently remove the Wi-Fi card from its slot.
-
To reassemble your device, follow these instructions in reverse order.
