HP Pavilion x360 14m-ba114dx Screen Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

22

Zeitaufwand

1 Stunde

Einleitung

This guide will help you replace the screen in your HP Pavilion x360 14m-ba114dx laptop. The screen is responsible for taking electronic signals from the laptop and turning them into a visible image. If your laptop’s screen is partially or entirely black or there are dead pixels in the screen, your laptop’s screen may need to be replaced. Please visit this troubleshooting page for possible solutions to the problem. If none of these solutions work, use this guide to replace the screen.

A prerequisite to this guide is removing the battery. If you notice once the laptop is open that the battery is swollen, remove it with caution. If swollen, do not charge the battery, keep the battery at a stable room temperature, and dispose of it properly at a recycling center. This page will help you deal with a swollen battery.

Also, make sure that you unplug your device from any external power sources and completely power it off before beginning this replacement.

  1. DxpmAbXnOxv3uILI
    DxpmAbXnOxv3uILI
    Q3UpHtN3Kn1QUphK
    xkr1IYIPcokoRXim

    • Using a #0 Phillips-head screwdriver, remove the three 5 mm screws along the bottom of the back cover.

    • Using a #0 Phillips-head screwdriver, remove the 6 mm screw at the top of the back cover.

  2. ThL6E4CgpI6y3FSw
    ThL6E4CgpI6y3FSw
    fMPSpeuEoZmbopZ2
    QpjQIptGqrfPXZQP

    • Using the flat end of the Spudger, pry up the two rubber feet on the top of the laptop's back cover.

    • Using a #0 Phillips-head screwdriver, remove the 8 mm screw under each of the rubber feet.

  3. R5CRlQbZRex1aFnR
    R5CRlQbZRex1aFnR
    lk1tNxNwbgJIobCJ
    JB5Ir2m1CLtPKYNZ

    • Open the laptop, with the display fully extended to 360 degrees so that the screen is on the table.

    • In this orientation, sliding the laptop around may scratch the screen. A blanket or a mat placed under the screen will help to prevent scratching.

    • Using the thinner end of an iFixit Plastic Opening Tool, pry open the keyboard panel from the base of the laptop near the screen hinges.

    Op nieuwere modellen moet je de onderkant openwrikken en zal je de batterije daar aantreffen

    Youry De Winter -

  4. SYFQVZiE3C3bicTj
    SYFQVZiE3C3bicTj
    2y6FvqaJO5tT5CRw
    XXm5ouY3aj2fCCOa

    • Using the iFixit Plastic Opening Tool and the iFixit Opening Picks, work your way around the rest of the keyboard and pry it out of the base.

    Op nieuwere modellen moet je de onderkant openwrikken en zal je de batterije daar aantreffen

    Youry De Winter -

  5. EdInRDSDNdbQsIZq

    • Grasp the keyboard with both hands and gently lift it out of the base.

    • Do not lift the keyboard completely out of the base, as there are ZIF connectors that must be removed first.

    Op nieuwere modellen moet je de onderkant openwrikken en zal je de batterij daar aantreffen

    Youry De Winter -

  6. k42xGDXTflHYcwxL
    k42xGDXTflHYcwxL
    nwPXj62KiTQdbAFC
    JpgYXlqIn1upyhHI

    • Using a plastic Spudger, remove the ZIF connectors that attach the motherboard to the touchpad and the keyboard. Use the flat end of the Spudger to pop up the cap on top of the connector. The connector will then slide out of place.

    • Repeat this step for all three connectors.

    Op nieuwere modellen moet je de onderkant openwrikken en zal je de batterij daar aantreffen, er zijn geen ribbons los te maken

    Youry De Winter -

  7. VchBHIWbSBe5XFSW
    VchBHIWbSBe5XFSW
    JZfXCb2dgAXGBZbO

    • Using the flat end of the plastic Spudger, remove the ZIF connector attaching the volume button and headphone jack to the motherboard.

    • This ZIF ribbon is glued to the middle of the battery. You do not need to separate this ribbon from the battery in order to remove the battery from the device. You only need to unclip it at both ends.

    Op nieuwere modellen moet je de onderkant openwrikken en zal je de batterij daar aantreffen, er zijn geen ribbons los te maken

    Youry De Winter -

  8. WeMsYp5VvfXMvBHu
    WeMsYp5VvfXMvBHu
    gdpCx1FfADgKlsUt

    • Using a #1 Phillips-head screwdriver, remove the seven 4 mm screws around the battery.

    • Gently move the ZIF connector out of the way to reach the screw marked in orange. Then use the #1 Phillips-head screwdriver to unscrew it.

    Op nieuwere modellen moet je de onderkant openwrikken en zal je de batterij daar aantreffen, er zijn geen ribbons los te maken

    Youry De Winter -

  9. XWqWGTQCxNZc3YOK
    XWqWGTQCxNZc3YOK
    ZZReDGe5r3WX1GnZ
    TKQs3uhOjAirEgLr

    • Using the thin end of the iFixit Plastic Opening Tool, pry the battery out of its place inside the laptop's base.

    • Next, use your fingers to pull the battery out of its position.

    Perfect, thanks much!

    Kevin Finerty -

  10. TU1EEMFcYbwwqXn5

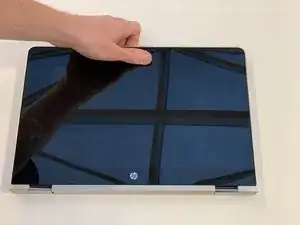

    • Orient the laptop so it is in tablet mode.

    You already told them to do this in step 3.

    Alex Watkins -

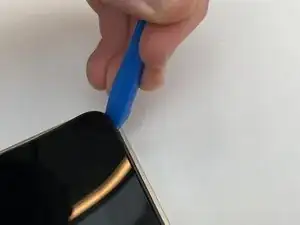

  11. JZNb2QqgOBPShuSd
    JZNb2QqgOBPShuSd
    Ciycrb6oTvGrRUGE

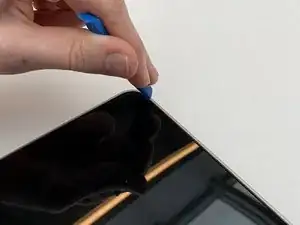

    • Wedge the edge of the iFixit Plastic Opening Tool between the outer casing and the screen and begin prying the screen away from its casing.

    • It is most effective to start this prying motion at one of the top corners.

    I would use a note bullet for the second part of the instruction. I think it might also be helpful to add some more detail about this process (e.g., wedge the plastic opening tool between the screen and outer casing of the laptop).

    Alex Watkins -

    WARNING!!! You can cause more damage to the screen during this process. Despite being extremely careful during this step the pressure from the pry tool caused a crack in the display. If the screen is already completely destroyed it’s no big deal, but if you’re only removing the display to attempt to reconnect the cables for troubleshooting you can cause more damage because the gap between the screen and display is so small.

    I’d suggest trying an even thinner tool if you attempt this.

    Jason -

  12. nSMrxDWjsAB1VAUy
    nSMrxDWjsAB1VAUy

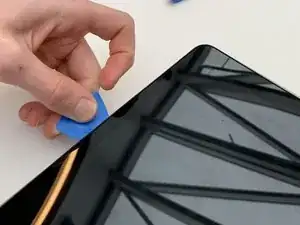

    ANrdSlXfDDNPSm5d

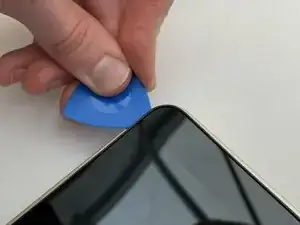

    • Once an initial separation between the casing and the screen has been made, use the iFixit Plastic Opening Picks to work your way around the screen, separating it from its casing.

    Can you rephrase these directions to be clearer?

    Alex Watkins -

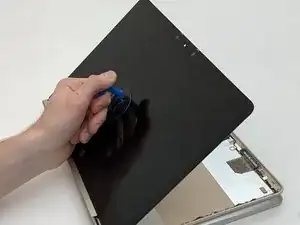

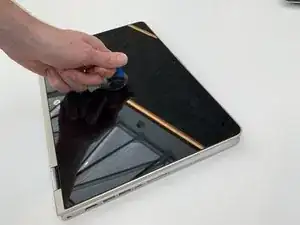

  13. BuLLaH2pDWllNAFi
    BuLLaH2pDWllNAFi
    SWOj3Zf1QZ2jIUFx

    • Plant the Suction Cup in the center of the screen.

    • After fully separating the screen from its casing using the iFixit Opening Picks, use the Suction Cup to lift the screen out of the casing.

    Try to avoid changing the orientation of the device between flipbook shots, as it kind of ruins the effect.

    Alex Watkins -

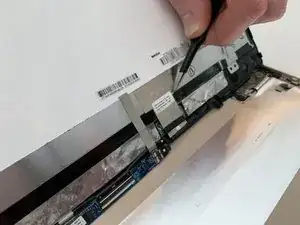

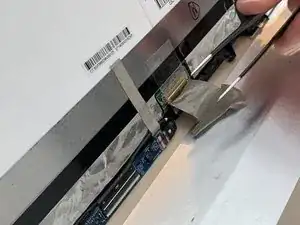

  14. 5QyC5BLxE14tqMxd
    5QyC5BLxE14tqMxd
    YZHFX6mqbXuRfC6x
    yPTMWgijDWgdGSvV

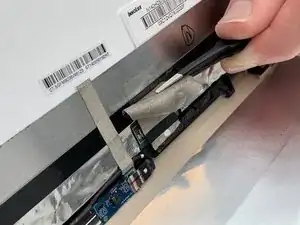

    • Using the Blunt Tweezers, remove the large piece of gray tape over the LCD Display connector.

    • This tape is located on the back of the screen assembly, on the bottom and near the hinges.

    Where on the device is this? I like the effect of the three shots, but I might remove one to have a top down orientation picture.

    Alex Watkins -

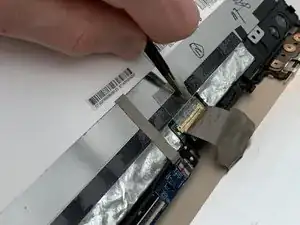

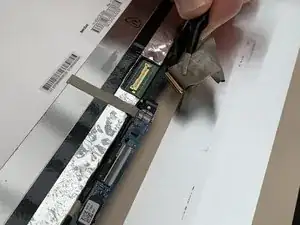

  15. ZjMNCi6eYlZDm5fc
    ZjMNCi6eYlZDm5fc
    3WBuLPcqUjEcfosw

    • Using the Blunt Tweezers, remove the clear tape over the LCD Display connector.

    • The LCD display connector is not a ZIF connector and it will slide out easily as you remove the second piece of tape.

    • If the connector does not slide out, the Blunt Tweezers can be used to gently pull it out of place.

    Note the comma splice here. Also, add detail about how to remove the connector to the step, instead of the note here.

    Alex Watkins -

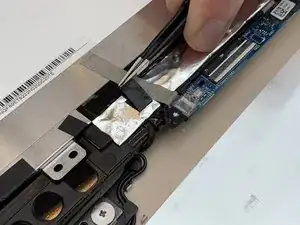

  16. luTQDyTEtBVpMheT
    luTQDyTEtBVpMheT
    JSq4kjQljnUgaP13

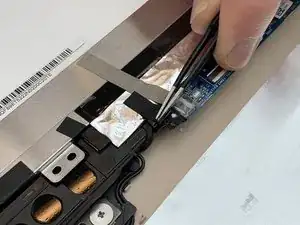

    • Using the Blunt Tweezers, remove the black tape covering the connection cable between the screen and the rest of the laptop.

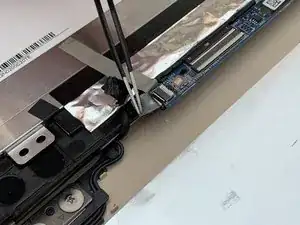

  17. E12ANnJkhPUjhOuY
    E12ANnJkhPUjhOuY

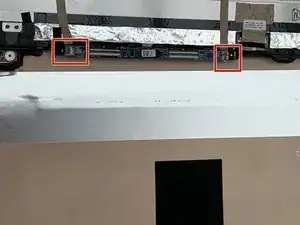

    YXLowlXJxhvDx3eU
    S6DswVFJWcl3gTSf

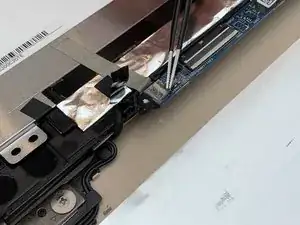

    • Using the Blunt Tweezers, remove the tape on top of the ZIF connectors for the gravity induction line and the touch line.

    • These connectors are both located to the left of LCD Display Connector on the bottom of the screen assembly.

    I would suggest zooming out a little more on the orientation shot to put something easily identifiable in the frame.

    Alex Watkins -

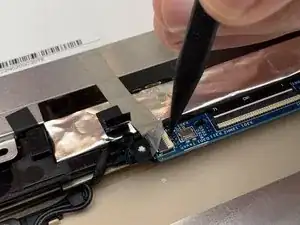

  18. ETH6RhYbdrTVQwld
    ETH6RhYbdrTVQwld
    kb6uEoDdMSUwiGFE

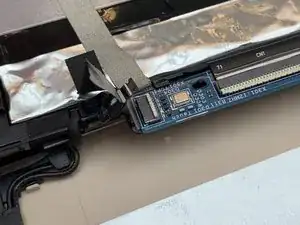

    NFKsRChElEqCZ1lL

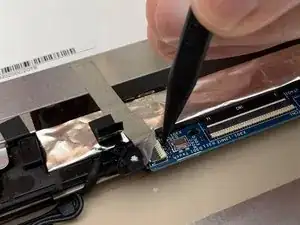

    • Using the pointed end of a #3 Plastic Spudger, flip the cap on the two ZIF connectors that attach the motherboard to the gravity induction line and the touch line.

    • After flipping the cap, gently pull the connectors out of their slots.

    See previous note—break this up into steps that are easier to follow.

    Alex Watkins -

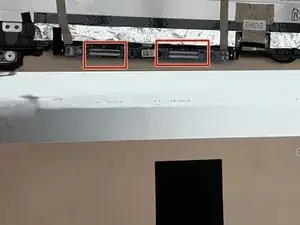

  19. YTQearmLOddIotrg
    YTQearmLOddIotrg
    WDApkcZL1jRlTJao

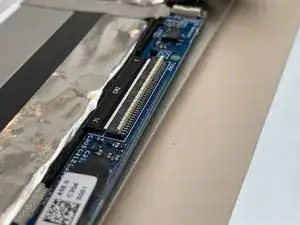

    q64yMUvKBHwGxuZX

    • Using the flat end of a plastic Spudger, flip up the cap on the two ZIF connectors covering the gravity induction line and the touch line.

    Here, the orientation of the picture changes again, which is a bit confusing.

    Alex Watkins -

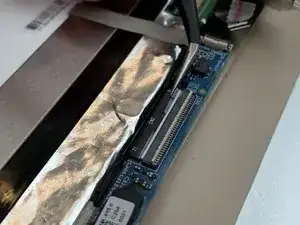

  20. Lo22ySkmhuqV3CuB
    Lo22ySkmhuqV3CuB
    xaLiGo2F5xXsmcXS

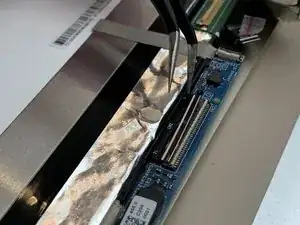

    wyHMxrQDPyPM1C6K

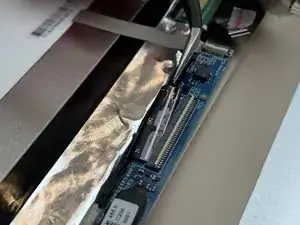

    • Using the Angled Tweezers, pull the ZIF connectors out of their housing.

    Great use of the flipbook style here. This is why maintaining the correct orientation is so important.

    Alex Watkins -

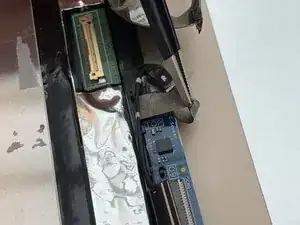

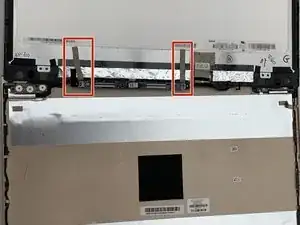

  21. MkanTRYdMNwXGbeb
    MkanTRYdMNwXGbeb

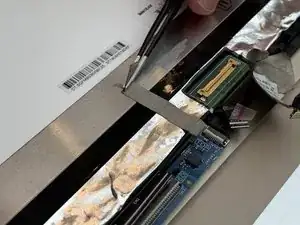

    ZUg2gsCPQRhaUYAy
    cSkgoBWOVVsyAUSG

    • Using the Blunt Tweezers, remove the two grey pieces of tape that cover the cable.

    • There is a third piece of tape secured around the wire. This piece of tape should come out easily when the wire is pulled out in the next step, so there is no need to remove it here.

    Make sure to use red bullets to coincide with the markup.

    Alex Watkins -

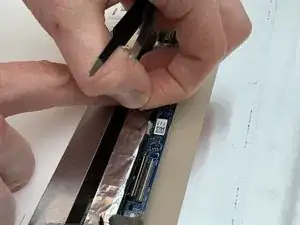

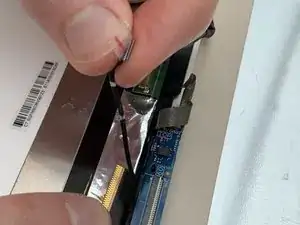

  22. 3Jwb6GBDefdx2pK3
    3Jwb6GBDefdx2pK3
    CM2LFMBJmc6KUwUf

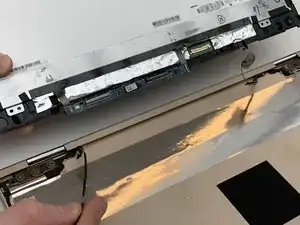

    4FWLl6yC5WeOE5y1

    • Slowly pull the cable out of its track. (You may need to use the tweezers to grab the cable if it is stuck under a plastic piece in the track).

    • This cable is secured around many plastic notches in the casing. You should be able to pull out the cable, just do it slowly and be mindful of the areas where it may get caught.

    • After removing the cable, remove the screen assembly from the laptop casing.

    Be sure to add steps to show you actually removing the screen and how to do so. Also, remember to integrate actual directions into bullets, instead of having them in special bullets.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
