HP Pavilion x360 14m-cd0003dx Fan Replacement

Geschrieben von: Riley McMorrow
  • Kommentare: 0
HP Pavilion x360 14m-cd0003dx Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide helps you with removal and replacing the Heat Sink and Fan for HP Pavilion x360 14m-cd0003dx laptop. If your computer is getting heated too often during the use, it may need to be replaced.

For further information to determine if the Heat Sink and Fan needs to be replaced, please refer to this troubleshooting guide.

  1. mjJFOyqVZDg5PHOU

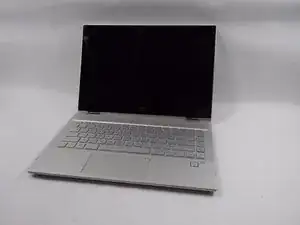

    • Turn off the computer.

    • Disconnect the power cord and any external devices connected to the computer.

    • Make sure the device is completely turned off or else you may risk injury through electric shock.

  2. VqcFAPpymSYg1TJr
    VqcFAPpymSYg1TJr
    sDlgpNcNi5MNmxEH

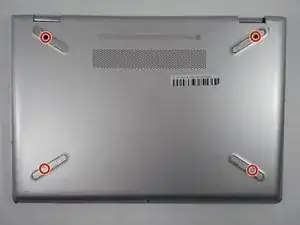

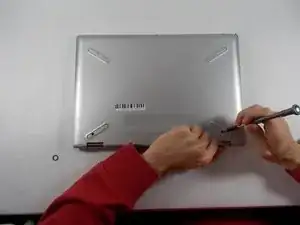

    • Flip the device so that the back plate of the laptop is up.

    • Use a Phillips #0 screwdriver to remove the four 6 mm Phillips screws from the bottom cover.

    • You might have to use a spudger to remove any rubber bezels that cover the screws.

    • Pry off the back cover with the spudger tool.

  3. pHw1BhTFE5gXO3Ke
    pHw1BhTFE5gXO3Ke
    NthpVL32XwwTSYUO

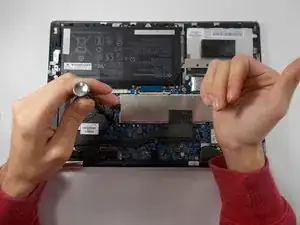

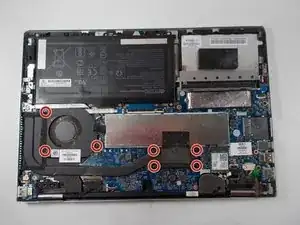

    • Use a Phillips #00 screwdriver to remove the seven 5 mm screws that secure the fan and heatsink.

  4. xIIIQlAWlDYLN1JL

    • Peel back the retention tape that secures the heat sink assembly.

  5. TFMvj2FdcdqtDefs

    • Disconnect the fan cable from the connector on the system board.

  6. AF5WTfdPXVqcNI6K

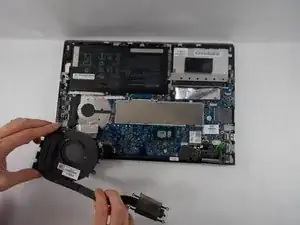

    • Remove the heat sink assembly from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
