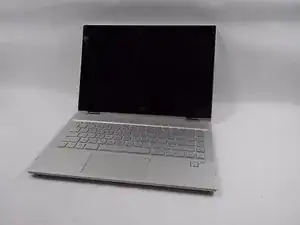

This guide helps you with removal and replacing the Screen for HP Pavilion x360 14m-cd0003dx laptop. If your computer powers on, but you see a blank screen or glitches, the screen may need to be replaced.
For further information to determine if the Screen needs to be replaced, please refer to this troubleshooting guide.
-
-
Turn off the computer.
-
Disconnect the power cord and any external devices connected to the computer.
-
-
-

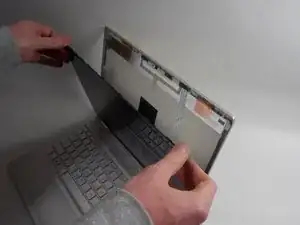

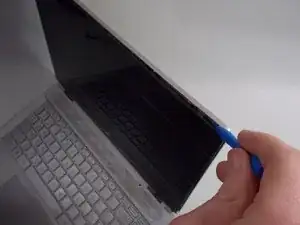

Use a plastic opening tool to carefully separate the screen from the plastic frame.
-
Work along the top first, and then down the left and right sides.
-
-
-

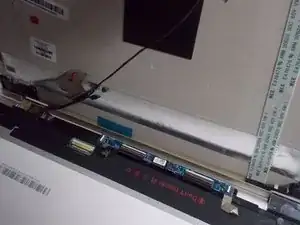

The next few steps involve disconnecting the screen from the laptop in several places.
-

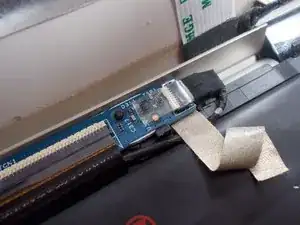

The first place is connected to the left side of the thin blue board at the top.
-

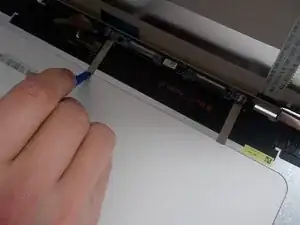

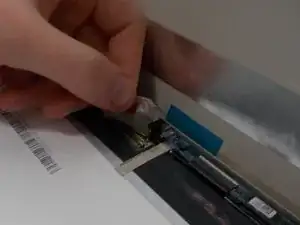

Peel back the clear adhesive and remove the pin header from the port on the blue board.
-
-
-

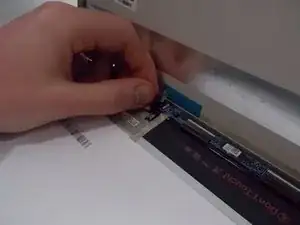

The next place is underneath the gray adhesive. Peel back this adhesive to expose the connection underneath.
-

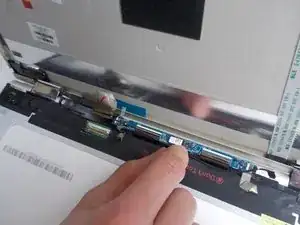

Disconnect the gold pin header from its port.
-
-
-

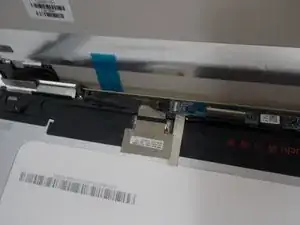

Repeat Step 4 for the connection on the right side.
-

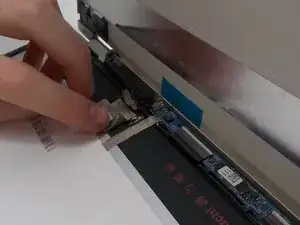

Peel the clear adhesive and remove connection.
-
-
-
Peel the thin gray adhesive strips.
-

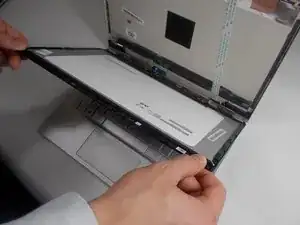

Pull out the thin black cable underneath these strips. It is the same black cable that was disconnected in the previous steps.
-
To reassemble your device, follow these instructions in reverse order.
