Use this guide to replace the RAM in an HP Pavilion x360 15t-br000.

Signs of a dysfunctional RAM stick can be the slowing of your operating system as well as crashes during computer startup. By replacing the RAM, the operating system’s efficiency can be dramatically increased and these problems can be resolved.

Remember to shut down the computer before beginning the replacement.

  1. JnAox5qprMbAZUnA
    JnAox5qprMbAZUnA
    65YGvDeTLWlB1hrP
    1hrRkKHHPBlDjWOw
    • Remove the covers to access the screws attached to the back cover of the device.

    • Remove six 3mm screws using the Phillips #0 screwdriver.

  2. AX21OtKVTHU1Donx
    AX21OtKVTHU1Donx
    oWlIwVS3JbCCHdN4
    YcTIo3xgJpqQbPoc
    • Use a metal spudger to loosen the four corners of the keyboard panel. The corner is circled red as shown in the first image.

    • Disconnect the keyboard panel cables under the upper case.

    • Remove the keyboard panel from the device.

  3. oTEFyfiQdjllnPAB
    • Disconnect the battery cable from the device.

  4. hQ3I6eFJYo3HTtoM
    hQ3I6eFJYo3HTtoM
    5cHUZkGU5LmaZRfD

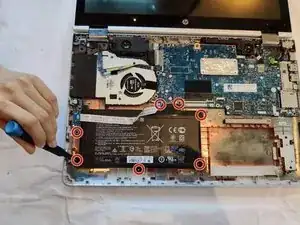

    • Remove the seven Phillips #0 4.5 mm screws.

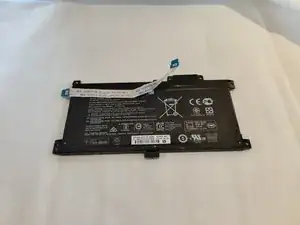

    • Remove the battery from the device.

  5. wFpMh5yOqHSAPcsd
    wFpMh5yOqHSAPcsd
    XA3IQQ1ZinRGge2N

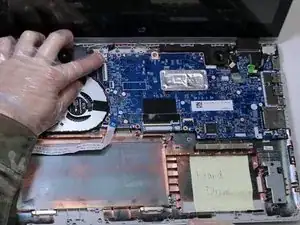

    • Disconnect the five cable connections to the motherboard.

  6. LUGCpYySHSanxRpG

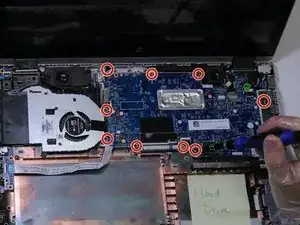

    • Unscrew the nine 3mm mounting screws on the motherboard using the Phillips #0 screwdriver.

  7. OqvVZNbuMlFy6Jd2
    OqvVZNbuMlFy6Jd2
    qpkMxcZILqPAqbEx

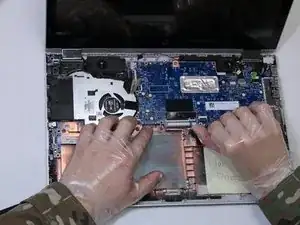

    • Lift the motherboard carefully then remove the motherboard.

  8. n2sSkY3rjIYBnBC5

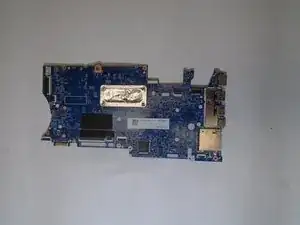

    • Turn over motherboard and remove the RAM carefully from motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
