If your HP Pavilion x360 Convertible 14-dw1025nr is not displaying graphics or is not distributing audio, the laptop's motherboard may be damaged. Use this guide to replace it.
The motherboard is the backbone of a laptop and controls multiple parts within the laptop.
Replacing the motherboard of a laptop is not a common procedure. Most replacements within a laptop are for components that are attached to the motherboard. The motherboard should only need to be replaced in extreme situations where a separate component attached to the motherboard cannot be replaced.
Replacing the motherboard is not a difficult task, but it does require a lot of steps and there will be many small pieces to keep track of. There are various screws and a few loose plastic parts that will come out when exposing the motherboard. This replacement will not require any difficult tasks such as soldering or rewiring.
-
-

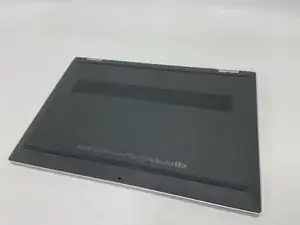

Turn off the device and set it upside down. Orient the hinges away from you.
-

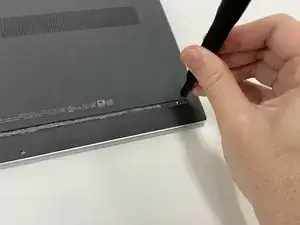

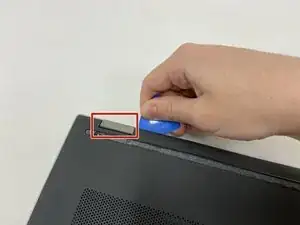

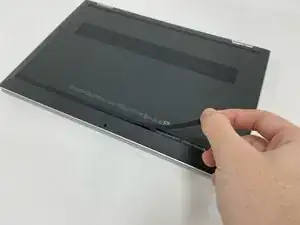

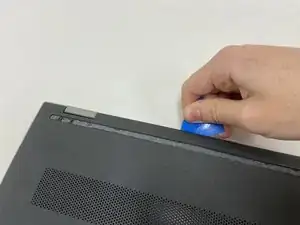

Wedge the opening pick under the grip. Lift the end of the grip.
-
Pull the grip off all the way. Repeat for the second grip.
-
-
-

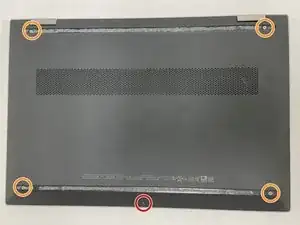

Use a Phillips #0 screwdriver to remove the 3 mm screw from the center bottom.
-
Use a Phillips #1 screwdriver to remove the 6 mm screw from all four corners of the bottom cover.
-
-
-

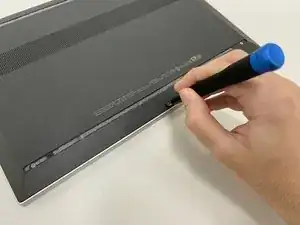

Use the opening pick to separate the back panel from the device.
-
Begin near the hinge and carefully follow the perimeter until you have taken the pick around all four sides.
-

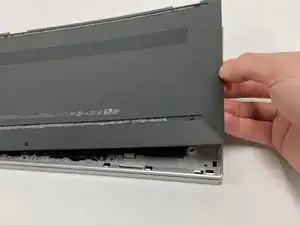

Lift the panel off.
-
-
-

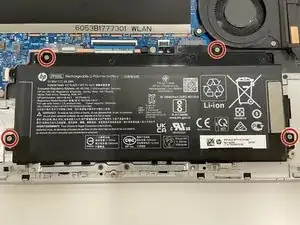

Use a Phillips #1 screwdriver to remove all four of the 4 mm screws that secure each corner of the battery.
-
-
-

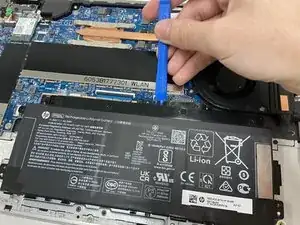

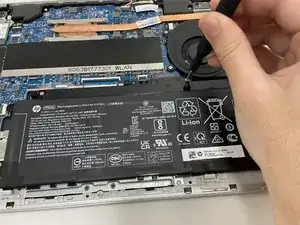

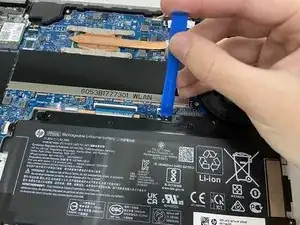

Use the opening tool near the connector to gently apply pressure and lift the battery away from the device.
-

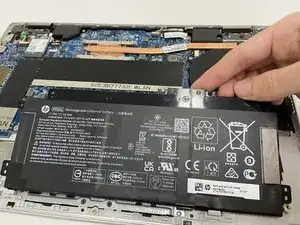

Once loose, lift the battery from the connector side to separate it from the device.
-
-
-

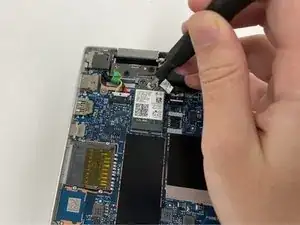

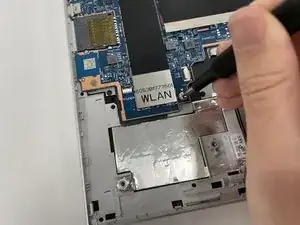

Remove the sticker covering the touch sensor connector using the angled tweezers.
-

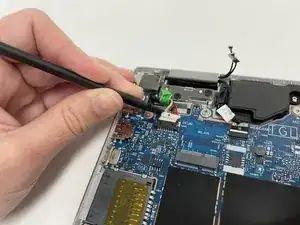

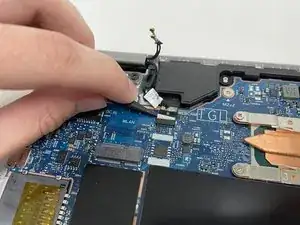

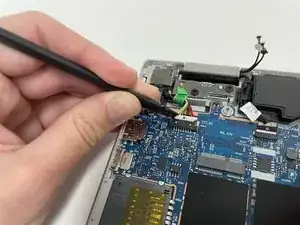

Firmly pinch the plastic loop and pull straight up to disconnect the touch sensor.
-
-
-

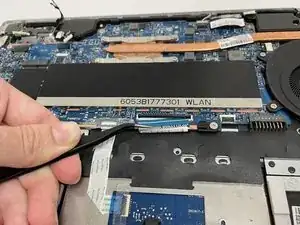

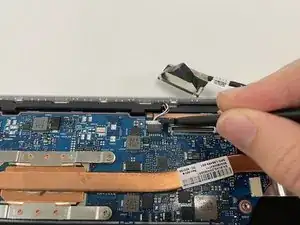

Use the spudger to lift the black flap of the keyboard connector.
-
Use the angled tweezers to carefully grip and pull out the ribbon cable.
-
-
-

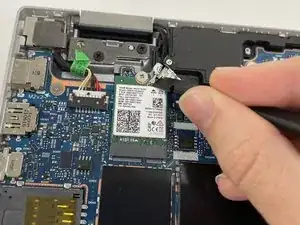

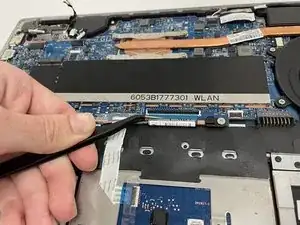

Use the angled tweezers to remove the clear sticker covering the trackpad connector.
-

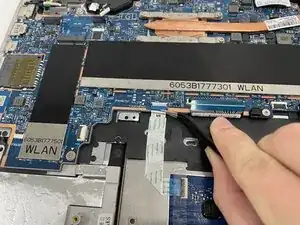

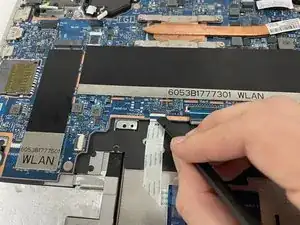

Use the spudger to lift the white flap of the connector.
-

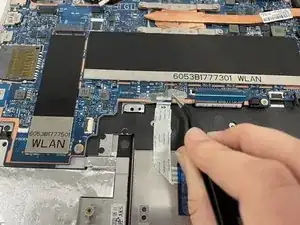

Use the angled tweezers to pull out the ribbon cable.
-
-
-

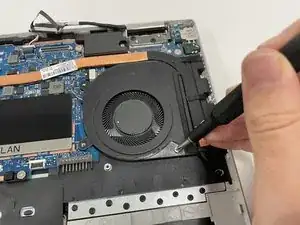

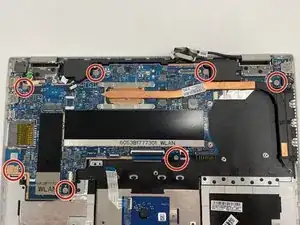

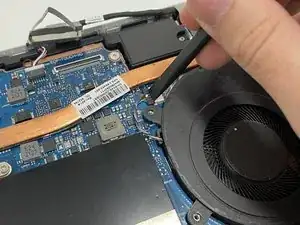

Use PH1 to remove the 3 4mm screws holding the fan.
-

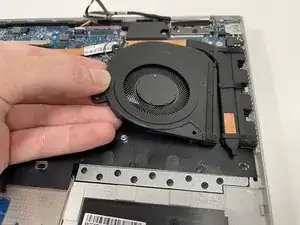

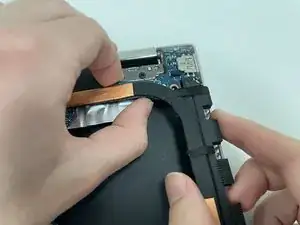

Lift the fan up and away from the heat pipe.
-
-
-

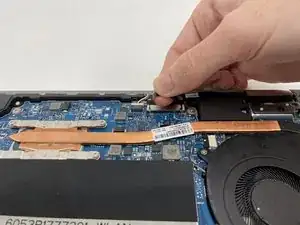

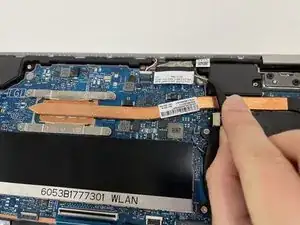

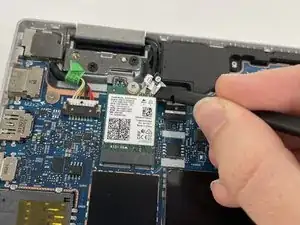

Slightly lift the heat pipe with one hand.
-

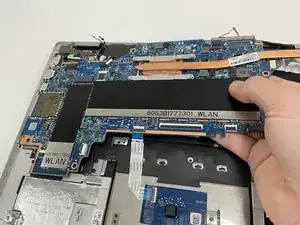

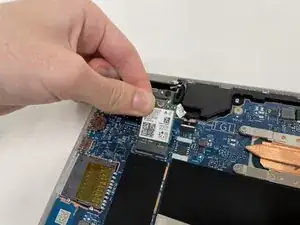

Using your other hand, lift the small part of the motherboard up and away from the laptop frame.
-
-
-

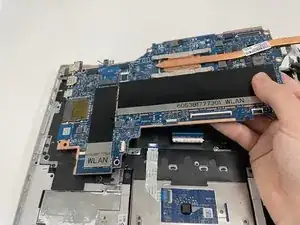

Lift the right side of the large portion of the motherboard up and away from the frame of the laptop.
-
To reassemble your device, follow these instructions in reverse order.
