HP Pavilion x360 m3-u103dx Battery Replacement

Geschrieben von: Meaghan Hyatt
  • Kommentare: 6
HP Pavilion x360 m3-u103dx Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

In this guide you will be required to remove the keyboard from the device in order to remove the battery. You will need to use a iFixit Pro Tech Toolkit.

This task requires patience and attention to detail.

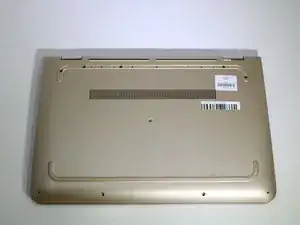

  1. lIiDIq1SKLM41iV1

    • Power off device.

    • Flip the laptop over.

    • Working on your device while its powered on may cause damage to your device.

    Missing step: remove the screws on the bottom. This photo just shows the screws already removed.

    Aidan Gibson -

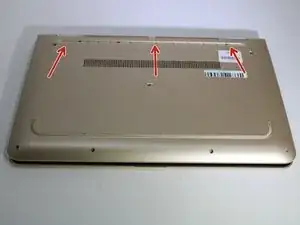

  2. hENg6UKwEl6v4kRf

    • Remove rubber foot closest to computer hinge with a Metal Spudger.

  3. OFPFJjArSSXSCAtE

    • Remove all screws from base using a Phillips head 00 screwdriver.

    • 5 Phillip 2.4 x 5.7 mm screws.

    • 5 Phillips 2.8 x 5.0 mm screws.

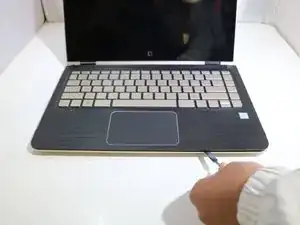

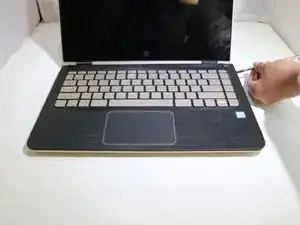

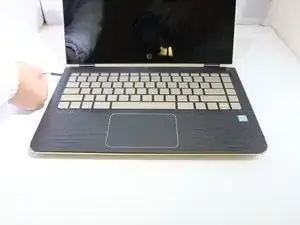

  4. JBORbXNNFnSQOrQ3
    JBORbXNNFnSQOrQ3
    omnfgAHbNm2VuIuV
    Ltu1XyxhvMLOegeP

    • Open computer and pry open keyboard panel using the Metal Spudger. Apply little pressure then increase until keyboard pops away from motherboard.

    • Be careful not to pull or disconnect ribbon cables first.

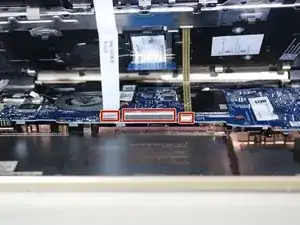

  5. 2XDIbqmckWaMHrqn
    2XDIbqmckWaMHrqn
    OjxwxHQJnShgo2S6

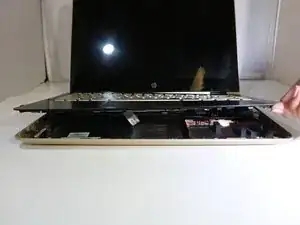

    • Gently lift the keyboard on the mouse pad side, but do not remove.

    • The keyboard is still connected by three ribbon cables.

    • Remove three connected ribbon wires connecting keyboard to frame by gently disconnecting them from the motherboard.

    How do you disconnect the three cables?

    andrea alley -

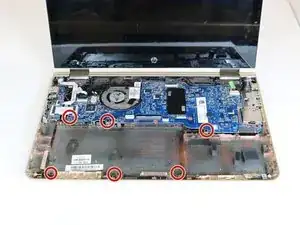

  6. YXntaOaH5GZtvdbZ

    • Use a Phillips #00 screwdriver to remove six screws around the battery.

    • 6 Phillips 2.0 x 4.6 mm screws.

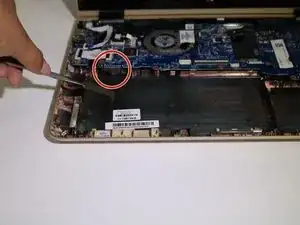

  7. lpIMMsgvXNR1ORxD
    lpIMMsgvXNR1ORxD
    NqMmtHfSGmBXSfKd

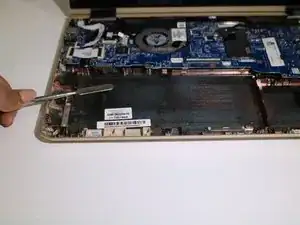

    • Gently lift the battery up and away from the casing.

    • Carefully remove the battery from its connecting port.

    There are 4 additional screws that should be removed that can be found under rubber coverings underneath, on the front side of the laptop

    Edwin Pagan -

    There are 4 additional screws that should be removed that can be found under rubber coverings underneath, on the front side of the laptop.

    Edwin Pagan -

    Dp you have the part number for the battery?

    T FHL -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Meaghan Hyatt

Mitglied seit: 17/01/19

355 Reputation

Ein Kommentar

Can i use the laptop even without a battery??

PAPISSS PH -
