Einleitung
Make sure device is powered off and unplugged from any power source.
-
-
Remove the rubber foot with a Metal spudger
-

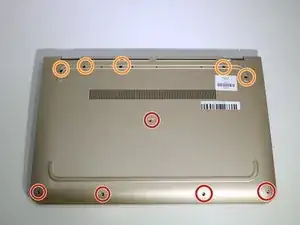

Remove 5 Phillip 2.4 x 5.7mm screws using a PH0 Phillips head screwdriver.
-
Remove 5 Phillips 2.8 x 5.0mm screws using a PH0 Phillips head screwdriver.
-
-
-

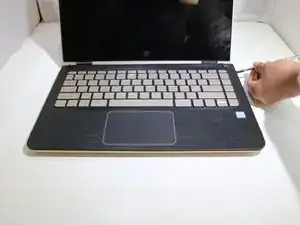

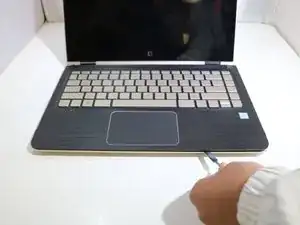

Open computer and pry open keyboard panel using the Metal Spudger. Apply little pressure then increase until keyboard pops away from motherboard.
-

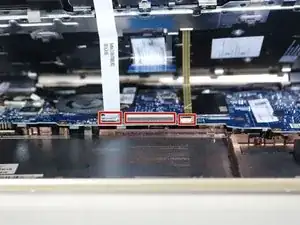

Gently lift keyboard on the mouse pad side. Remove three connected ribbon wires connecting keyboard to frame by gently disconnecting them from the motherboard.
-
-
-

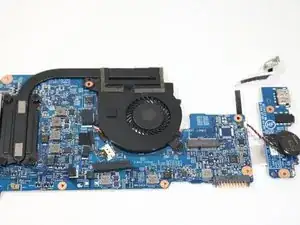

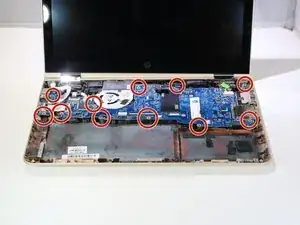

Remove the motherboard gently from the base of the laptop.
-

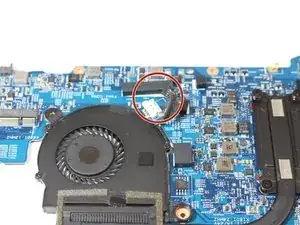

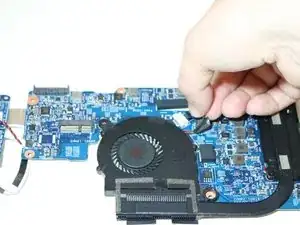

Disconnect the fastened cables from the motherboard by carefully pushing the cable's plastic edges using the metal Spudger.
-
-
-

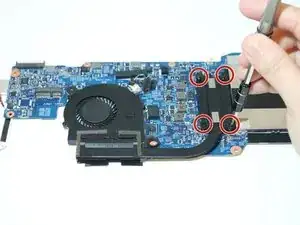

Using the Phillips 00 Screw Driver. remove 4 screws from the heat sink.
-

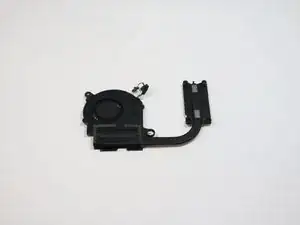

Remove any adhesive tape. Detach the fan/heat sink.
-
To reassemble your device, follow these instructions in reverse order.
