HP Pavilion ze5000 Screen Replacement

Geschrieben von: Eric Beaudry

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

This guide will explain how to replace the screen, assuming none of the electric connections have been damaged and the screen is the only damaged part. Some of the inner parts have sharp, metal corner and minor injury can occur if you rush through the guide.

Werkzeuge

Schritt 1

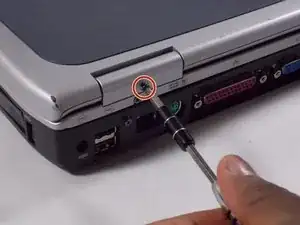

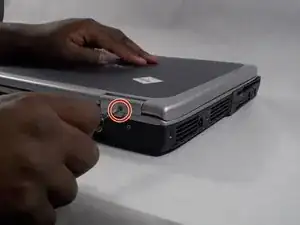

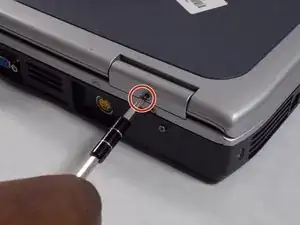

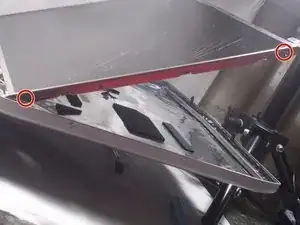

Remove two 5.0 mm Philips #0 screws on the hinge of the device

Schritt 2

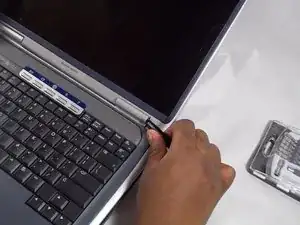

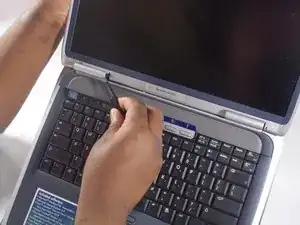

Using tweezers, gently pull on the hinges to remove the plastic case connected to the hinges

Schritt 3

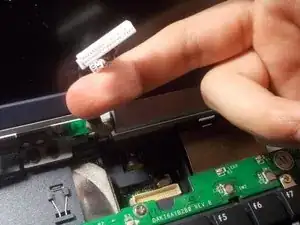

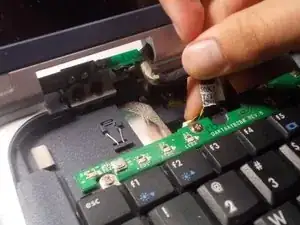

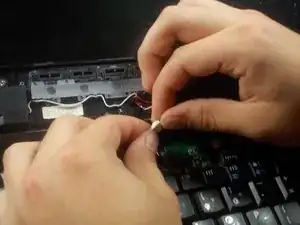

Remove the connection between the plastic case and interior of the device

Schritt 4

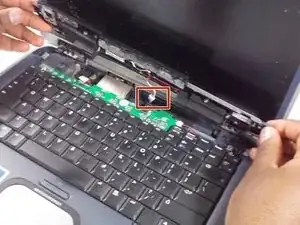

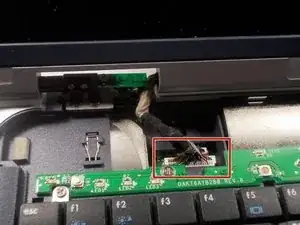

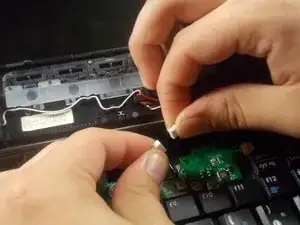

Remove the connection from the exposed hinge and interior of the device

Schritt 5

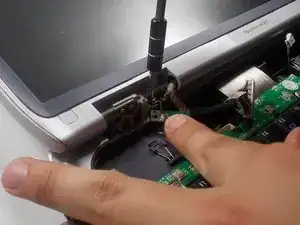

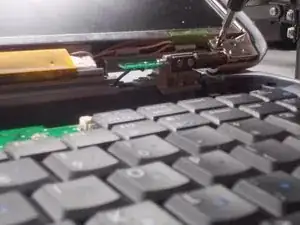

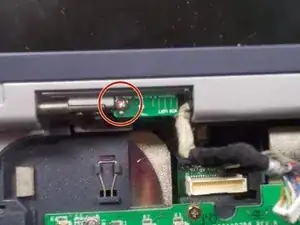

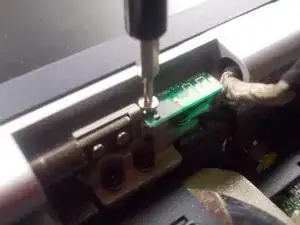

Remove the 3.5 mm philips #00 screw on the small circuit board on the hinge

Schritt 6

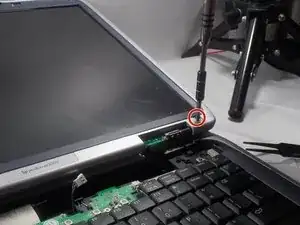

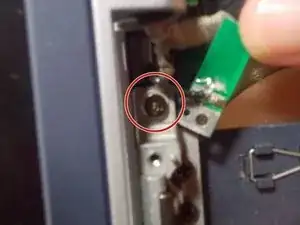

Remove the 5.0 mm philips #0 screw that was hidden underneath the small circuit board

Schritt 7

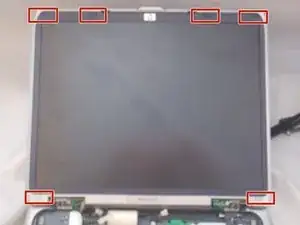

Remove the 6 plastic caps located in the four corners of the screen and the top of the screen
It may be easier to use tweezers for this part

Schritt 8

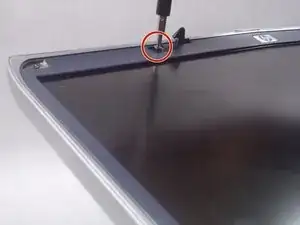

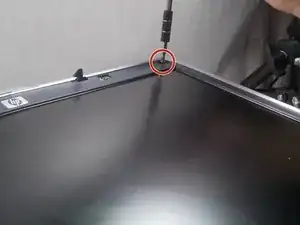

Unscrew the six 5.0 mm Philips #0 screws underneath the caps

Schritt 9

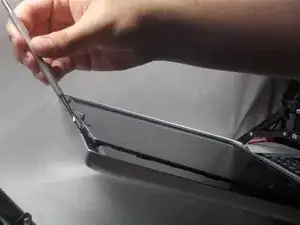

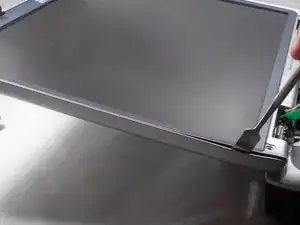

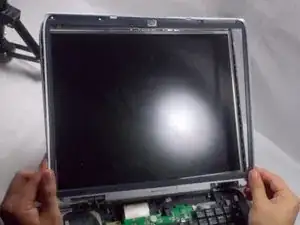

Using a spudger, pry the plastic casing off of the screen.

Schritt 10

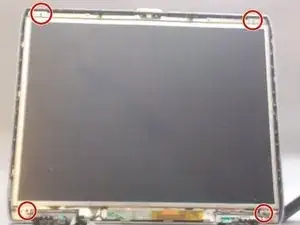

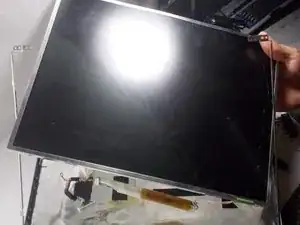

Remove four 5.0 mm Philips #0 screws located in the corners of the screen
These screws locations will be close to the screws locations in step 2.
During reassembly, make sure you do not confuse the proper screw placements from this step and step 4.
