HP Pavilion zv5000 Hard Drive Replacement

Geschrieben von: Eliza Marks
  • Kommentare: 2
HP Pavilion zv5000 Hard Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

3 - 7 Minuten

Einleitung

Are you having issues saving files to your computer? Have you already tried deleting unwanted files? Replacing the hard drive may solve these issues.

  1. iMc5GNeA1oLT2lJj

    • Make sure that your device is properly shut down and unplugged from any outlet.

    • Flip Pavilion over so that the bottom faces up and locate the battery in the bottom left corner.

  2. M5uvopIeBfV4RErN
    M5uvopIeBfV4RErN
    vCLuRquEHrywPu3O

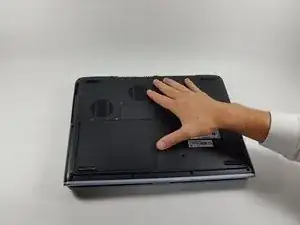

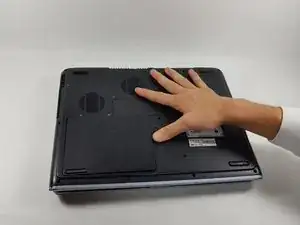

    • Press and slide up the battery release tab with your thumb until the battery pops out of place.

  3. 2COFmga31eB1ymOc
    2COFmga31eB1ymOc
    5cUV5WrIpVjlTkQJ

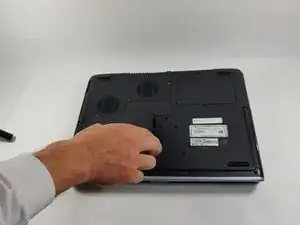

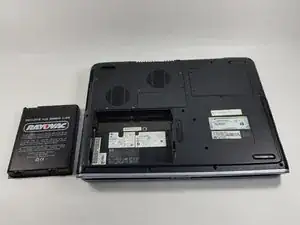

    • Using two fingers, pry the rest of the battery out of the socket.

  4. 4nAvMLgbmL35YMPM
    4nAvMLgbmL35YMPM
    SlAdZjI2ObTTBSAd

    • Make sure that the Pavilion is completely powered down and unplugged. Failure to do so may result in an electrical shock.

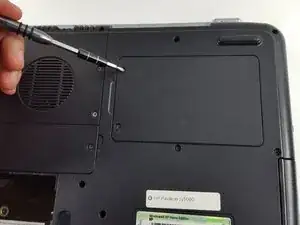

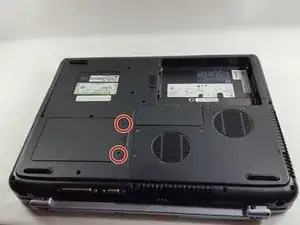

    • Using the Phillips #0 screwdriver, unscrew the two Phillips PM 2.5X6.0mm screws.

    • The two screws do not come out of the hard drive assembly, they simply disconnect the assembly from the laptop.

  5. iw6jNXMOTAAcoSWb
    iw6jNXMOTAAcoSWb
    4NpNKvAHbHVUssr5

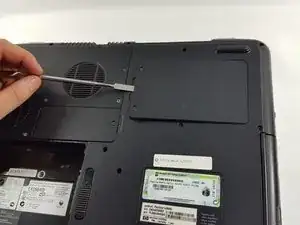

    • Place the spudger underneath the cover of the hard drive and push up gently until the hard drive pops out of place.

    • Completely remove the hard drive from its socket.

    • If the plastic spudger is not sturdy enough to pop the hard drive out of place, try carefully using the metal spudger.

    If you want to test the disk on another device like the BYTECC adapter kiy, you may have to remove the plastic adapter that covers the conector’s pins. Just pull it straight out and you wil get the normal pin config.

    Pierre B -

Abschluss

To reassemble your device, follow these instructions in reverse order.
