Einleitung

  1. ZBivCteqBuYT4JDD
    ZBivCteqBuYT4JDD
    JPJU3OlcuZUkWShb
    • Place the laptop upside down.

  2. juqvfwqLxsh1ntOP
    juqvfwqLxsh1ntOP
    YyEpYSfS6P3DGb5h
    • Find the battery lock latch on the top left corner.

    • Slide the latch to the right position.

  3. mghjRvRXlDsRQCuk
    mghjRvRXlDsRQCuk
    MtNQtC4DXkXtve4a
    cK3LBmcP5JxbaTJd
    • Find the battery release latch on the top right corner.

    • Slide and hold the latch towards the left to cover the battery icon.

    • Carefully slide the battery outwards.

  4. iJbZrFyqcbMHMukw
    • Turn the laptop upside down with the base of the laptop facing you.

    • Remove the grippers positioned at the top right and top left of the laptop to access the two additional screws.

    • Use a 1.5mm Hex screwdriver to remove twelve 10mm screws.

  5. anJpimWykADKepbW
    anJpimWykADKepbW
    IUveHZwKuvuwpsSF
    Paj2DFtCAZeWW2Wq
    • Press the eject button.

    • Hold and carefully slide the disc drive out of the laptop.

  6. OmlFW2N1ODS1C3DC
    OmlFW2N1ODS1C3DC
    jVh2yGOfELQeBC3p
    O2cLUhAHkE1re5CQ
    • Using the Jimmy, create a separation between the keyboard and bottom panel.

    • Slide around the body of the panel until the separation is big enough for you to use .your fingers.

    • Separate the keyboard and bottom panel.

  7. XLUP6RZlkbSNpyYm
    XLUP6RZlkbSNpyYm
    KsFmDnGAMcjEQ2Tb
    gFADWXsFmOfIiikK

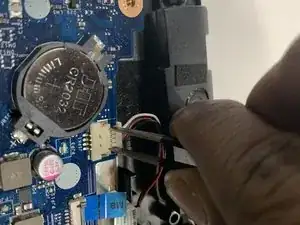

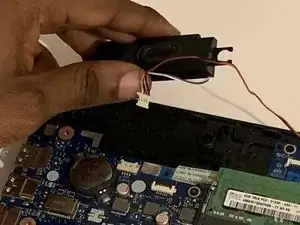

    • Using tweezers, disconnect the left speakers from the motherboard.

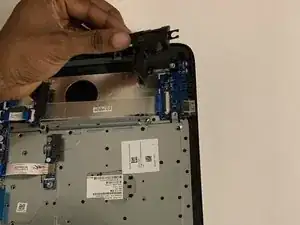

    • Remove the left and right speakers from the laptop.

  8. OBd4HIhfLcaQZRyL
    OBd4HIhfLcaQZRyL
    LQpqnEbcgbEsnYaS

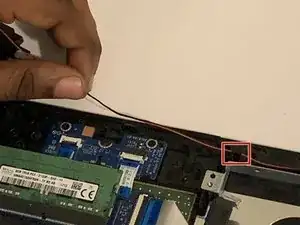

    • Slide the wires connecting both speakers out from the black stoppers.

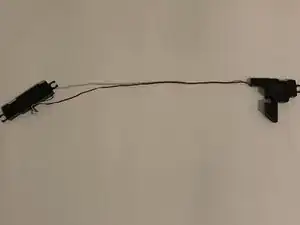

    • You can now replace the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
