You will need to remove many parts of the computer. The key is to be careful when removing some parts of the computer.

  1. wJIooHLCCVBot1Cr
    wJIooHLCCVBot1Cr
    3KSBCACr2qeeL1kU
    • Shut down the computer.

    • Shutting down the computer by holding power button can cause damage to computer.

    • Turn computer upside down so the base is facing upward.

  2. XoNdWehacaXcBePk
    XoNdWehacaXcBePk
    M1UUuHiGZPLcgJxI
    2FIRMIOFoYoMjZ1R
    • Slide latch next to battery icon until battery pops up.

    • Pull the battery away from the computer until completely detached.

  3. vbBvISUs1TQrqGGm
    vbBvISUs1TQrqGGm
    NYTVFvuBAVTkQNKt
    tuG3MjlbblMFUAPT
    • Position the computer so the front is towards you.

    • Remove two 5mm Phillips #1 screws

    • Slide the hard drive cover towards the empty battery spot and remove it.

  4. Yel1CSFxdvXUv6lo
    Yel1CSFxdvXUv6lo
    cFcOV21eSKXqaRec
    lGwLXyfFNJ4m5fZr
    • Loosen two 5mm Phillips #1 screws securing plastic cover, until cover is detachable.

    • Slide cover toward empty battery area and remove it.

  5. 1gMTukErjmAMSBL6
    • Disconnect the hard drive cable that is plugged in.

    • Lift the tab on the hard drive to pull it out of the computer.

    • Hard Drive is removed.

  6. EEOOfjFW1T3bxlDv
    EEOOfjFW1T3bxlDv
    KjiO3cZOVPhNCs3N
    PV4xYpXN5JPcYqln

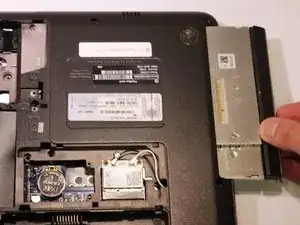

    • Remove one Phillips M2.5X5.0 Screw that is securing the optical drive.

    • With the nylon spudger, push the optical drive until you can grab it.

    • Pull the optical drive all the way out, until removed.

  7. ZYJ2s4tVTKj3MuQg
    ZYJ2s4tVTKj3MuQg
    FL2jOIysP5HZmRrR
    jcojEPSxrbIqCQoY

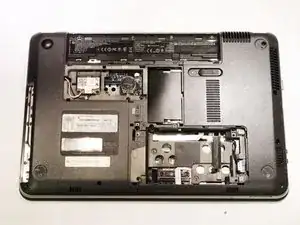

    • Remove 2 Phillips M2.5X6.5 screws from the back of the computer.

    • Keyboard icons next to keyboard bolts

    • Turn the computer over, and open the computer as far as possible without breaking it.

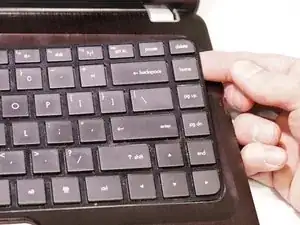

    • Release the top of the keyboard by lifting up and gently pull the top up until the whole keyboard is up.

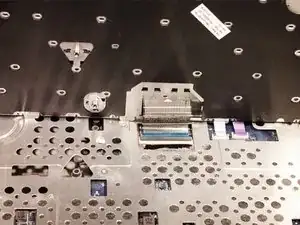

    • Lift plastic cover to release the ZIF connector that is holding the keyboard in place. Then remove the keyboard.

  8. RG6sRy3YO3ereSEQ

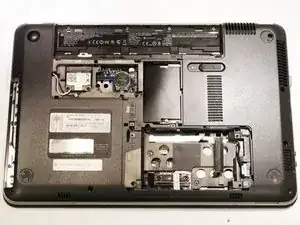

    • Turn the computer upside down with the front towards you, and, remove the two rubber feet near the battery.

    • Organizing screws would be helpful

    • Remove 13 Phillips M2.0X7.0 screws.

    • Remove 6 Phillips M2.0X2.0 broad head screws.

    • Turn computer over and open the computer as far as possible without breaking it.

  9. EwhF2l3htMWFpgn1
    EwhF2l3htMWFpgn1
    uhTiOmV5ktkV4CBX
    OMJMWFZTbA3oDCE1

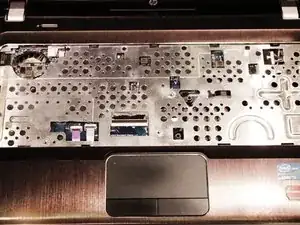

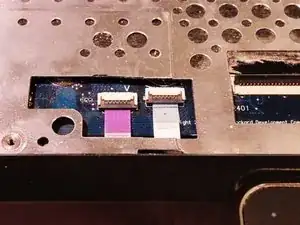

    • Release 2 ZIF connectors where the touch pad cable and fingerprint reader are connected.

    • Remove 4 Phillips M2.0X4.0 screws near the top of the keyboard area.

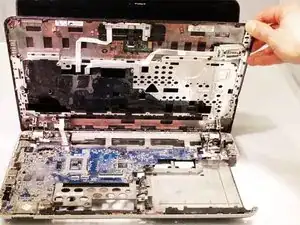

    • Lift top cover from the base and release the ZIF connector that the power button is connected to. The cover should now be removed.

    • Using a nylon spudger could be helpful

    • Take the top cover and put it upside down and remove one Phillips M2.0X3.0 screw.

Abschluss

To reassemble your device, follow these instructions in reverse order.
