HP ProBook 4320t Touchpad Replacement Guide

Geschrieben von: Joshua
  • Kommentare: 0
HP ProBook 4320t Touchpad Replacement Guide

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

15 - 20 Minuten

Einleitung

If the touch pad becomes damaged it will need to be replaced in order for it to properly work. There are a good amount of steps in this process but, it is not too difficult.

  1. eJPQWwWwfpLmmrPo
    eJPQWwWwfpLmmrPo
    2TYHTHnYZJipYWSQ

    • Flip the laptop upside down and remove battery by pressing inward on the two latches holding the battery in.

  2. QDwMx1ZRBpZkEkNr
    QDwMx1ZRBpZkEkNr
    HwTZpyrDus6ipZEI

    • Unscrew the four (2.5 mm Phillips) screws (Use Phillips #0 Screwdriver).

  3. vfDtHGboeVeDUPmR

    • Flip laptop over and open it.

  4. 2RPAPievNLWkMjln

    • Slightly push up while lifting up on the power button panel to release the panel.

  5. wQ1PKuNqRsyPH4em

    • Unscrew the four (2.5 mm Phillips) screws holding the keyboard in (Use Phillips #0 Screwdriver).

  6. QWfMpR2gLrbvQK4a
    QWfMpR2gLrbvQK4a
    kXbFftDixY46Wdxt

    • Carefully (holding both sides of the keyboard), push up and lift slightly.

    • Keyboard is still connected via a ribbon cable.

    • Move the keyboard slightly to the left to have access to the keyboard ribbon cable.

  7. 4JYKaoI3xmpGFTaJ

    • Use the black spudger to lift the black latch holding the keyboard ribbon cable.

  8. VJ14TQZviqZGvLqJ

    • Unscrew the three (2.5 mm Phillips) screws holding the bottom touchpad panel.

  9. h4xiOyYUuAIoDHKx

    • Carefully slide the bottom panel to the right.

    • Keyboard is connected via a wire to the back of the panel.

  10. vLdYshY2a32TAmfx

    • Flip the bottom touchpad panel directly towards the screen, being sure to not lift it too high.

    • Keep an eye on the ZIF connector underneath, make sure it is not pulled accidentally.

  11. hWFxqSRyPYtLqvNf

    • Using the black spudger, slightly pry up on the ZIF connector and lift out the wire carefully.

  12. BKONt2NYCtQgjIMc

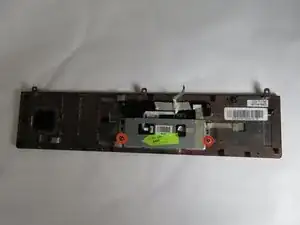

    • Unscrew the two (2.5 mm Phillips) screws on the touch pad retention panel (Use Phillips #0 screw driver).

  13. MHgX3DyvykgYIy5e

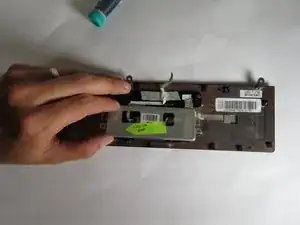

    • Slightly push the touch pad retention panel forward to remove from clasp and lift up.

  14. W3LJIKYFEUsV1Mqp

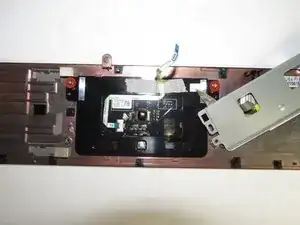

    • Unscrew the following two (2.0 mm Phillips) screws attached to the touchpad (Use Phillips #0 screw driver).

  15. WkcvcXP6F5bZMkLM

    • Slightly lift up the bottom of the touchpad and pull towards you to free the touchpad from the casing

Abschluss

To reassemble your device, follow these instructions in reverse order.
