HP ProBook 440 G1 Hard Disc Drive (HDD) Replacement

Geschrieben von: Ethan A Courtney
  • Kommentare: 0
HP ProBook 440 G1 Hard Disc Drive (HDD) Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

How to remove and replace the HDD on an HP ProBook 440 G1.

  1. fODLBkHedQBOnn5y
    fODLBkHedQBOnn5y
    SdWfSEGViRqauKGL

    • Make sure the laptop is turned off before you start.

    • Push and hold the release tab on the right and left toward the center.

  2. wAGEM1HCv1htPVMO
    wAGEM1HCv1htPVMO
    jwQJOY2ItQ3PXFPv

    • Pull the battery out.

  3. wobUa2ONdLJiYUCT
    wobUa2ONdLJiYUCT
    vUVfPXLRCWfOmJq3
    v15gpeynRq5VfdFu

    • Push and hold the release tabs on the right and left toward the center again.

  4. dsDxEjL5ONDoZEQQ

    • Slide the backplate off.

  5. arC5ZJv22txq3xeD
    arC5ZJv22txq3xeD
    TSUVX2llmw5Vw4t3

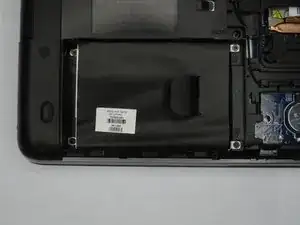

    • Locate the hard drive, opposite the battery across from the wireless card.

  6. 2qRwcgGBHv1CbSqt
    2qRwcgGBHv1CbSqt
    JZt3IhZ3nChroJga
    fQJELHX5fqx145Y5

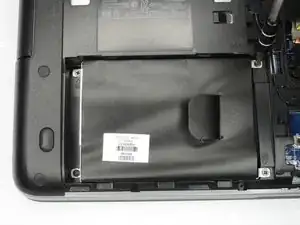

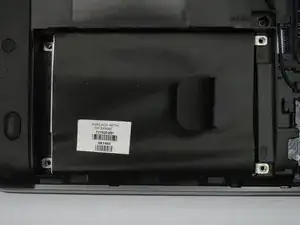

    • Remove all four Phillips #00 screws that hold the hard drive in place.

  7. NMQcQPDPy2VYkeLY
    NMQcQPDPy2VYkeLY
    bPMNNMLhRBJHn5vT
    dvC4QmwRPQZiQpPX

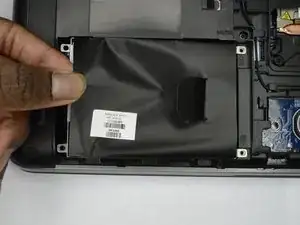

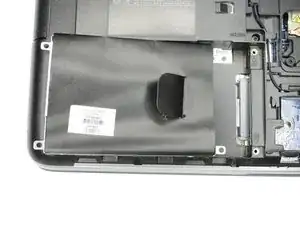

    • Lift up on the outer part of the hard drive.

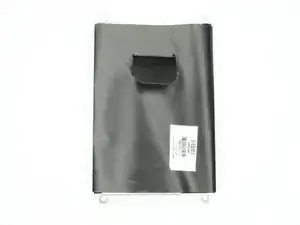

    • Pull the hard drive out.

  8. AEE5Ub4lA4XTShnH
    AEE5Ub4lA4XTShnH
    CHvjHGtue2OerGAU

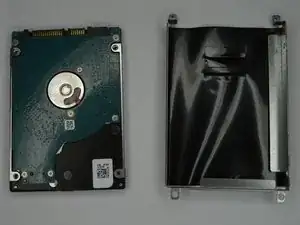

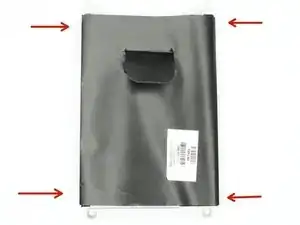

    • Remove the four Phillips #00 screws holding the HDD in the HDD cover.

    • The HDD should slide out after all screws are removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
