HP ProBook 440 G1 RAM Replacement

Geschrieben von: Ethan A Courtney
  • Kommentare: 0
HP ProBook 440 G1 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

2 Minuten

Einleitung

How to replace the RAM on an HP ProBook 440 G1.

  1. fODLBkHedQBOnn5y
    fODLBkHedQBOnn5y
    SdWfSEGViRqauKGL

    • Make sure the laptop is turned off before you start.

    • Push and hold the release tab on the right and left toward the center.

  2. wAGEM1HCv1htPVMO
    wAGEM1HCv1htPVMO
    jwQJOY2ItQ3PXFPv

    • Pull the battery out.

  3. wobUa2ONdLJiYUCT
    wobUa2ONdLJiYUCT
    vUVfPXLRCWfOmJq3
    v15gpeynRq5VfdFu

    • Push and hold the release tabs on the right and left toward the center again.

  4. dsDxEjL5ONDoZEQQ

    • Slide the backplate off.

  5. hHPy3sicAH2xYRcS
    hHPy3sicAH2xYRcS
    xIZBGhHTJFQbFuAh

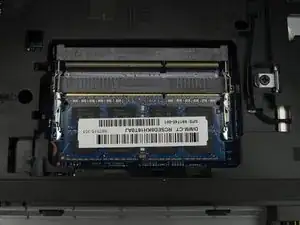

    • Locate the RAM, in the middle of the laptop near the battery.

  6. hkBu1HmSnn3GePCp
    hkBu1HmSnn3GePCp
    IgUEGCG15Ob2YiwT
    kAIH3e5PqCRkHvTx

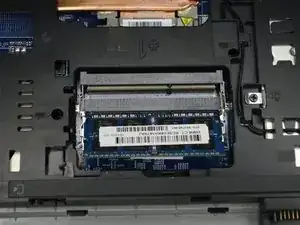

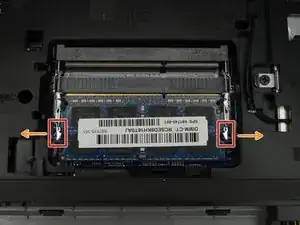

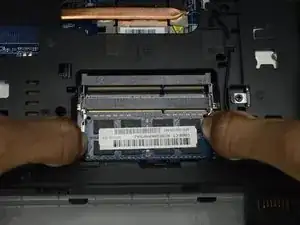

    • Push the two metal tabs on either side of the RAM stick out.

    • The RAM stick will pop up slightly.

  7. HVgtQxlMp1SaTVJl

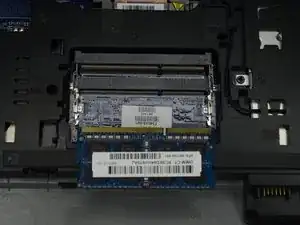

    • Remove the RAM stick.

Abschluss

To reassemble your device, follow these instructions in reverse order.
