HP ProBook 450 G4 Keyboard Replacement

Geschrieben von: Sebastian Dow
  • Kommentare: 1
HP ProBook 450 G4 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

If your HP ProBook 450 G4 keyboard is being unresponsive, there might be debris underneath the keys or there could be a faulty connection between the keyboard and the computer frame. The easiest way to fix these problems would be to clean the underside of your keyboard with an air compressor or to replace your keyboard. Before using this guide, make sure that the Filter Keys accessibility function is turned off. Sometimes this function can accidentally get turned on which can make it seem like your keystrokes are not being registered. To turn this function off, hold the right shift button for eight seconds, or disable it from the access center in the Windows control panel. If the Filter Keys accessibility function was not turned on, follow the instructions in this guide to safely and properly remove your laptop’s keyboard. Before beginning, make sure to power off your laptop and disconnect it from all power sources.

  1. SWqltUhgAnIJRjEW
    SWqltUhgAnIJRjEW
    5oCSysqRrbS4xbq1

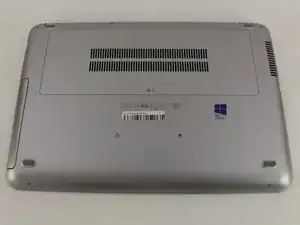

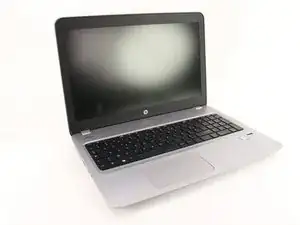

    • Power your laptop off.

    • Flip the laptop over.

    • Orient the laptop so the two vents on the bottom face upward and are further away from you.

  2. qGoW3aTQWgYEXaTU
    qGoW3aTQWgYEXaTU
    bUBe4hCNIe2v3AGS
    Pp3Dn4dXpVQJjqTy

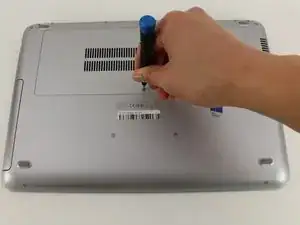

    • Use the Phillips #0 screwdriver to remove the 6.8 mm screw that secures the vent panel to the laptop.

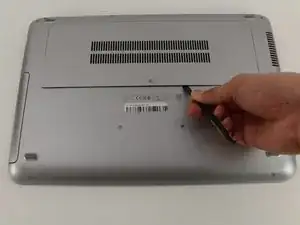

    • Use the spudger to separate the vent panel from the laptop.

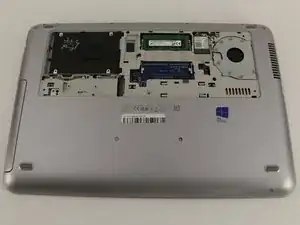

    • Slide the vent panel off the backside of the laptop.

  3. yt4lXiwPqfWGgwXd
    yt4lXiwPqfWGgwXd
    fdEuUVAKbfXcxqZb

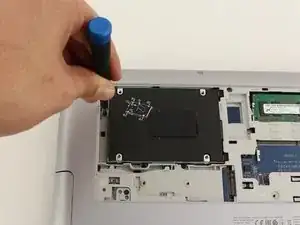

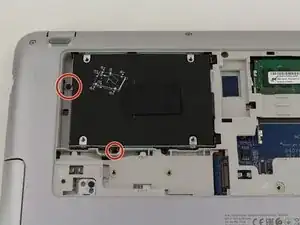

    • Use the Phillips #0 screwdriver to remove the black 3.2mm screw that secures the hard drive to the left side of the laptop.

  4. emQgH4rwpHHQmAnn
    emQgH4rwpHHQmAnn
    mK353MNYBJgetirx

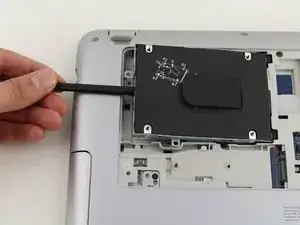

    • Use the spudger to lift the left side of the hard drive up.

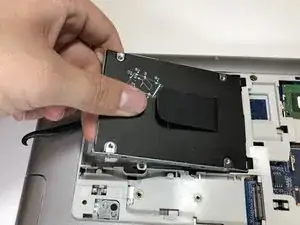

    • Pull the hard drive diagonally to the left to release the hard drive from the laptop.

  5. H6yveGbqImQMZMkW
    H6yveGbqImQMZMkW
    4MViWRInsORnLcDN
    uKgeddLBeFgjPDwR

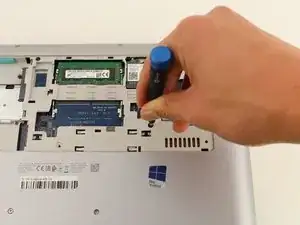

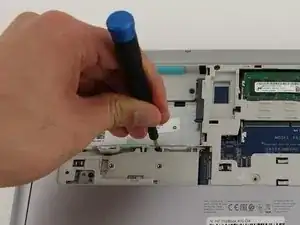

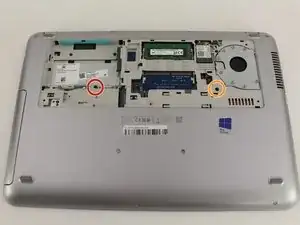

    • Remove the 6.6mm T8 Torx screw located below where the hard drive used to be.

    • Remove the 6.6mm T8 Torx screw located below and to the left of the circular, silver and black fan.

  6. RUkNr6dVABOPLGIP
    RUkNr6dVABOPLGIP
    MrtHkoHGItKDggGF
    C4xyAlHHpAwOZXuE

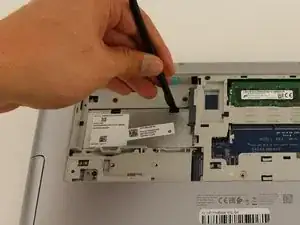

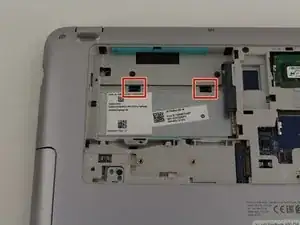

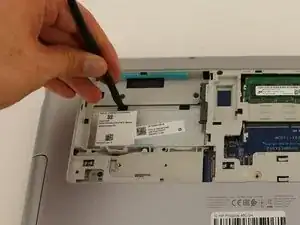

    • Use the spudger to press down on the two black tabs that are underneath where the hard drive used to be.

    • Apply pressure to the black tabs until they release and pop out.

    My tabs(ProBook G4 455) did not release. The keyboard wasn’t attached to them at all. I ended up breaking one tab before simply popping out the keyboard from the other side(followed a YouTube video to figure out this step).

    nicholi1120 -

  7. MmfPAYhY5pCR1vut
    MmfPAYhY5pCR1vut
    JTiRQWUWYRhjpPpO
    oLUrKsfMpOrw1fSP

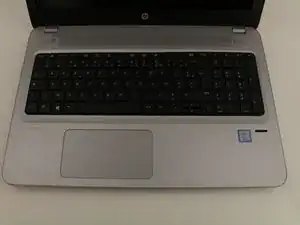

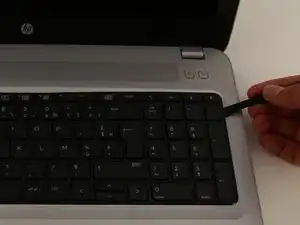

    • Orient the laptop so the keyboard is facing upwards and towards you.

    • Insert the spudger in between the edge of the keyboard and the computer frame.

    • Slide the spudger around the edge of the keyboard until the keyboard is loose.

    • Gently pull the keyboard away from the body of the laptop.

    • Do not pull the keyboard all the way off because there is still a connector cable underneath that needs to be disconnected.

  8. pG3LMQQGipCLgg5S
    pG3LMQQGipCLgg5S
    AL1eJAuEIReBA4ES

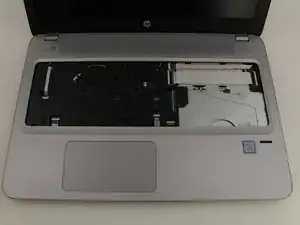

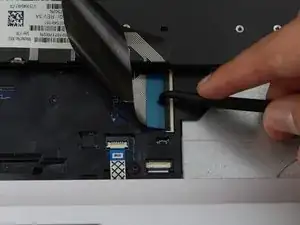

    • Use a spudger to gently lift up the black locking bar on the keyboard connector.

    • Slide the keyboard ribbon out of the connector.

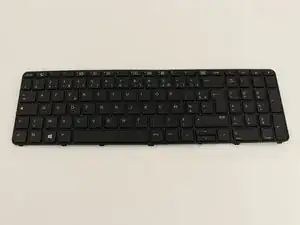

    • Remove the keyboard.

    • To re-attach the keyboard ribbon, slide it into the connector and swing the locking bar down.

Abschluss

To reassemble your device, follow these instructions in reverse order.
