A simple battery replacement
Requirements
- Philips no.1
- Plastic Picks/prying tools
Battery Safe mode
Before removing internal components, you must place the computer in Battery Safe mode. This mode avoids short-circuits or system malfunction by removing power from internal components.
To place the computer in Battery Safe mode, follow these steps:
With the computer turned off and AC adapter connected, press the following key and button combination:
Windows key + Backspace key + Power button.
After the computer powers off, disconnect the AC adapter.
To disengage Battery Safe mode, plug in the AC adapter and press the power button.
Ersatzteile
-
-
7 P1 screws, green are removed the rest are retained
-

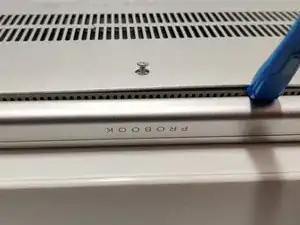

Start with the hinge useing picks to slip inbetween the plastic and a spudger to pry apart
-

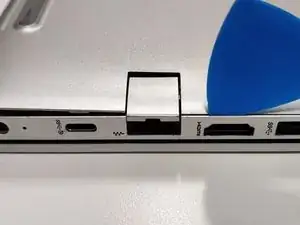

The Ethernet jack is secured inside, do not try to remove
-
-
-

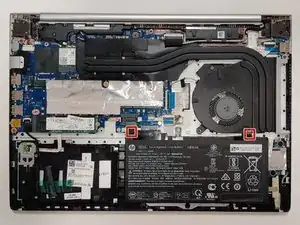

Remove the two P1 Screws and lift the battery out. being carefull to apply even presure across the battery
-
To reassemble your device, follow these instructions in reverse order.
