HP ProBook 4520s Hard Drive Replacement

Geschrieben von: May Lin
  • Kommentare: 6
HP ProBook 4520s Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

15 - 25 Minuten

Einleitung

If your HP ProBook 4520s shuts down without warning, you may have a hard drive error and need to replace the hard drive.

  1. tBH2i3InFjDPXO53
    tBH2i3InFjDPXO53
    GMoSyyP4krdsgKK6

    • Flip the 4520s upside-down with the front toward you.

    • Push the two latches below the battery inwards at the same time.

  2. 2UperWDcKBhwdJOT

    • Remove the battery by holding the latches and sliding the battery away from you.

  3. bgGHZmqC2HYHpxMc
    bgGHZmqC2HYHpxMc
    5dN2EbIGZTMR5XUB

    • Use a Phillips #1 screwdriver to remove three 2mm screws where the battery was located.

  4. Sw2HVH1QqNjLguPw
    Sw2HVH1QqNjLguPw
    vJyIN4c1eJMjDLSf

    • Flip the 4520s over and rotate it so the back is facing you.

    • Use a metal spudger to peel off two rubber caps located on either side of the battery port.

  5. UrXaFch51XZhqKDb

    • Use a Phillips #1 screwdriver to remove the 3mm screws behind the caps.

  6. Q1M5MnamdllGGcZM
    Q1M5MnamdllGGcZM
    TEWakXX1YpaMAayH
    lGVuXnWPmRUqPCy1

    • Rotate the 4520s and then open it with the screen facing you.

    • The switch cover is located above the keyboard. Push the switch cover away from you until it comes loose from the 4520s.

    • Lift the switch cover away from the 4520s and set it aside.

  7. sNhBTh1H1GksWRpN
    sNhBTh1H1GksWRpN
    L2wusQBCVZ51pNMF

    • Use a Phillips #1 screwdriver to remove the two 7mm screws located on either side of the keyboard panel.

  8. 1yRXCgwQI1uFASlH

    • Slide the keyboard panel away from you to free it from the 4520s.

    • Do not yank the keyboard panel away from the 4520s. This may damage the cable.

    Does keyboard slide away or to right/left? thought it was to the right.

    Heidi Bell -

    Keyboard goes directly away

    Robert Spencer Harrison -

  9. WrXSuLDwgy5WPrZB
    WrXSuLDwgy5WPrZB
    vQ1NuSHrd3iZaBuQ

    • Gently raise up the keyboard and flip it over to reveal a ribbon cable.

    • Release the ribbon cable by carefully lifting the black tab upwards, one side at a time.

    • Remove the cable and lift the keyboard panel up. Set it aside.

    • When reassembling, feed the ribbon cable into the port. Press down on the tab to pinch the cable in place.

  10. nHgdpZNVIABsDNdd
    nHgdpZNVIABsDNdd
    DeBSFBXIXy6EkE5V

    • Use a Phillips #1 screwdriver to remove the three 3mm screws along the top of the palm rest.

  11. ObeOxMXYQvZYDjYF
    ObeOxMXYQvZYDjYF
    DDGEhYn33uF2Arnc

    • Slide the palm rest to the right to release it and then rotate it back gently.

    • Do not yank the palm rest away from the 4520s. This may damage the cable.

  12. bcBhnqQENkHac6U4
    bcBhnqQENkHac6U4
    dt5xTRA2Wmk3ODY1

    • Release the ribbon cable by opening the black hinge on the port using a spudger.

    • Remove the cable and set the palm rest aside.

  13. U3QDvRiLCfTIGLIM
    U3QDvRiLCfTIGLIM
    lTvJbmMr1RgOlvTA
    qGBM1h4HrnLDGotP

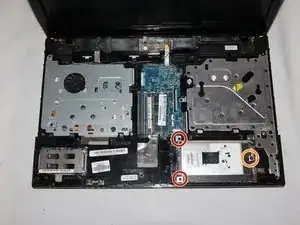

    • The hard drive is contained in the housing on the lower right.

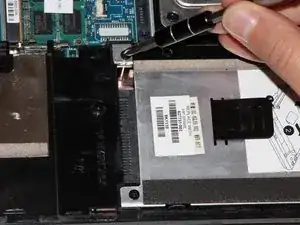

    • Remove two 5mm screws on the left using a Phillips #1 screwdriver.

    • Fully loosen the captive screw on the right using a Phillips #1 screwdriver.

  14. AjLcuWc1bKHtOUiK
    AjLcuWc1bKHtOUiK
    qHGrByseAhd3EBLt

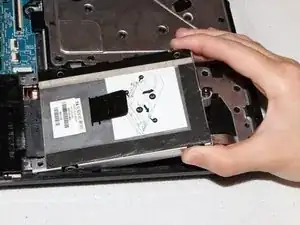

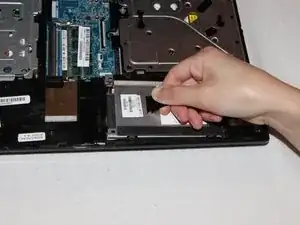

    • Disconnect the hard drive by pulling the tab to the right.

    • Lift the housing out from the 4520s.

  15. KnmCdGERPs5t1ZAE
    KnmCdGERPs5t1ZAE
    j4v3ZeBDKpqMYeqY

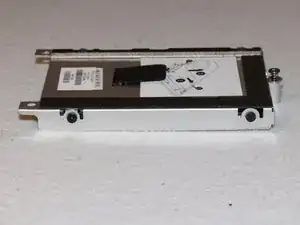

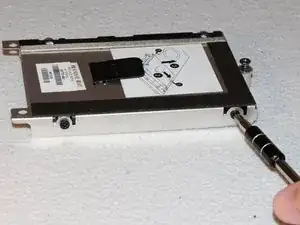

    • Use a Phillips #1 screwdriver to remove the four 3mm screws on the sides of the housing.

  16. RcqQgVOnyoiGWdcC

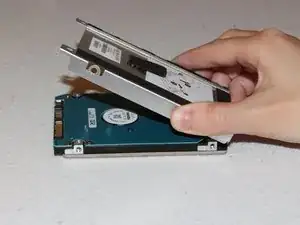

    • Lift the housing away from the hard drive.

    • The hard drive is 2.5".

Abschluss

To reassemble your device, follow these instructions in reverse order.
