Learn to replace the palm rest of the HP ProBook 4520s. The palm rest includes the touchpad which is used to move the cursor on the screen.
Werkzeuge
-
-
Flip the 4520s upside-down with the front toward you.
-
Push the two latches below the battery inwards at the same time.
-
-
-
Flip the 4520s over and rotate it so the back is facing you.
-
Use a metal spudger to peel off two rubber caps located on either side of the battery port.
-
-
-
Rotate the 4520s and then open it with the screen facing you.
-
The switch cover is located above the keyboard. Push the switch cover away from you until it comes loose from the 4520s.
-
Lift the switch cover away from the 4520s and set it aside.
-
-
-
Use a Phillips #1 screwdriver to remove the two 7mm screws located on either side of the keyboard panel.
-
-
-

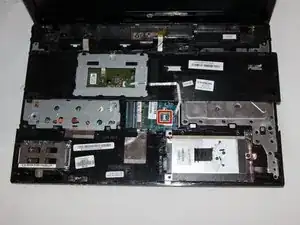

Gently raise up the keyboard and flip it over to reveal a ribbon cable.
-
Release the ribbon cable by carefully lifting the black tab upwards, one side at a time.
-

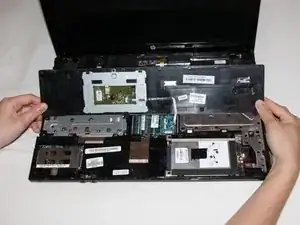

Remove the cable and lift the keyboard panel up. Set it aside.
-
-
-

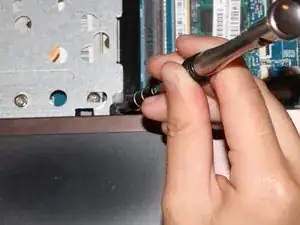

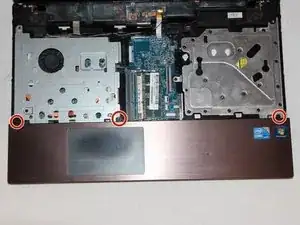

Use a Phillips #1 screwdriver to remove the three 3mm screws along the top of the palm rest.
-
-
-

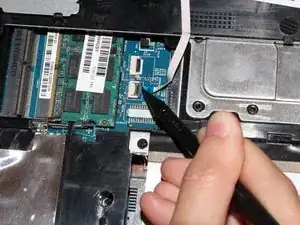

Release the ribbon cable by opening the black hinge on the port using a spudger.
-

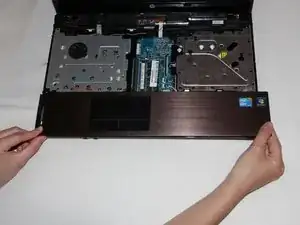

Remove the cable and set the palm rest aside.
-
To reassemble your device, follow these instructions in reverse order.
