Einleitung

If your laptop screen is cracked or appears dark while the computer is running, replace the screen.

  1. tBH2i3InFjDPXO53
    tBH2i3InFjDPXO53
    GMoSyyP4krdsgKK6
    • Flip the 4520s upside-down with the front toward you.

    • Push the two latches below the battery inwards at the same time.

  2. 2UperWDcKBhwdJOT
    • Remove the battery by holding the latches and sliding the battery away from you.

  3. bgGHZmqC2HYHpxMc
    bgGHZmqC2HYHpxMc
    5dN2EbIGZTMR5XUB
    • Use a Phillips #1 screwdriver to remove three 2mm screws where the battery was located.

  4. Sw2HVH1QqNjLguPw
    Sw2HVH1QqNjLguPw
    vJyIN4c1eJMjDLSf
    • Flip the 4520s over and rotate it so the back is facing you.

    • Use a metal spudger to peel off two rubber caps located on either side of the battery port.

  5. UrXaFch51XZhqKDb
    • Use a Phillips #1 screwdriver to remove the 3mm screws behind the caps.

  6. Q1M5MnamdllGGcZM
    Q1M5MnamdllGGcZM
    TEWakXX1YpaMAayH
    lGVuXnWPmRUqPCy1
    • Rotate the 4520s and then open it with the screen facing you.

    • The switch cover is located above the keyboard. Push the switch cover away from you until it comes loose from the 4520s.

    • Lift the switch cover away from the 4520s and set it aside.

  7. 4mdkZWJPMfvayQPx
    4mdkZWJPMfvayQPx
    kAVUc3kKsrIZxRtL

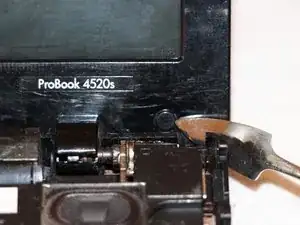

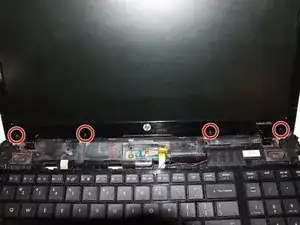

    • Use a metal spudger to remove four rubber caps at the bottom of the screen border.

  8. n6HDoNnthHWU6vrr
    n6HDoNnthHWU6vrr
    USrLx4C2QpoXitAV

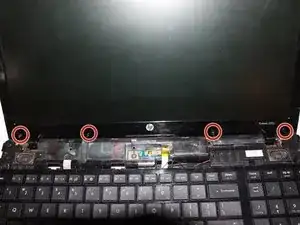

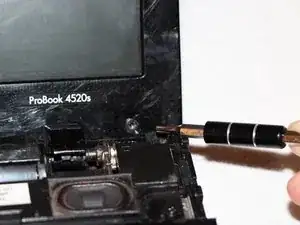

    • Use a Torx (T9) head screwdriver to remove the four 5mm screws beneath the rubber caps.

  9. RVwHKcGStqWXbjAY
    RVwHKcGStqWXbjAY
    cvM2XIlHisHVL3ic
    XVmMyPSmNiFo5fnV

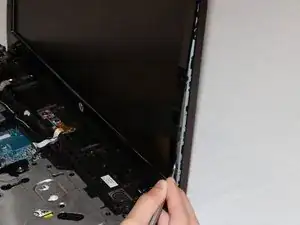

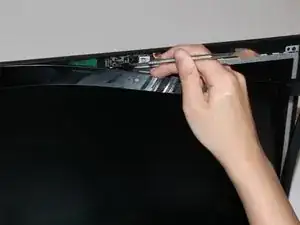

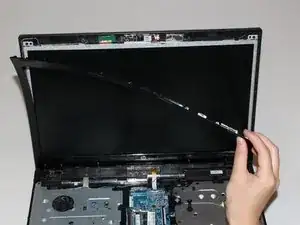

    • Pry open the tabs behind the border of the screen using a metal spudger.

    • Set the border of the screen aside.

  10. wsUtpXgCUPOnWNrN
    wsUtpXgCUPOnWNrN
    G2yJahRxJBHgg4VR

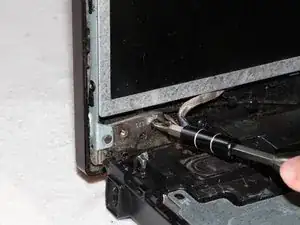

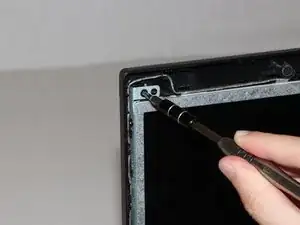

    • Use a Torx (T9) head screwdriver to remove two 5mm screws above the screen, and two more screws below it.

    • The bottom set of screws is installed on the innermost screw holes.

  11. f3lNx1lOXFAPwhMB

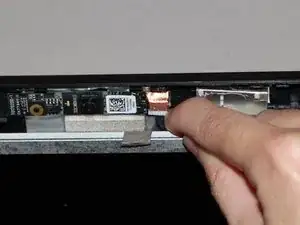

    • Above the screen is a bronze port with a cable connected to it. Disconnect the cable using a metal spudger or your finger.

  12. WYcfZHe5aYYFd3Um

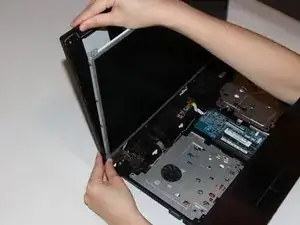

    • Gently push the back cover away.

  13. 4uHRAulIxpSYyeEL
    4uHRAulIxpSYyeEL
    e1jgsAmOakdNnIDU
    WpKukFBeNONr6BOL

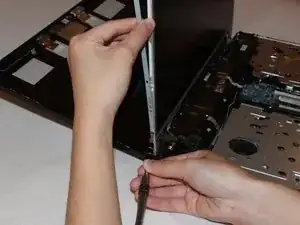

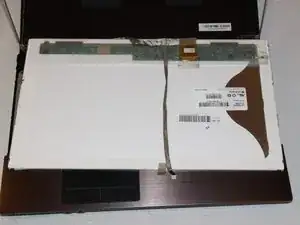

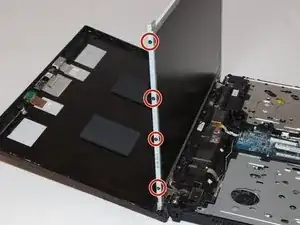

    • Use a Phillips (PH1) head screwdriver to remove eight 2mm screws from the screen. Four of the screws will be on the left side and four will be on the right.

    • Place the screen face down.

  14. URxrJNrwLF1gfIYJ
    URxrJNrwLF1gfIYJ
    EvrSZyGgDWXNZN1t
    Se5RoTuMsCCUwS62

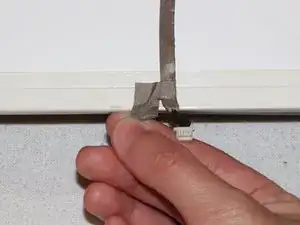

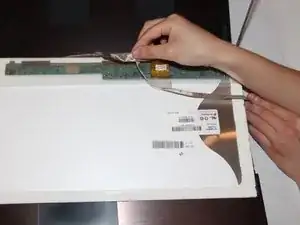

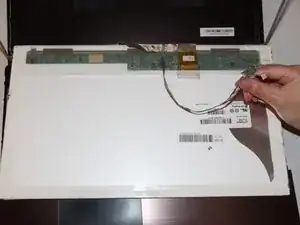

    • Peel the ribbon cable away from the screen.

  15. tNbukmMoFqVZJGQu
    tNbukmMoFqVZJGQu
    TUGLCAAWFXESLLsH

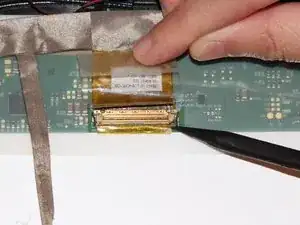

    • To open the clamp for the ribbon cable, use a spudger to pry up the metal bar securing it to the screen.

    • Disconnect the cable after freeing it from the metal bar

Abschluss

To reassemble your device, follow these instructions in reverse order.
