HP ProBook 4530s RAM Replacement

Geschrieben von: Drew Canada
  • Kommentare: 0
HP ProBook 4530s RAM Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

1 - 5 Minuten

Einleitung

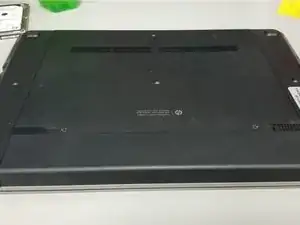

  1. eJ5E4kofoNIwEEAH

    • Start by flipping the laptop over onto its back.

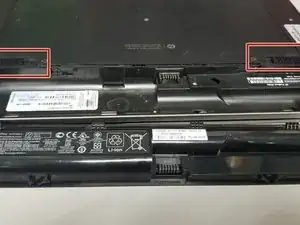

  2. wU22ZPl4URnsX3dU

    • Press in on both sides, the switches will release the battery.

    • The battery will pop out slightly, allowing you to pull it out.

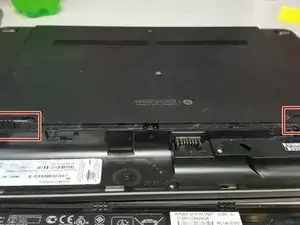

  3. EuibYwsL6CiJchIE

    • Press in on both switches, while pushing onto the plastic panel behind them.

    • The panel should slide out.

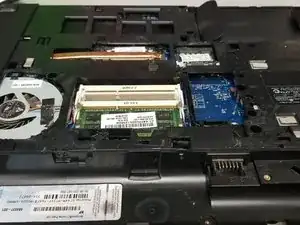

  4. U56IDhMCQEncdjFJ
    U56IDhMCQEncdjFJ
    ST5GalG2BImUPvPi
    PnI2AsIJQh1OeLrg

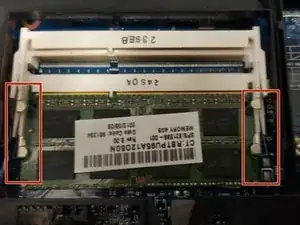

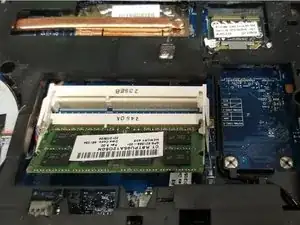

    • Locate the RAM slightly to the center-left.

    • Press outward on the metal retention arms for the RAM.

    • The RAM should pop upward slightly.

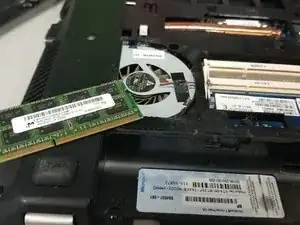

  5. xE1ee2rSnLNjwDlU

    • Grab the RAM gently and remove at a 45 Degree angle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
