HP ProBook 4530s WiFi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

1 - 5 Minuten

Einleitung

This will teach you the easiest way I found to remove and replace the WiFi NIC in the ProBook 4530s.

  1. KHy2EPX1XaStOchm
    KHy2EPX1XaStOchm
    kOY5xHWXqbJAYIdC

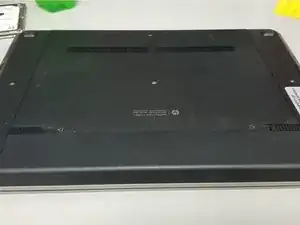

    • Start by flipping over the laptop onto its back.

  2. 1tonTTXZXTQGYZC5

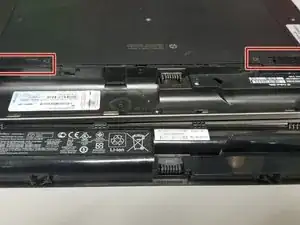

    • Push both switches inward. The battery should pop out a slight amount.

    • Pull out the battery.

  3. cDMvcwpUibKC2IHA

    • Press on both of the battery switches then push on the back panel forward.

    • It should pop out slightly.

    • Lift and slide the panel off.

  4. 5rh6YVZDfSpIFiWo
    5rh6YVZDfSpIFiWo
    ZsdtoCQQCxWaSuM1

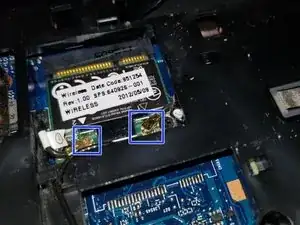

    • Locate the WiFi card outlined in red.

    • The golden connectors will need to be popped off. They are marked in blue.

    • Be very careful. If these connectors break, you will have to buy entirely new wires and connectors.

    • Use a nail, a flat-head screwdriver, anything that will be able to pop off the connector gently.

  5. hEJ6CIPISONivRiH
    hEJ6CIPISONivRiH
    nZIAGpSiyZKUJ4wD
    PNEaIHRj3D2TAvVx

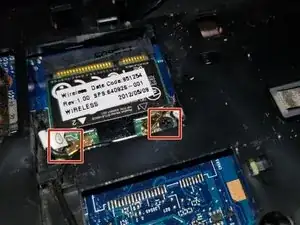

    • Remove the two screws that secure the card down.

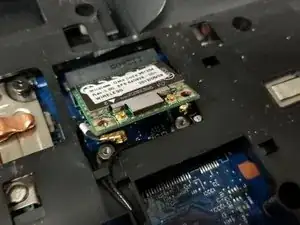

    • The card should pop up at a 45 degree angle.

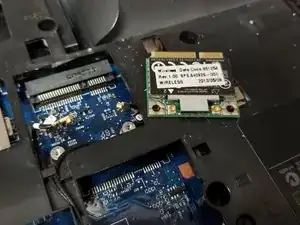

    • Pull the card straight out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
