Einleitung
This guide will show how to safely remove the fan. In order to get to the fan however, you will need to carefully remove the heat shield covering the fan.
Werkzeuge
-
-
Slide the two release latches on either side of the battery.
-
Gently tilt the battery upward and remove it from its socket.
-
-
-
Turn the computer so the bottom is facing towards you.
-
Remove the one 3.0 mm Phillips PM2.0x3.0 security screw.
-
Slide the release latches then pull the door towards you. Lift the door away to completely remove it.
-
-
-

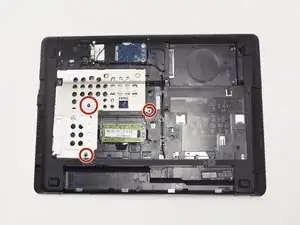

Remove the heat shield by unscrewing three 6.0 mm Phillips PM2.5x 6.0 screws securing it.
-
Slide the heat shield towards the innards of the computer.
-

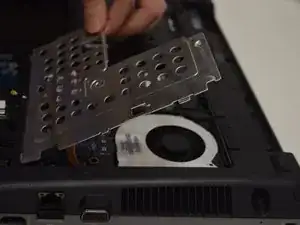

Gently lift the heat shield so it is at an angle then remove it from the computer.
-
-
-

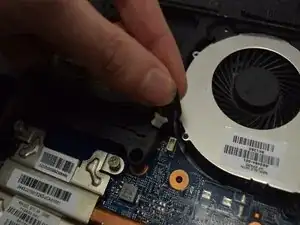

Disconnect the cable that connects to the system board.
-
Remove two 5.0 mm Phillips PM2.5x5.0 screws securing the fan.
-

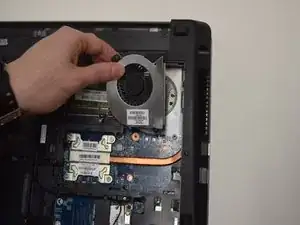

Lift and remove the fan from the computer.
-
To reassemble your device, follow these instructions in reverse order.
