HP ProBook x360 11 G5 EE Charging Port Replacement

Geschrieben von: Michelle Pina
  • Kommentare: 1
HP ProBook x360 11 G5 EE Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 25 Minuten

Einleitung

If your HP Probook x360 11 G5 EE laptop does not charge unless the adapter is positioned in a specific position, the charging port may need to be replaced. The charging port is important because it charges the battery to supply the power to your laptop.

  1. QEIOWsPCkDROf5QM
    QEIOWsPCkDROf5QM
    OX16UUCaX1WeBaDK
    2DYjVMSYnyqUauVH

    • Remove the 4.1 mm screws with a T5 Torx screwdriver.

    • Remove the 4.1 mm screws using a JIS #0 screwdriver.

  2. 255ayd2RgeXNpNJl

    • Use an opening pick to pry the corners of the keyboard deck.

  3. PgF6HxJPCtb1uDhw
    PgF6HxJPCtb1uDhw
    AZtYgHyrIVwadTIW
    6tftvJuTjRyU6OG4

    • Use an opening pick or opening tool to pry around the sides of the keyboard assembly.

  4. W5qnneYFDrJrGMQO
    W5qnneYFDrJrGMQO
    OqXBXGsQJggXi5Gh
    ZVIUeykZdRN3UXMA

    • Lift the keyboard assembly to expose two ribbon cables.

    • Lift the two plastic tabs that hold the cables in place on the motherboard

    • Slide the ribbon cables out of each connector.

  5. dLUm1qRNDq2VoFRk
    dLUm1qRNDq2VoFRk
    4d4MTWTHinrXuZoL

    • Remove the keyboard assembly from the rest of the computer.

  6. AuuYggoixAT2lYJm
    AuuYggoixAT2lYJm
    oOZiXmR25OjXtnQO

    • Remove the four 3 mm screws from the battery with the JIS #0 screwdriver.

  7. QIlxwe1aUSvmS1bS
    QIlxwe1aUSvmS1bS
    2Yj3aGUgALyrdlFR
    PblTuPxPq4dZiZW1

    • Pry the battery up from the laptop using an opening pick.

    • Lift the battery out of its place.

  8. Le6BjKL3oiDqnrdG
    Le6BjKL3oiDqnrdG
    5IYHxFkBmBZMQXdv

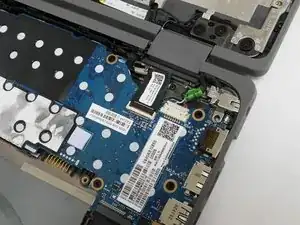

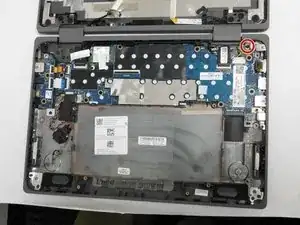

    • Remove the single 3 mm screw from the charging port using a T5 Torx screwdriver.

  9. dkdUO1UWcLD5KCJ1
    dkdUO1UWcLD5KCJ1
    mGacJCULRANKycUf
    XtTuNdD2BNM6ffaT

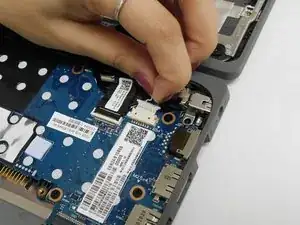

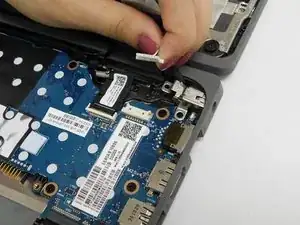

    • Disconnect the charging port wire from the motherboard.

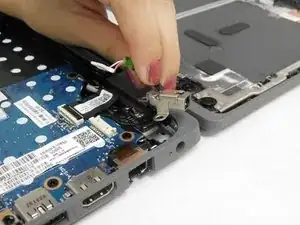

    • Remove the charging port from your device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
