HP ProBook x360 11 G5 EE Display Panel Replacement

Remove the 4.1 mm screws with a T5 Torx screwdriver.

Remove the 4.1 mm screws using a JIS #0 screwdriver.

Use an opening pick to pry the corners of the keyboard deck.

Use an opening pick or opening tool to pry around the sides of the keyboard assembly.

Lift the keyboard assembly to expose two ribbon cables.

Lift the two plastic tabs that hold the cables in place on the motherboard

Slide the ribbon cables out of each connector.

Remove the keyboard assembly from the rest of the computer.

Remove the four 3 mm screws from the battery with the JIS #0 screwdriver.

Pry the battery up from the laptop using an opening pick.

Lift the battery out of its place.

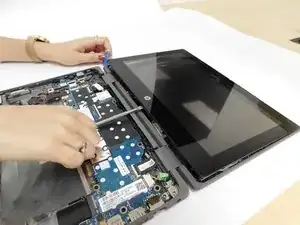

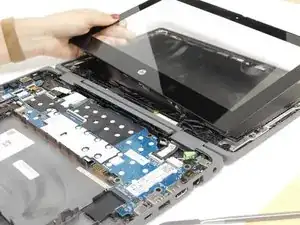

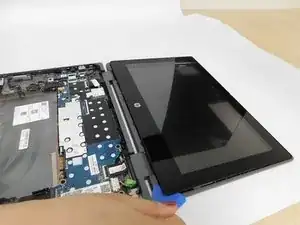

Use the opening pick and metal spudger to pry open the display cover.

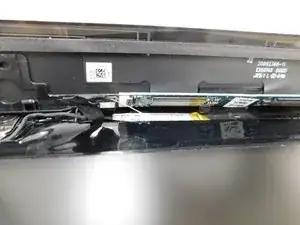

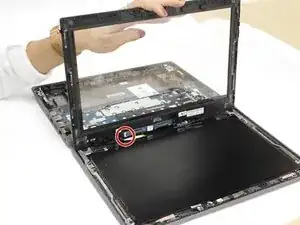

Remove the ribbon wire that is attached to the display cover to fully detach it.

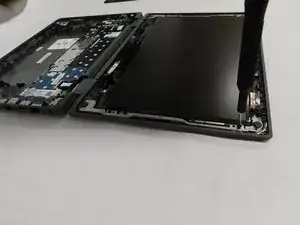

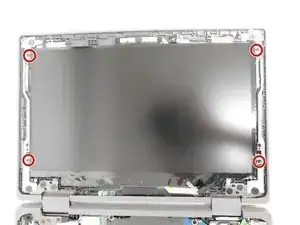

Remove the four 2.3 mm screws holding the screen in place with the JIS #0 screwdriver.

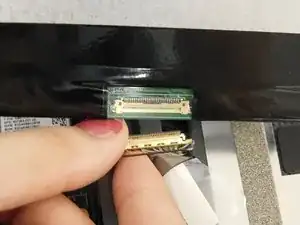

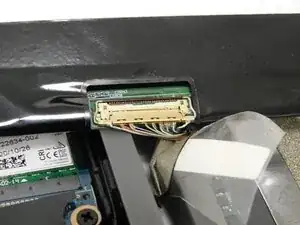

Lift the screen to disconnect the wire attaching it to the laptop.

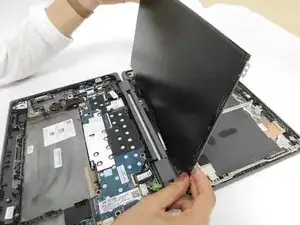

Remove the display panel from the rest of the laptop.
