HP ProOne 600 G1 Fan Replacement

Geschrieben von: Victor Chacon
  • Kommentare: 0
HP ProOne 600 G1 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If your computer frequently gets very hot and overheats you may need to replace the fan. Before performing any work remember to completely turn off your computer and disconnect it from any power source.

  1. vcNPplHdEXWAsNDu
    vcNPplHdEXWAsNDu
    jeYdHvufghaDW4LV

    • Push the unlock tabs on the back of the monitor in and towards each other while sliding the back cover up.

  2. L4vXccDFMw45kHQw
    L4vXccDFMw45kHQw
    WcZNIweZRBPZBgA4

    • Loosen the two 1/2" screws , with the T15 Torx Screwdriver, on each side of the stand. Remove stand.

  3. NL5JCmIVFVvb6C1U

    • Take out the single 3/8" screw, with the T15 Torx Screwdriver, from the middle of the backplate.

  4. 6fEjQud3xLXXebwP

    • Remove the backplate by pulling it back towards you.

    • Small plastic tabs hold in the backplate, pull these up to remove it.

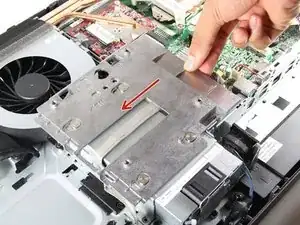

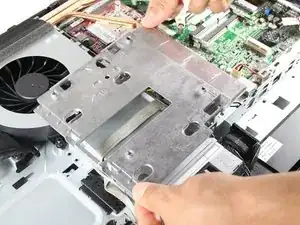

  5. XUPp2ZpAGsFWyees
    XUPp2ZpAGsFWyees
    xiTBqOB2sABPeo34
    l1MiSob1TDBRLMUO

    • Remove both 3/8" screws using the T15 Torx Screwdriver from the metal plate, and slide the plate to the left.

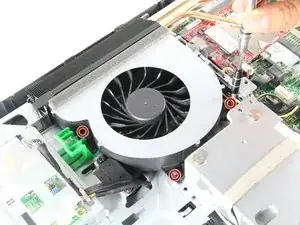

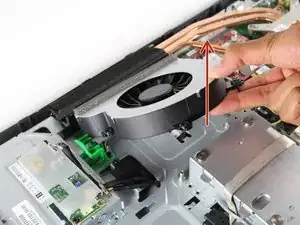

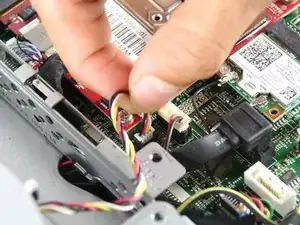

  6. rRNQP4csALIcQgyy
    rRNQP4csALIcQgyy
    iGwXFP5PrsaCZkSQ
    DTYjtUyelmL2DNBY

    • Unscrew three surrounding 1/4" screws, with the T15 Torx Screwdriver. Pull out the fan and attached wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
