Einleitung
The maximum dimensions of a new solid state drive are 100.5 x 69.85 x 7.0mm. Before performing any work, always remember to completely turn off and disconnect your computer from any power source.
Werkzeuge
-
-

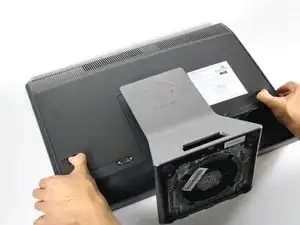

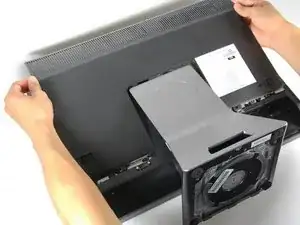

Push the unlock tabs on the back of the monitor in and towards each other while sliding the back cover up.
-
-
-

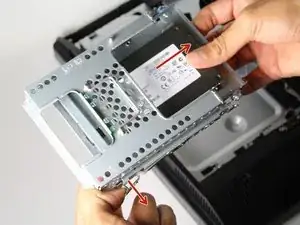

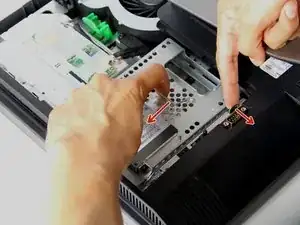

Pull up on the hard drive bay handle and push it to the left while holding back the metal tab on the bottom.
-
-
-

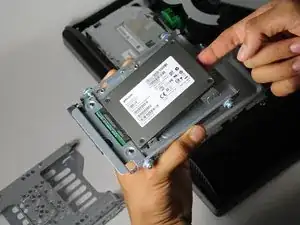

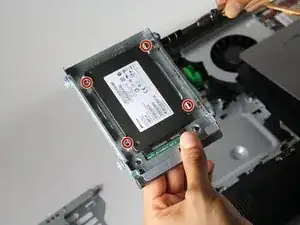

Remove the four 5/16" side screws, with the T15 Torx Screwdriver, and gently take out the drive.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
