HP ProOne 600 G1 Wi-Fi Adapter Replacement

Geschrieben von: Janelle Layman
  • Kommentare: 0
HP ProOne 600 G1 Wi-Fi Adapter Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

8 - 10 Minuten

Einleitung

If your computer can no longer connect to a wireless network it may mean you have a broken Wi-Fi adapter. Before performing any work, always remember to completely turn off and disconnect your computer from any power source.

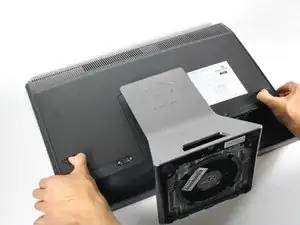

  1. vcNPplHdEXWAsNDu
    vcNPplHdEXWAsNDu
    jeYdHvufghaDW4LV

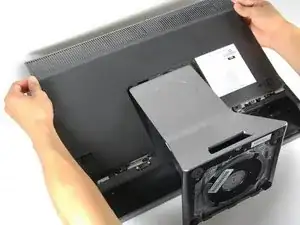

    • Push the unlock tabs on the back of the monitor in and towards each other while sliding the back cover up.

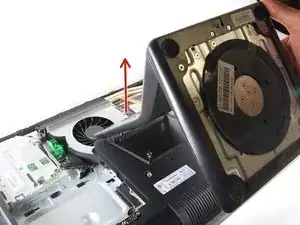

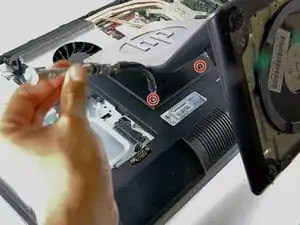

  2. L4vXccDFMw45kHQw
    L4vXccDFMw45kHQw
    WcZNIweZRBPZBgA4

    • Loosen the two 1/2" screws , with the T15 Torx Screwdriver, on each side of the stand. Remove stand.

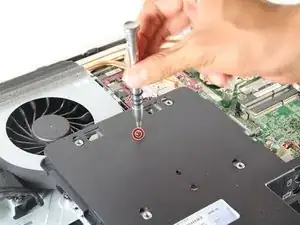

  3. NL5JCmIVFVvb6C1U

    • Take out the single 3/8" screw, with the T15 Torx Screwdriver, from the middle of the backplate.

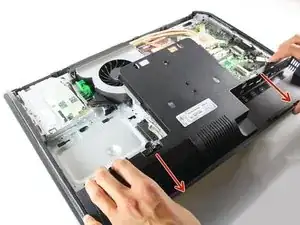

  4. 6fEjQud3xLXXebwP

    • Remove the backplate by pulling it back towards you.

    • Small plastic tabs hold in the backplate, pull these up to remove it.

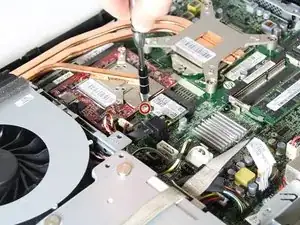

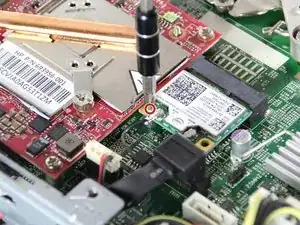

  5. jKRPYbUmEanwlFGt
    jKRPYbUmEanwlFGt
    XHo3nhnKFTDNBZOD

    • Locate the Wi-Fi adapter at the top right corner of where the stand once was.

    • Unscrew the screws using the Philips #1 Screwdriver.

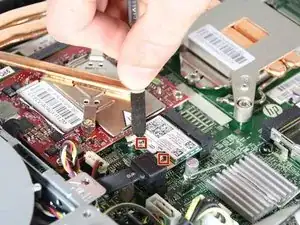

  6. TY3ZfNQDMxPeRXkR

    • Remove wire tabs from the left side of the Wi-Fi adapter.

    • Remove the adapter

Abschluss

To reassemble your device, follow these instructions in reverse order.
